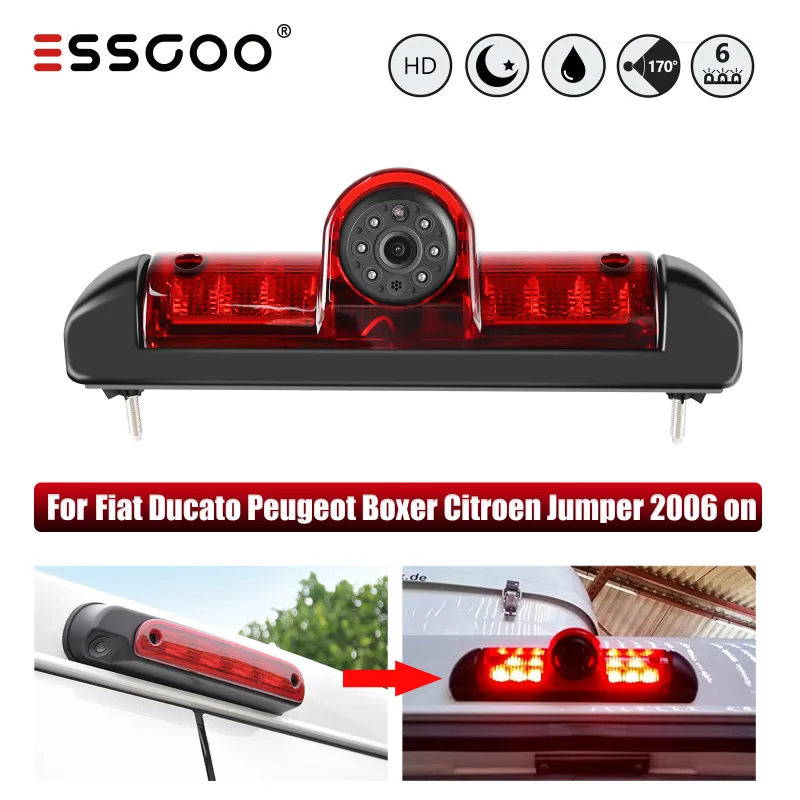

ESSGOO 3rd Brake Light HD Rear View Backup Camera IR Night Vision For Fiat Ducato Peugeot Boxer Citroen Jumper 2006-2015

Vehicle-specific reversing camera brake light for:
Fit for Citroen Jumper 2006-2015
Fit for Fiat Ducato 2006-2015
Fit for Peugeot Boxer 2006-2015

1. Simple assembly, the third brake light on the roof edge is replaced
2. Good night vision thanks to 6x powerful infrared diode sensors
3. 8m special cable
Camera connection: 4-pin with anti-vibration screw thread
Monitor connection: RCA plug
4. Continuous operation possible as well as shifting with reverse gear
5. Color camera

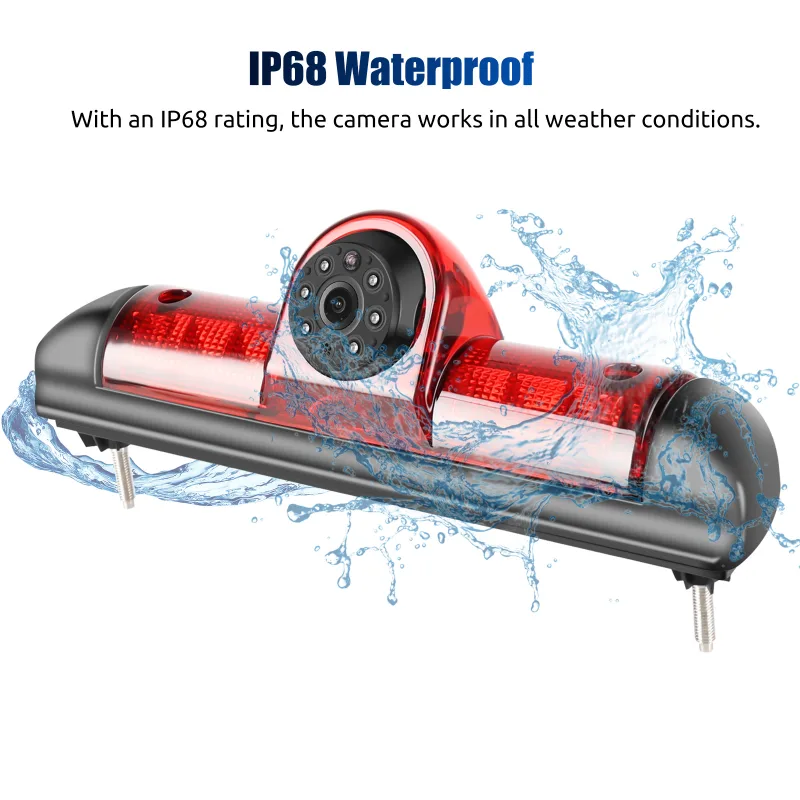

6. IP68 waterproof!

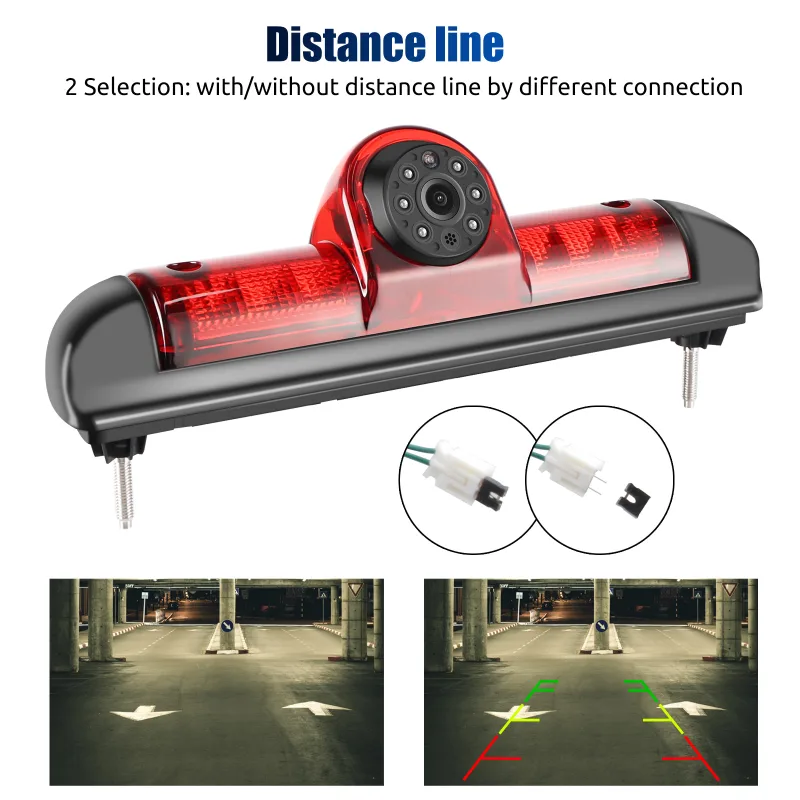

7. Distance line: optional

Installation instructions:
Remove the original brake light
Reinstall camera with brake light
Connect the power supply cable to the reversing light
Lay the video cable in the vehicle to the monitor

Technical specifications:
Camera: reversing camera for Fiat Ducato
Image sensor: 1/4 7440H CMOS
Resolution: 733 * 493 pixels
TV lines: 600TVL

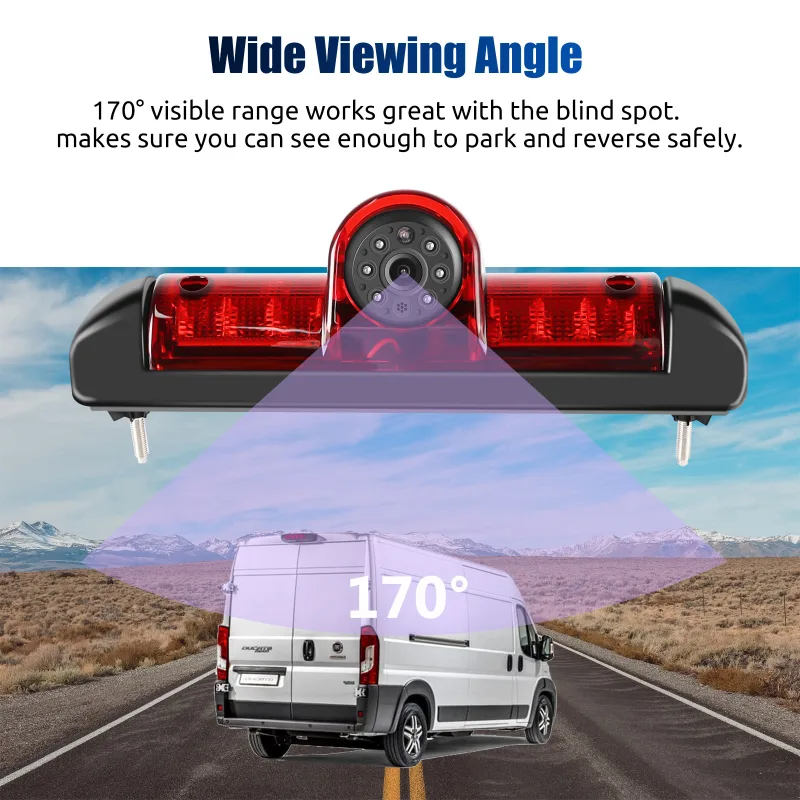

Detection angle: 170 °
Material camera housing: plastic
Minimum lighting: 0.1 lux
Video standard: PAL/NTSC
Voltage: 12V
Ambient temperature range: -20 ° C ~ +70 ° C
Power consumption: <2 W

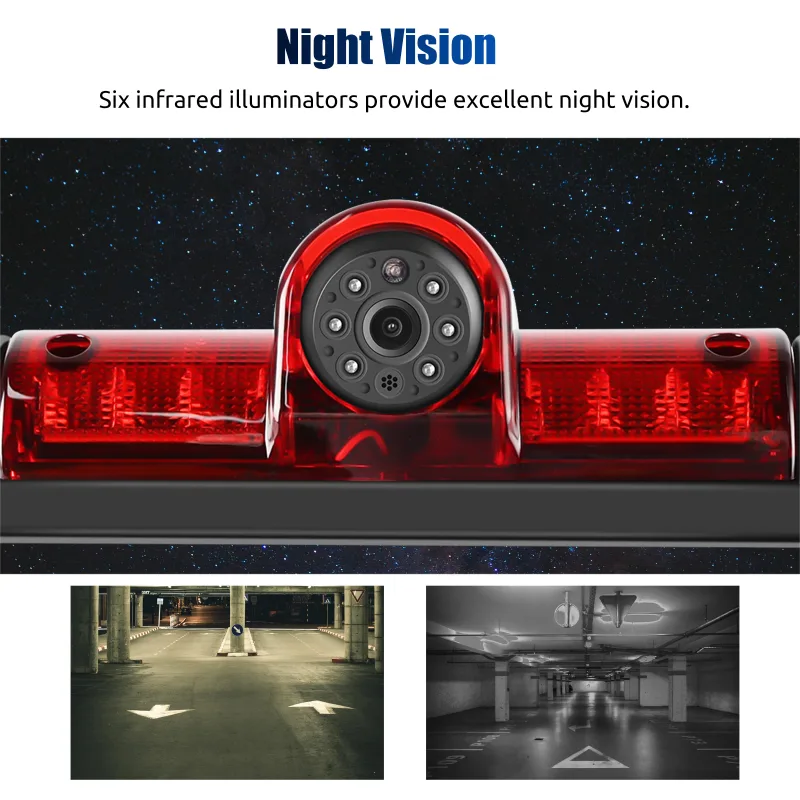

Night vision: 6 infrared diodes with brightness sensor
IP68 waterproof
Distance lines: optional
including 8m cable

Package included:
1x reversing camera
1x 8m cable
1x adapter cable
1x power cable

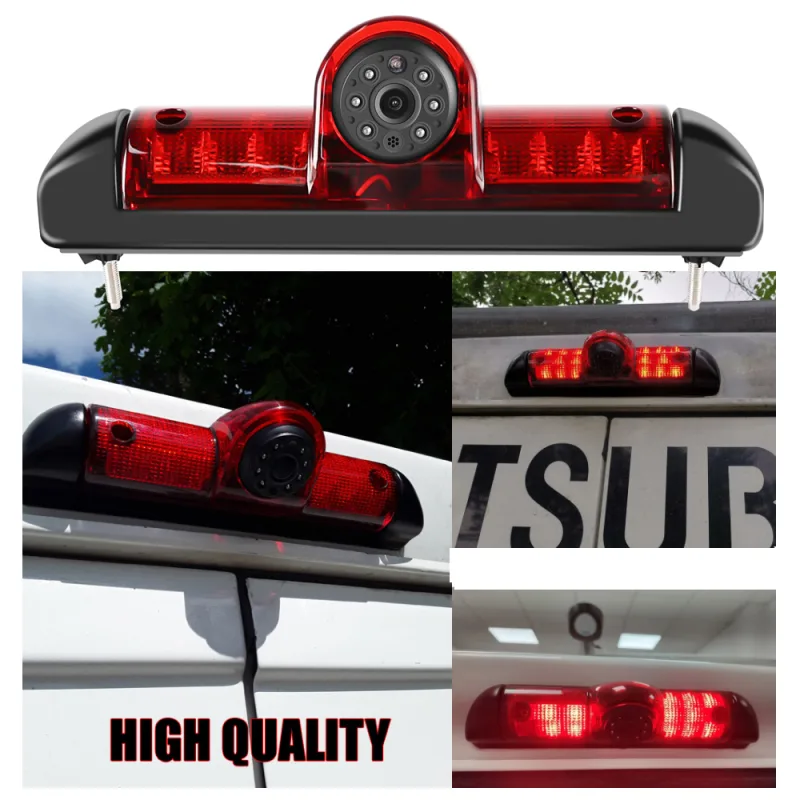

Detail Image
