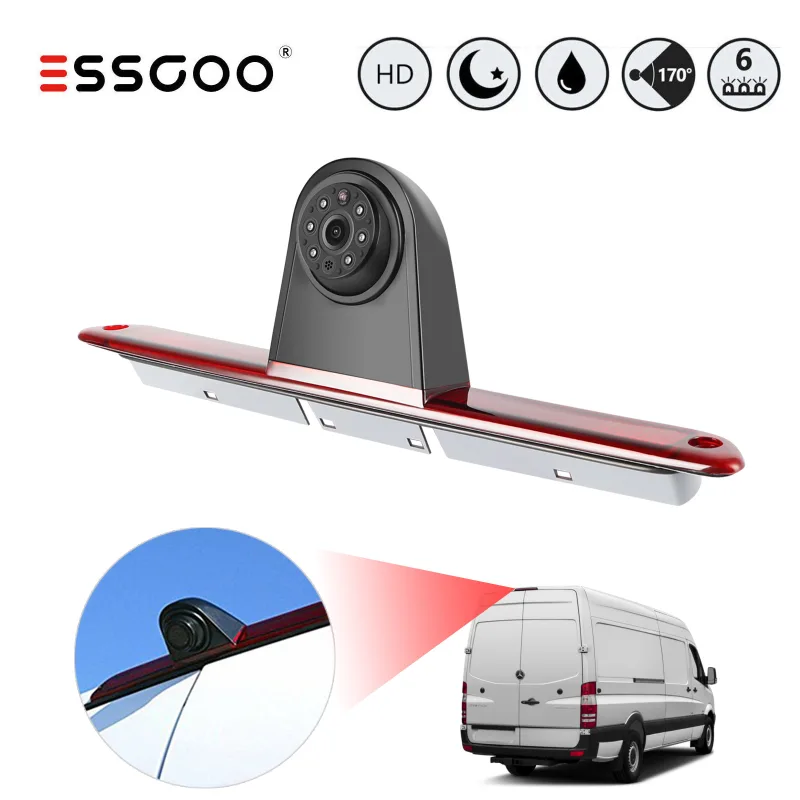

ESSGOO 3rd Brake Light Cover HD Rear View Backup Camera Night Vision For Mercedes-Benz Sprinter W906 W907 VW Crafter 2006-2018

Vehicle-specific reversing camera brake light Cover for:
For Mercedes Sprinter W906 2006-2018
For Mercedes Sprinter W907 from 2018
For Mercedes Sprinter W910 from 2018
For VW Crafter 1st generation 2006-2016

【Set】 Reversing camera van with 3rd brake light (LED lighting) for Sprinter W906 VW Crafter.
【Transporter】 The cameras is the perfect solution in the sprinter class. Optimized camera housing for all vans, Sprinter W906 VW Crafter Reversing camera Supports you in maneuvering your van safely in confusing urban areas or on the campsite.
【Quality camera from CCD】 1/3 color HD CCD sensor, NTSC, resolution 720 x 480 pixels, detection angle: 170 degrees, voltage 12V, Camera lens can be flexibly adjusted for optimal visibility.
【Installation without Drilling or Caulking】 Top quality with CCD lens. Perfect view even at night. Protection class IP68, waterproof, Viewing angle 170 degree wide-angle lens.

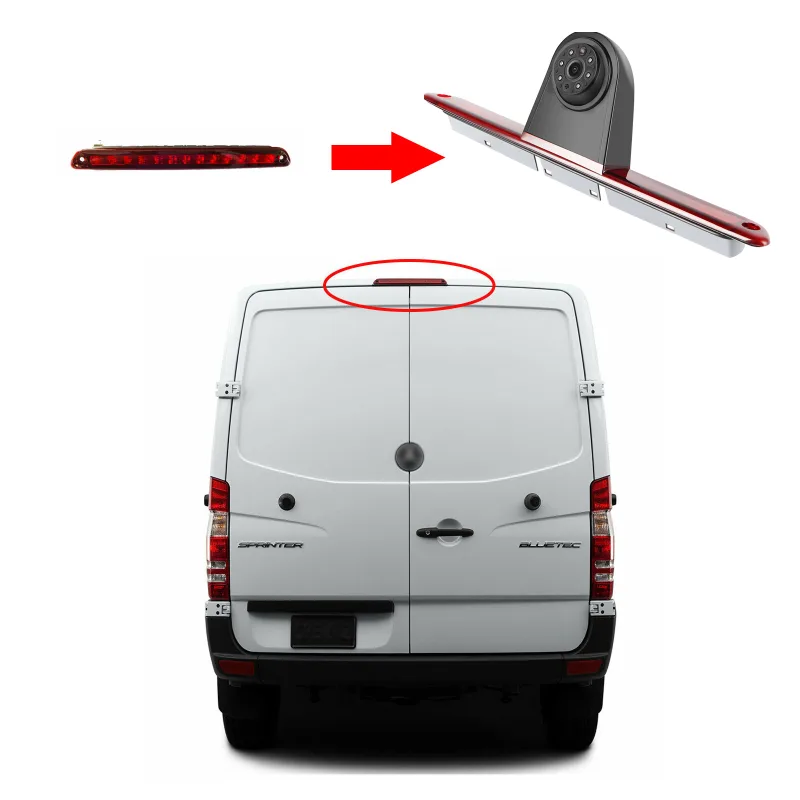

【Easy installation】 Take off the outer cover of the 3rd brake light and insert the special Sprinter W906 VW Crafter rear view camera. The connection cable is routed into the vehicle interior, where the supplied 8m cable with anti-vibration screw plug is connected.

Technical Specifications:
Camera: rear view camera for Sprinter/Crafter
Image sensor: 1/3 PC2099CMOS
Resolution: 720*480 pixels
TV lines: 700TVL

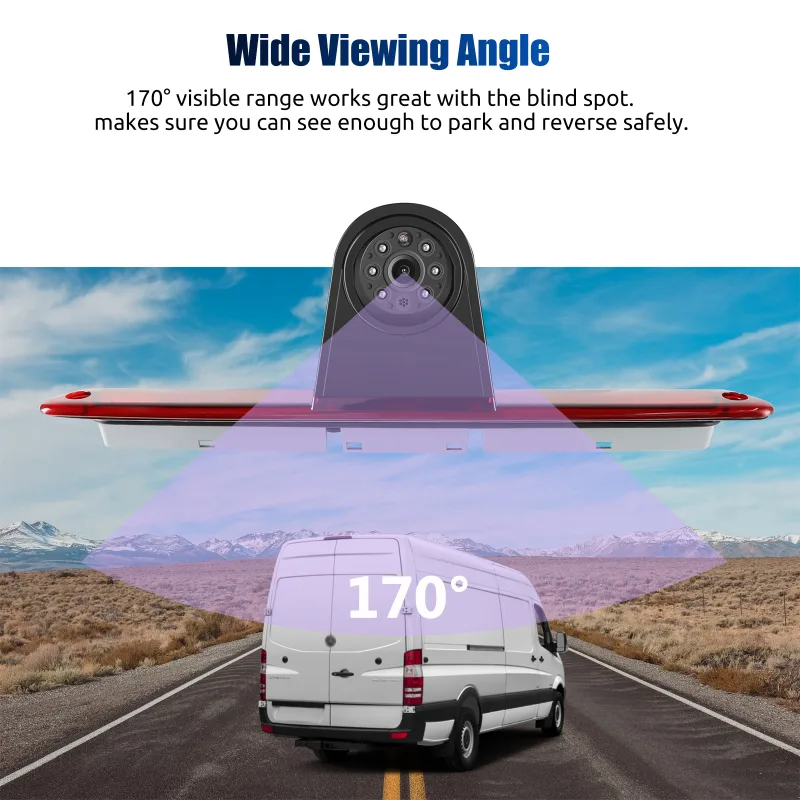

Angle of detection: 170°
Material camera body: plastic
Minimum illumination: 0.1 lux
Video Standard: PAL Voltage: 12V
Ambient temperature range: -20°C ~ 75°C
Power Consumption: <2W

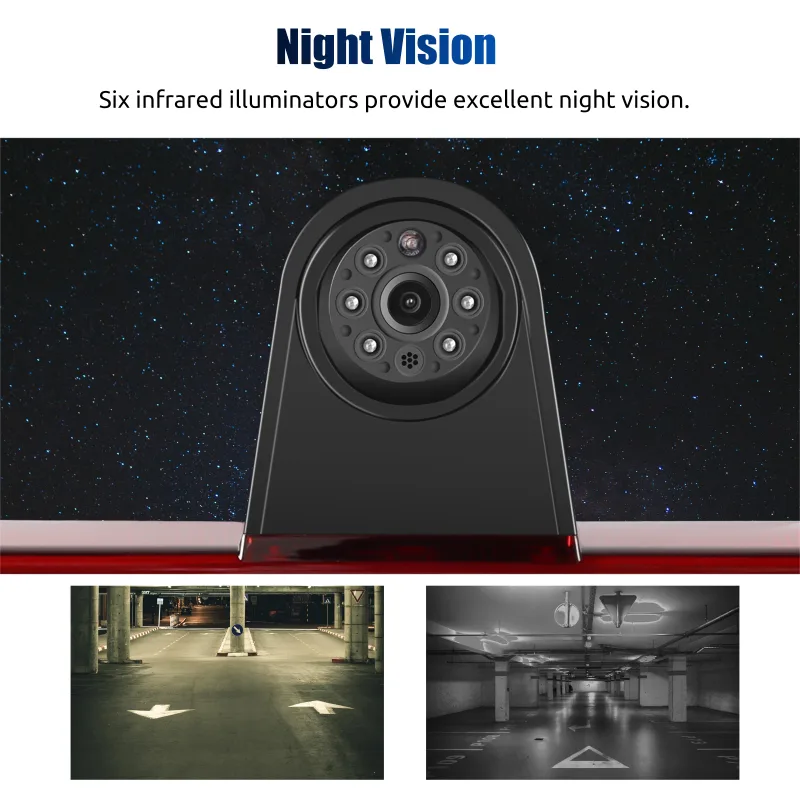

Night vision: 6 infrared diodes with brightness sensor

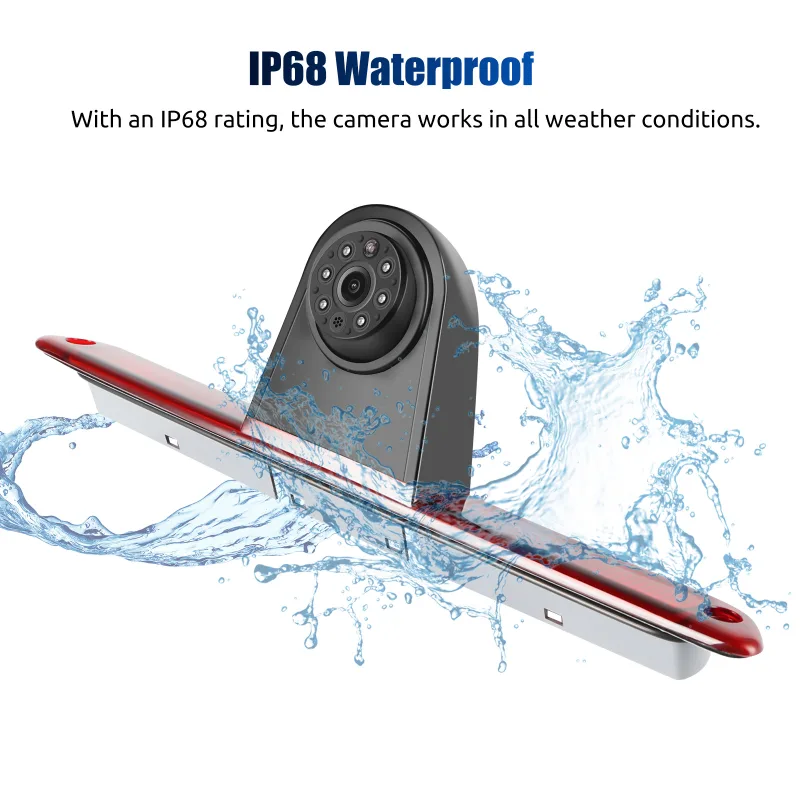

IP68 splashproof

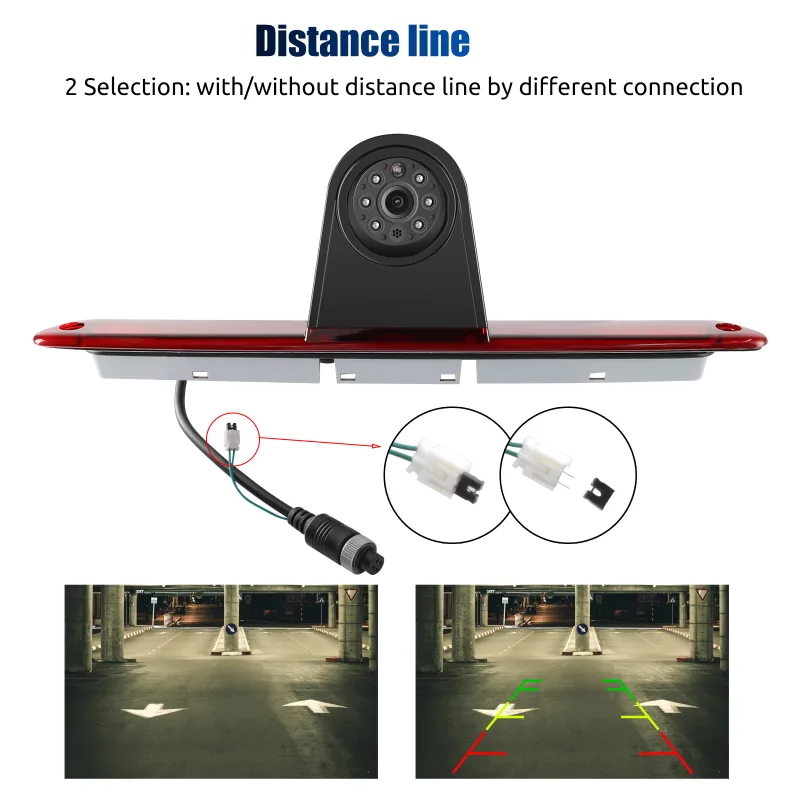

Distance lines: optional
RCA Video Cord: 8m/26.2ft

Installation instructions:
Remove brake light
Insert lighting unit in camera
Reinstall camera with brake light
Connect the power supply cable to the reversing light
Lay the video cable in the vehicle to the monitor

Package Included:
1x Reversing camera integrated in Brake Light Housing
1x 8m/26.ft Cable
1x Adapter Cable
1x Power Cable

Product Detail Image
