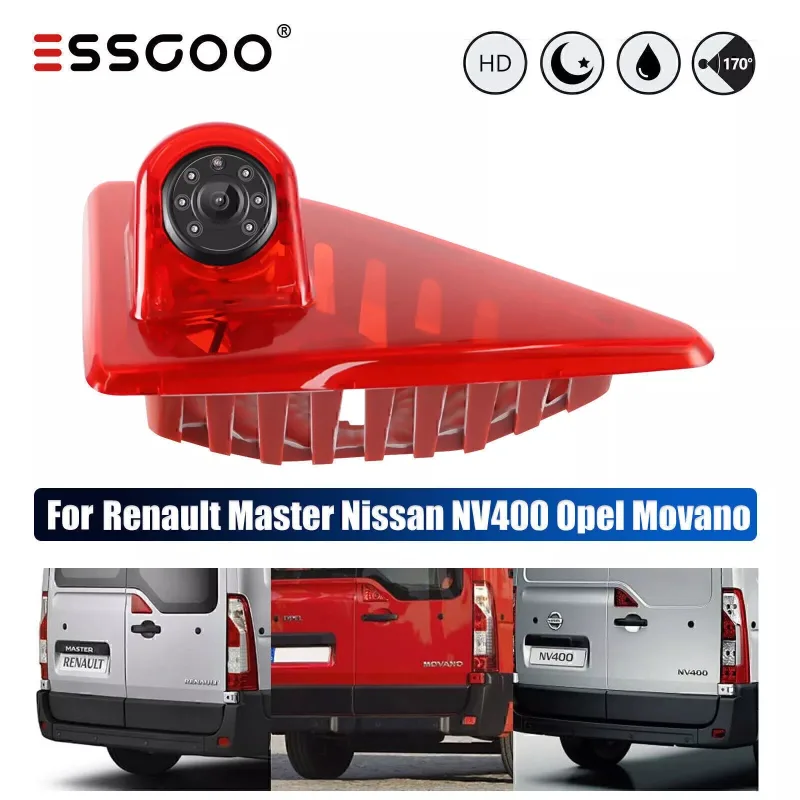

ESSGOO 3rd Brake Light Cover HD Rear View Backup Camera Night Vision For Renault Master 2010-2019 Nissan NV400 10-20 Opel Movano

COMPATIBLE WITH THE FOLLOWING MODELS:
Nissan NV400 (2010-2020)
Renault Master (2010-2019)
Opel Movano (2010-2017)

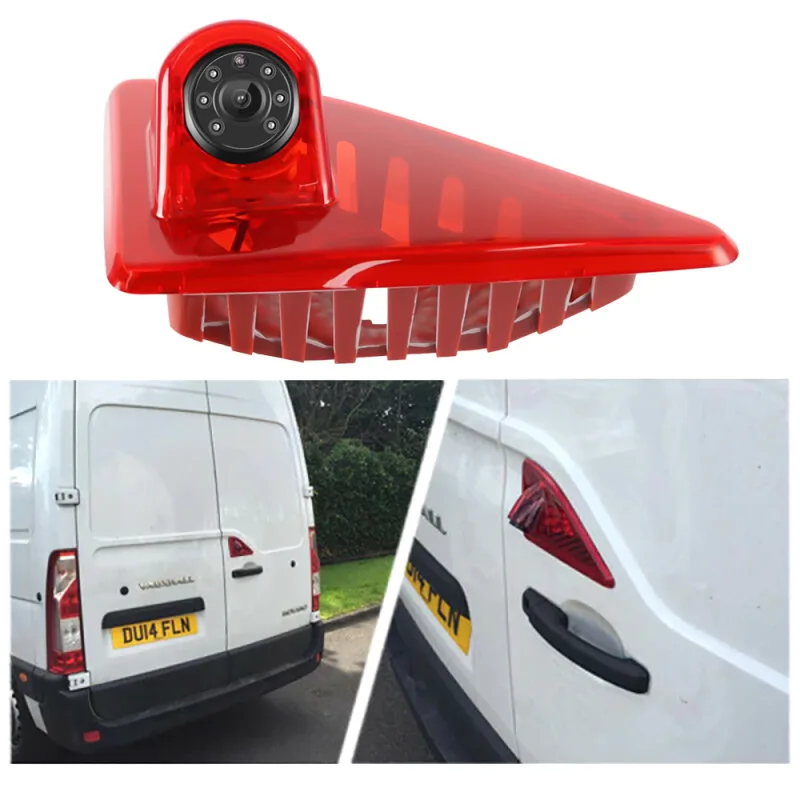

1. Easy installation, the third brake light on the edge of the roof is replaced.

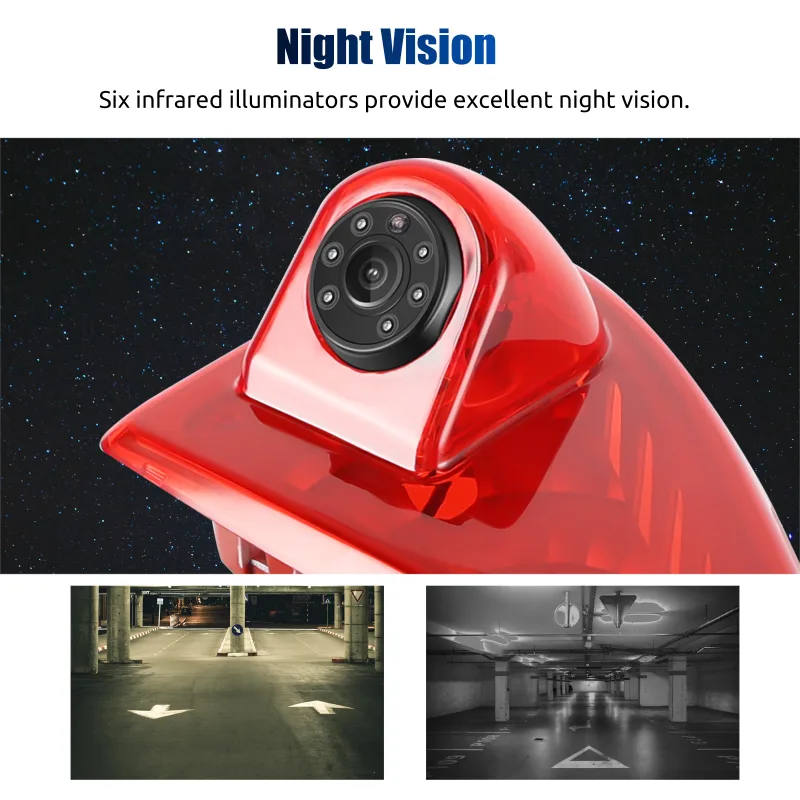

2. Good night vision thanks to 10x strong infrared diode sensors
3. 8m special cable
Camera connection: 4-pin with anti-vibration screw thread
Monitor connection: RCA plug
4. Gontinuous operation as well as switching with reverse gear possible
5. Color camera

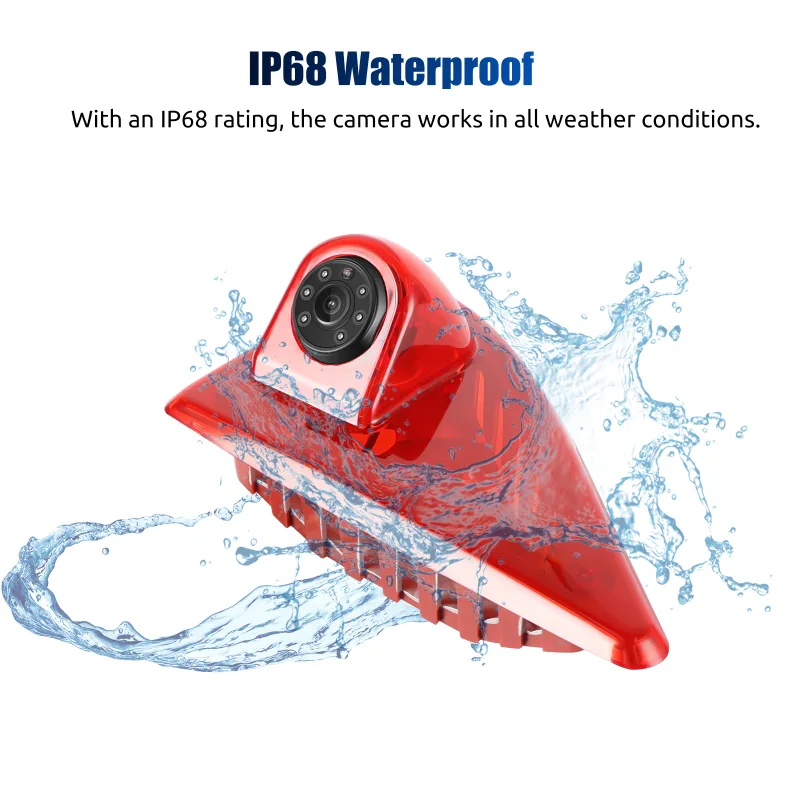

6. IP68 waterproof!

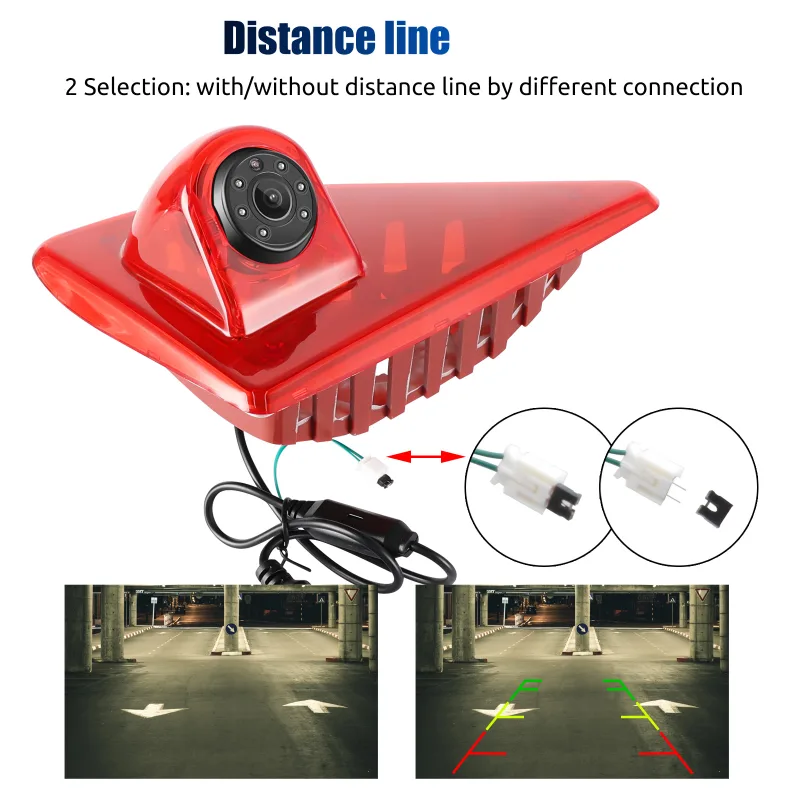

7. Distance line: optional

Installation instructions:
Remove original brake light
Reinstall camera with brake light cover(use original brake light bulb)
Connect power supply cable to reversing light
Lay video cable in vehicle to monitor

Technical specifications:
Camera: Rear camera
Image sensor: 1/4 7440H CMOS
Resolution: 733 * 493 pixels
TV lines: 600TVL

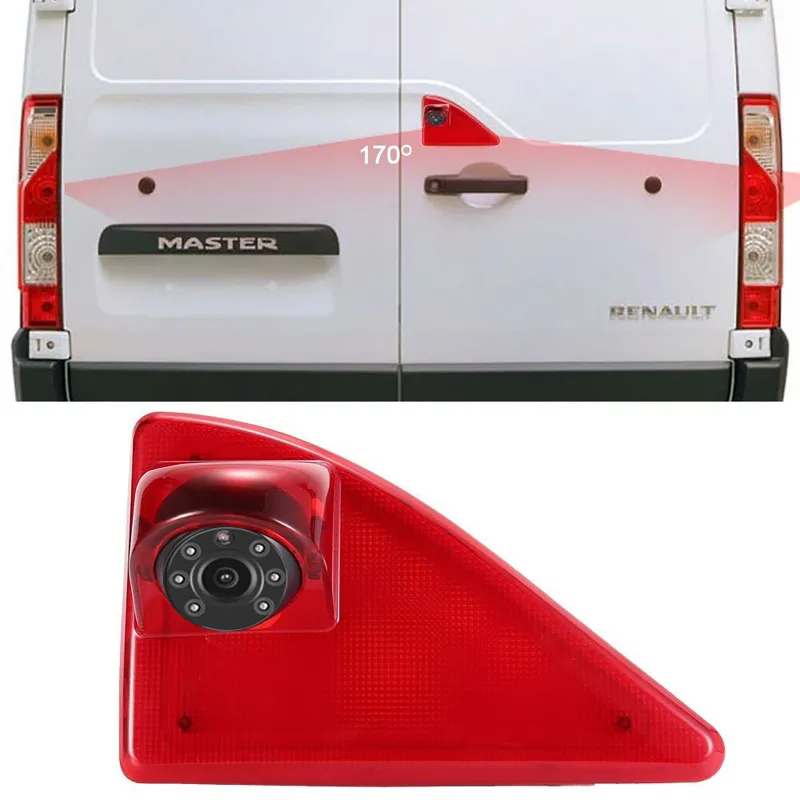

Angle of coverage: 170°
Camera body material: plastic
Minimum illumination: 0,1 Lux
Video standard: PAL/NTSC
Voltage: 12V
Ambient temperature range: -20 ° C ~ +70 ° C
Power consumption: <2 W
Night vision: 10 infrared diodes with brightness sensor
IP68 waterproof
distance lines: optional
8m cable included

Package included:
1x Brake Light Cover with Rear View Camera
1x 8m Cable
1x Adapter Cable
1x Power cable
