About this item
Description
Electric motors are crucial for the operation of equipment. Our 25W gear motor uses a variety of high-quality materials and exquisite processes, with high torque(8Nm) and high rotational speed(90-1350rpm), which can effectively improve work efficiency. The adjustable speed fully meets your various needs. If you're still looking for a powerful motor, it won't let you down.
Key Features
Build to Last: High-quality cast aluminum, plastic spraying, integration, and heat treatment make the product heat-resistant, impact-resistant, wear-resistant, corrosion-resistant, and solid, so it has a long service life.
High Efficiency: The 25W power with small vibration, 90-1350rpm rotational speed, 8Nm torque, 1:60 reduction ratio, reversing function that is flexible with normally open and closed control systems, and integrated reducer can effectively improve work efficiency.

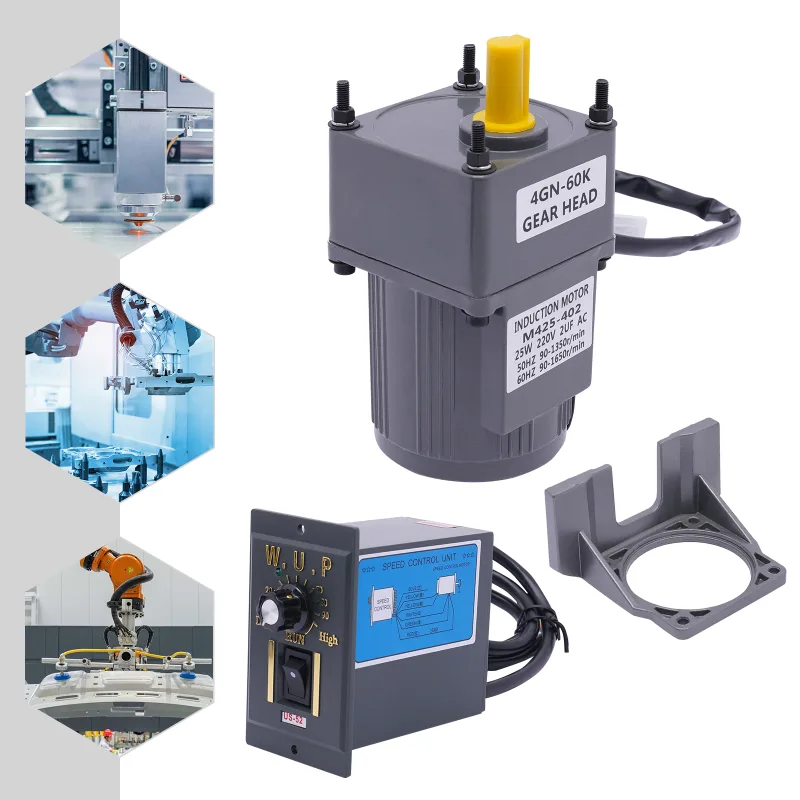

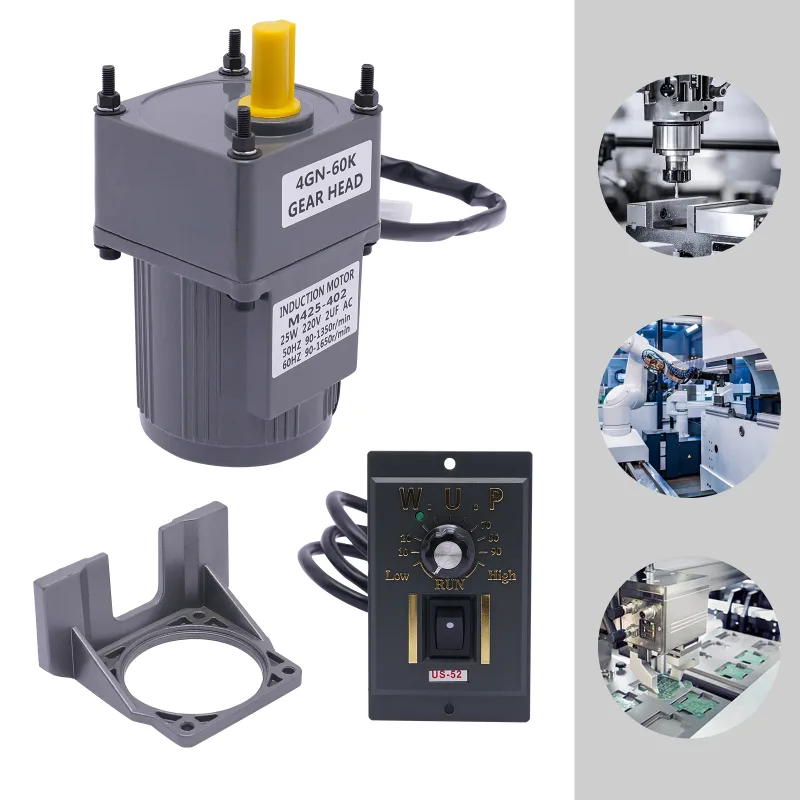

Adjustable Speed: With a speed adjustment knob with clear prompts, you can adjust different speeds (0-100%) according to different products to achieve the desired effect.
Safety Guard: The built-in cooling fan (>60W), cooling holes, stable pure copper coil, and slow start function that can effectively avoid current overshoot and protect the motor timely can ensure safety and prolong the motor's life.
Stable Operation: Ball bearings at both ends of the rotor can reduce friction and temperature during use, ensuring stable operation.

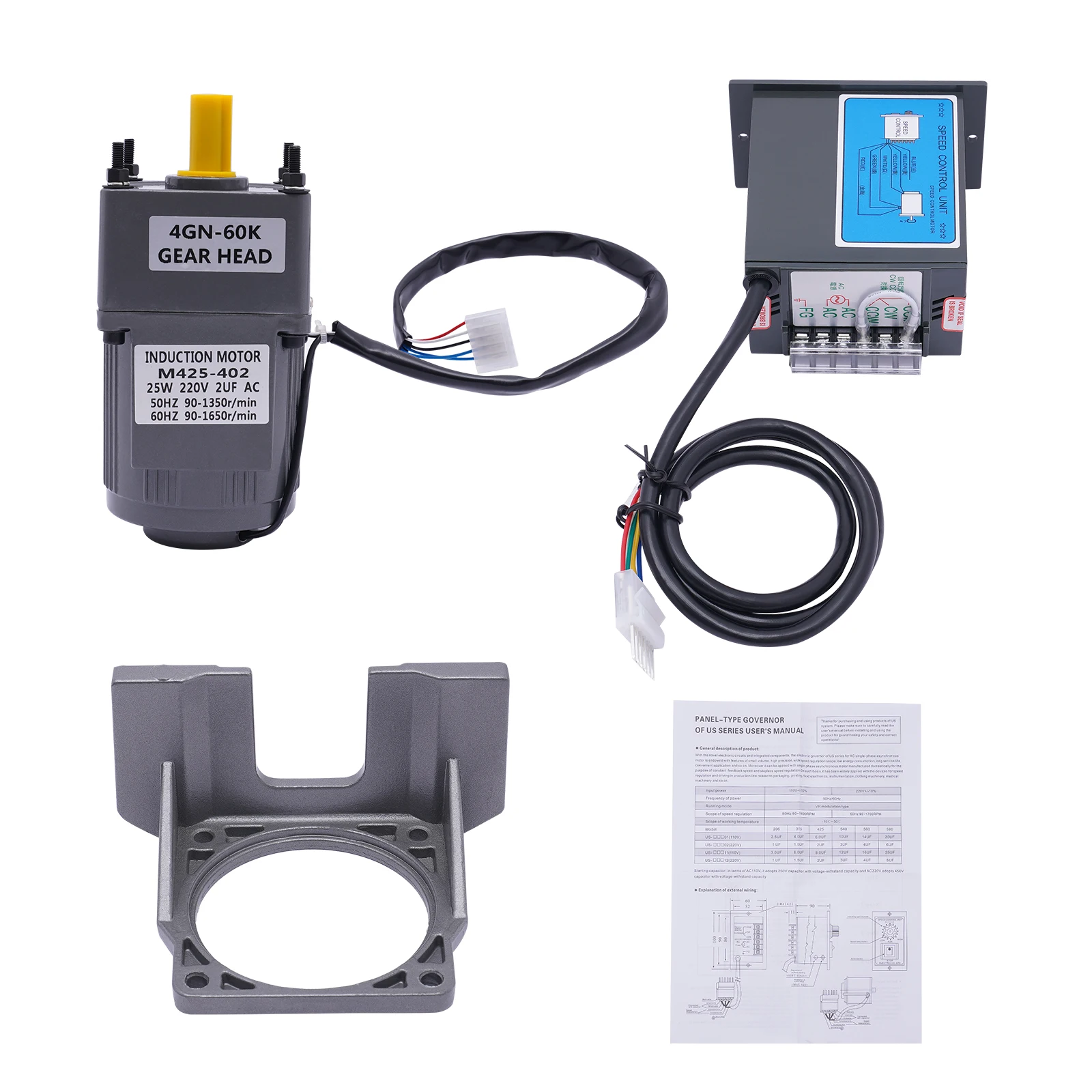

Convenient and Simple: Complete accessories, simple structure, convenient switch, knob, and detailed instructions allow you to complete the installation and start using it in a short time
Effortless Cleaning: The smooth surface makes it easy for you to clean the residue with water and a towel.
Protective Packaging: The foam and bubble bag can better protect your product during transportation so that it can be delivered to you completely

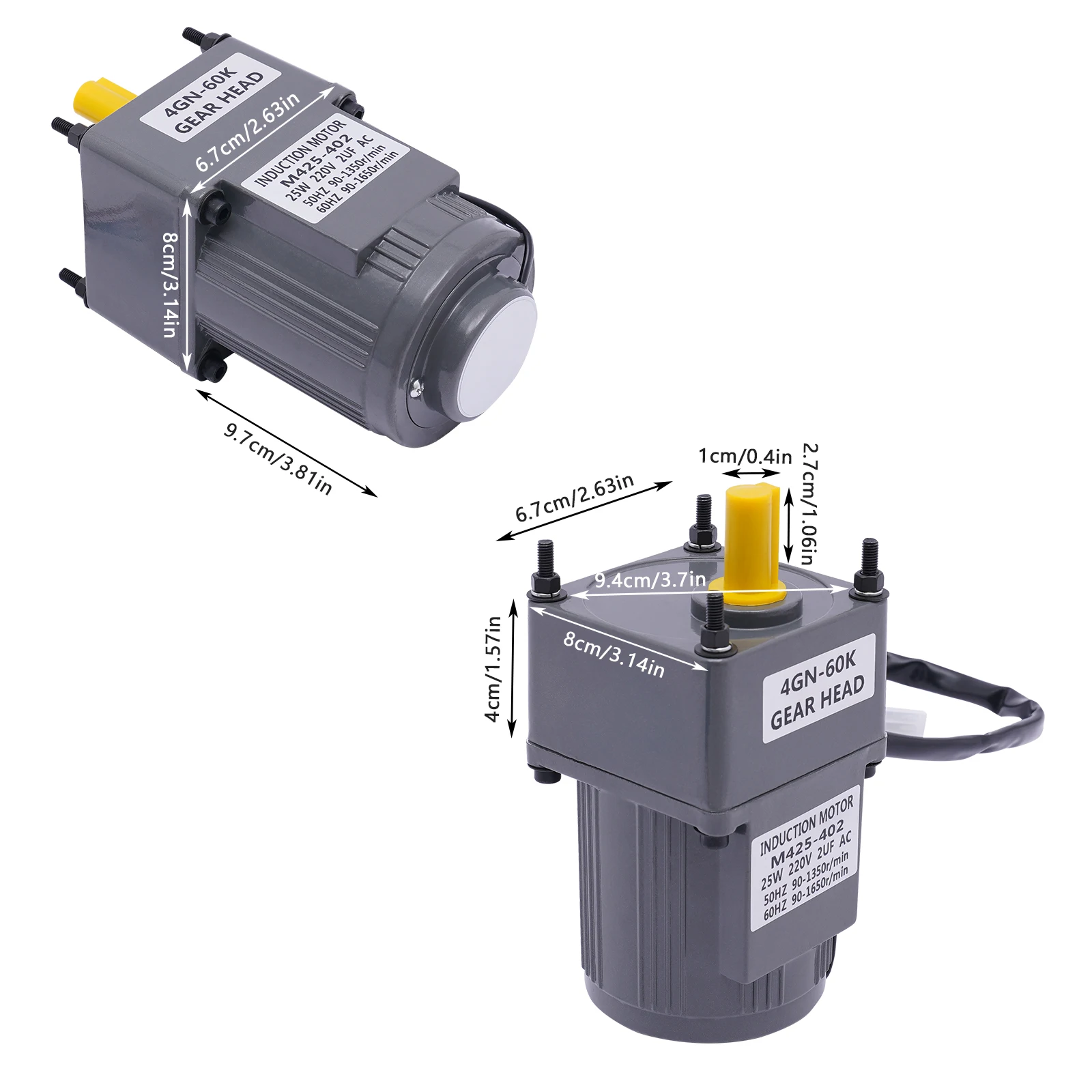

Compact and Lightweight: With a weight of 5.51 lbs and an overall size of 3.5*2.4*3.9inch, it allows you to easily move and carry.
Details
Long Connecting Cable: The 3.28ft cable allows you to have enough disposable length for easier use, and can also further protect your safety.
Round Corners: Compared with traditional square corners, an arc design without a burr can better care for your skin.

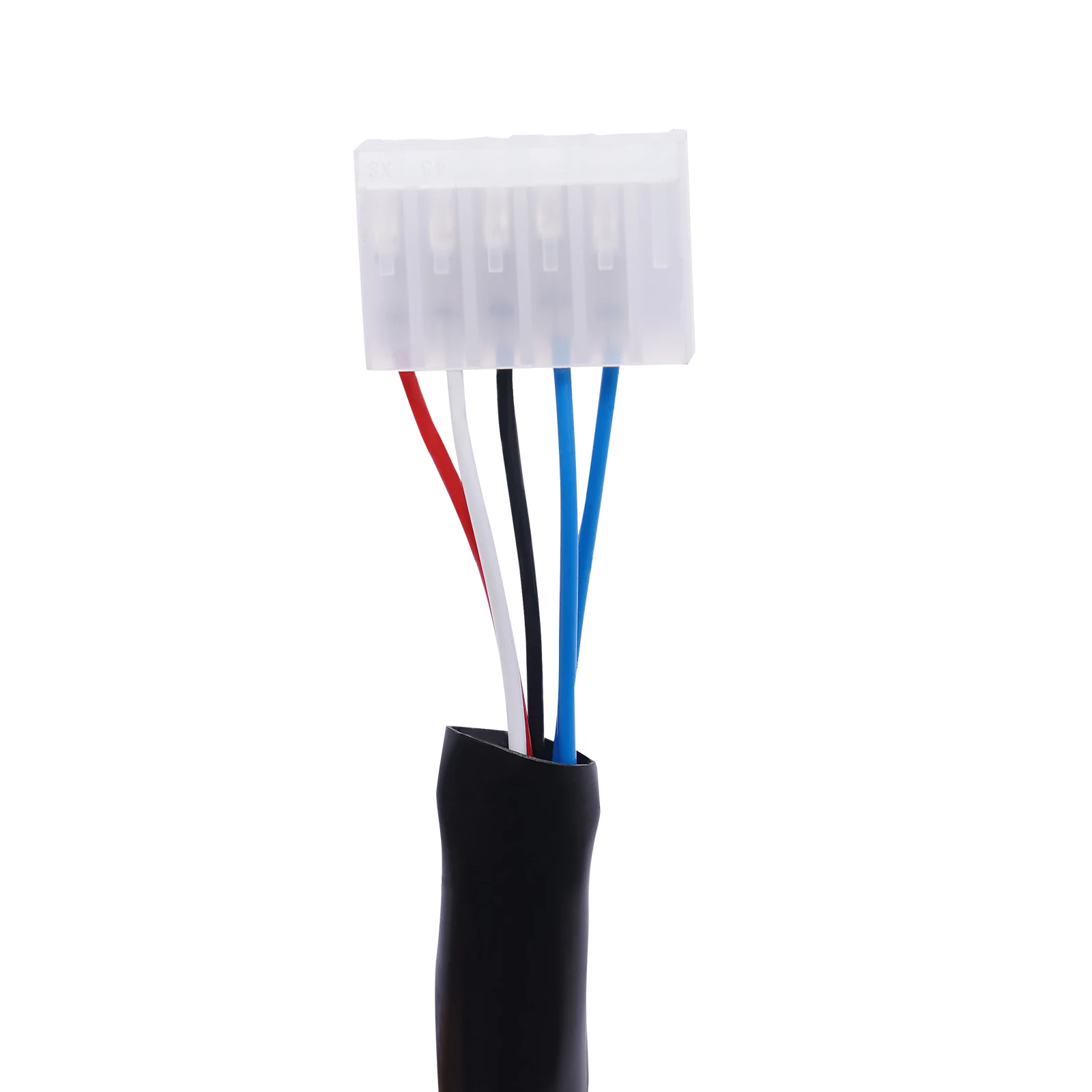

Multiple Power Cords: Different colors of power cords allow you to easily connect them without confusion.
Solid Stand: This 6.3*3 inch stand with two outwardly extending feet can better maintain product stability and ensure smooth operation.
Application

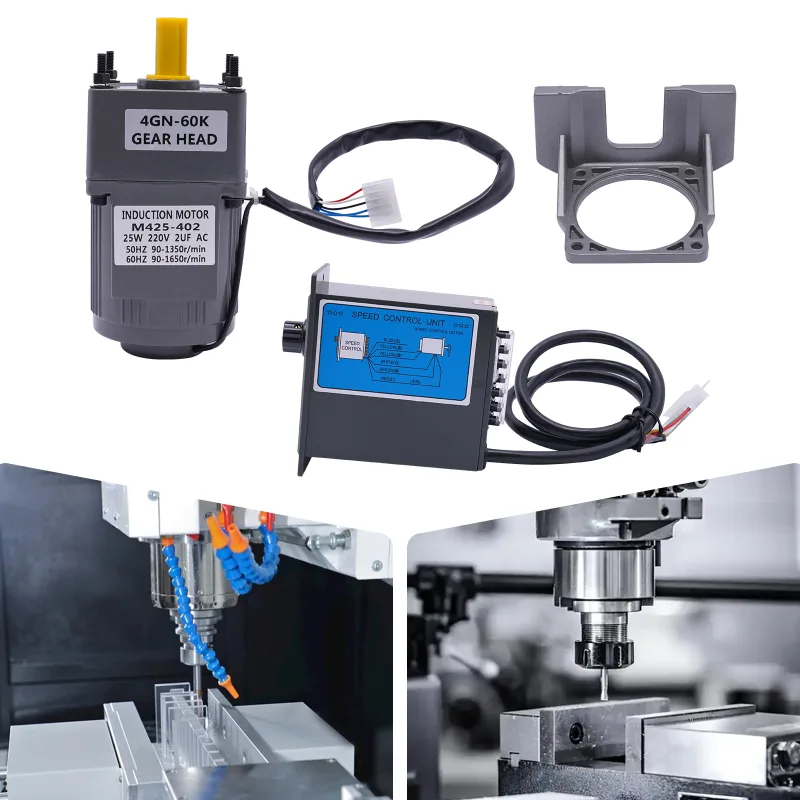

This product can be widely used in packaging, machine tools, transportation equipment, textile machinery, automatic welding machines, automotive industry, elevator machinery, printing, textile, dyeing, chemical, food, pharmaceutical, and other engineering machinery, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouses, parking lots, and other equipment.
How to Install
1. Please remove the holster before installation.
2. Fix the reducer on the gear motor with four M5 screws(not included).
3. Install the keyway at the keyway opening.

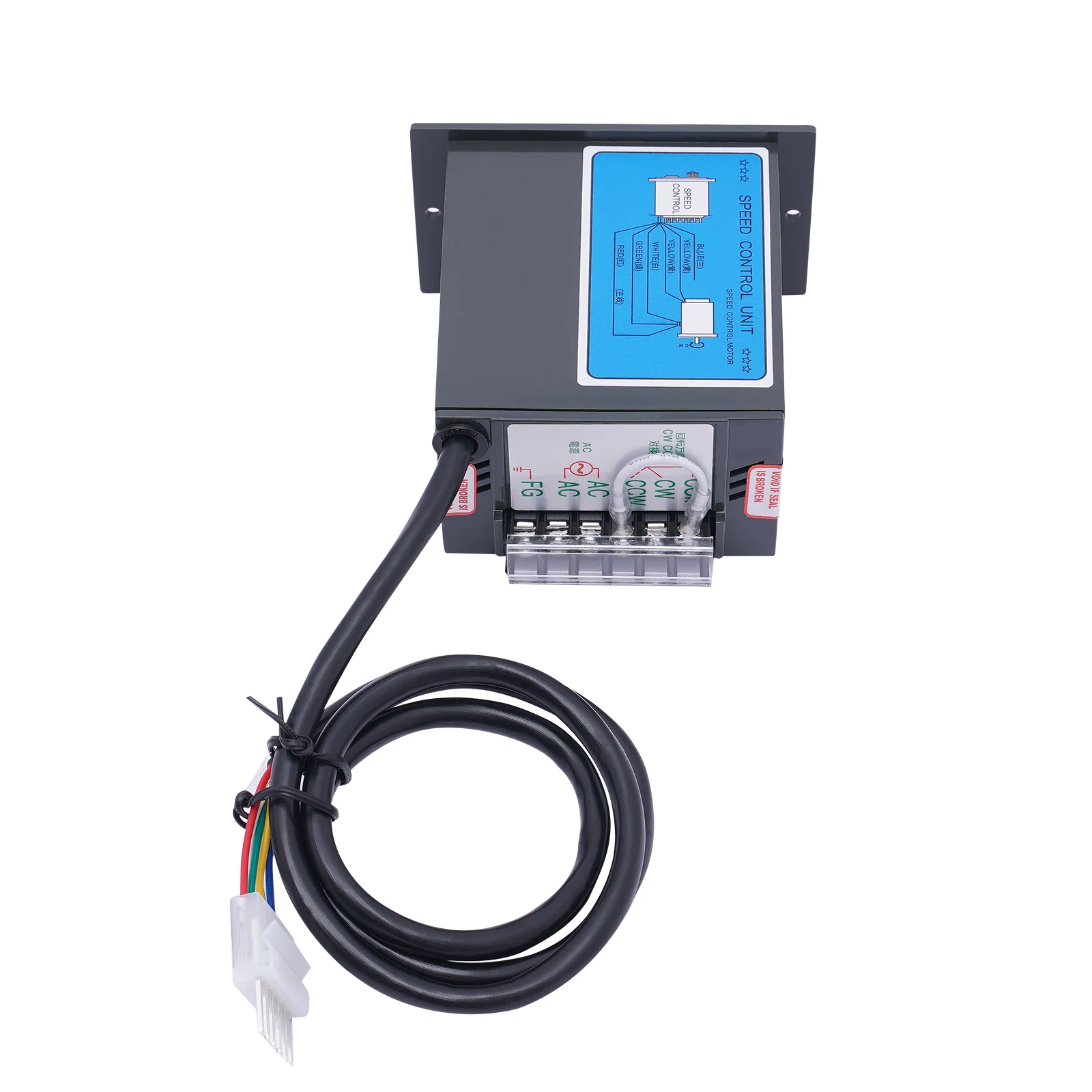

4. Plug the speed controller and gear motor together (main wire to main wire).
5. Unscrew the two AC screws(not included) on the back of the speed controller.
6. Connect single-phase power to both AC ports (without distinguishing between zero and fire wires) and tighten the screws.
7. Turn the speed control knob to adjust the motor speed.
8. Install the stand on the motor.
Specification
Color: Gray

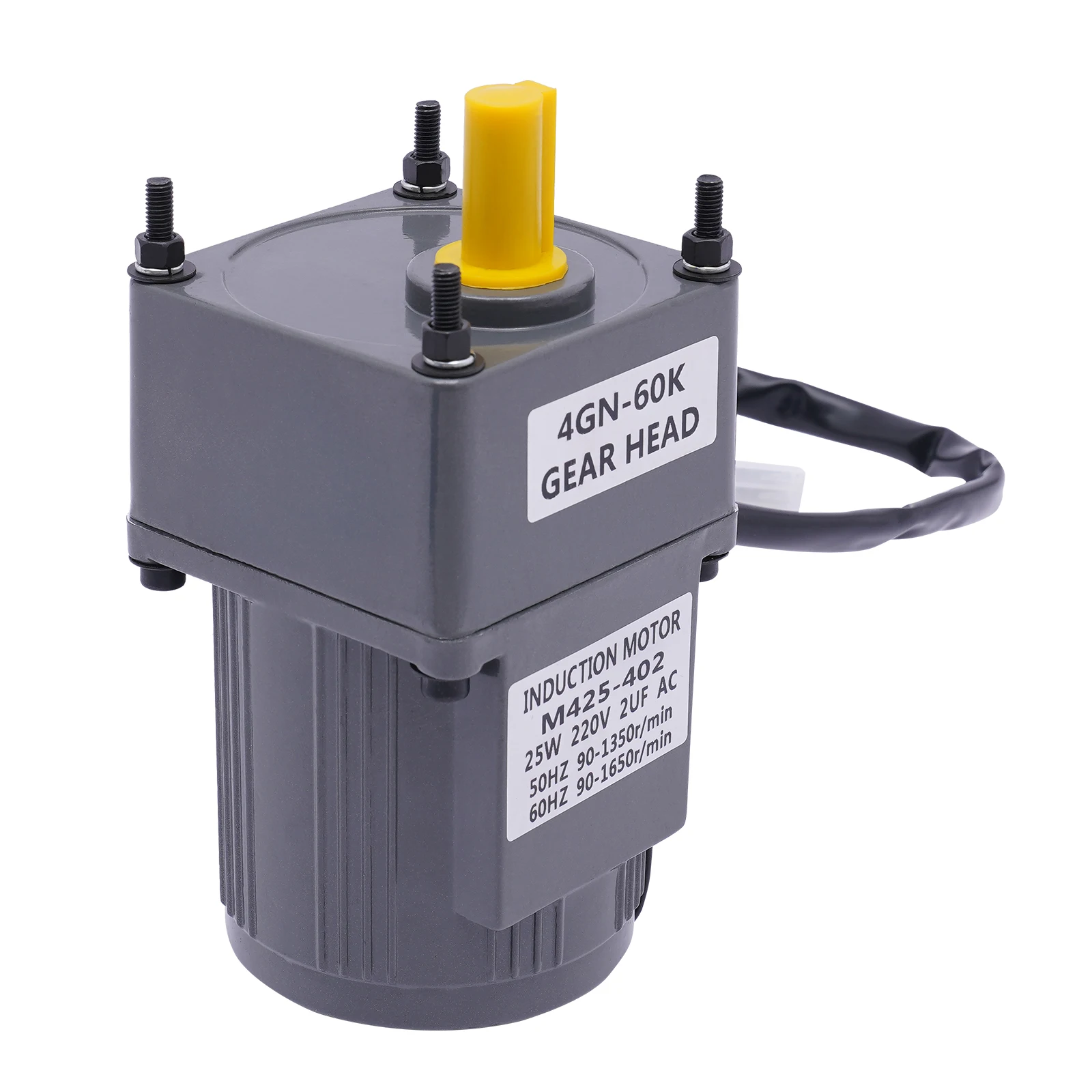

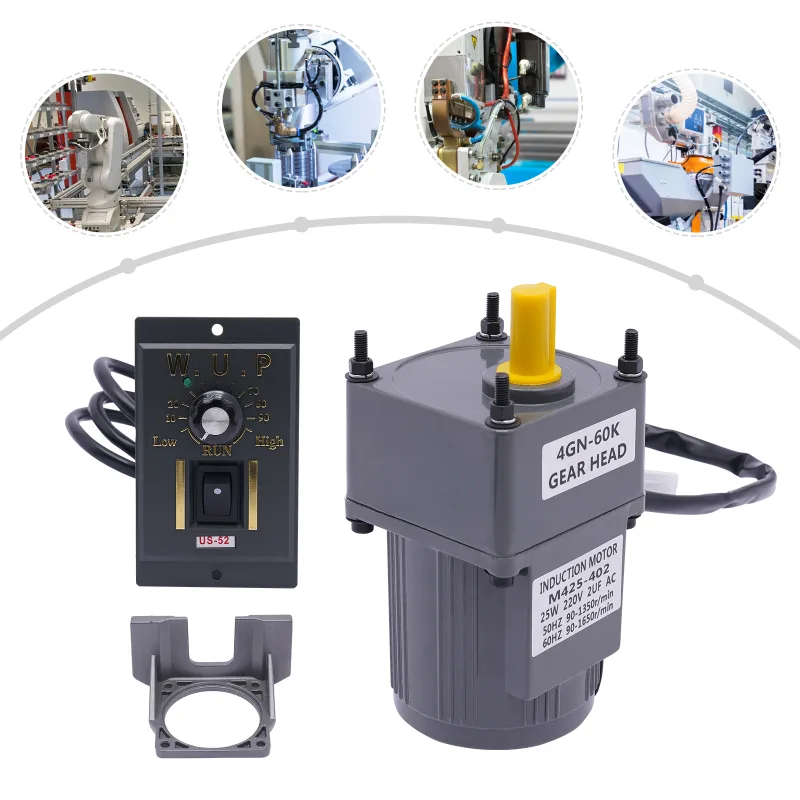

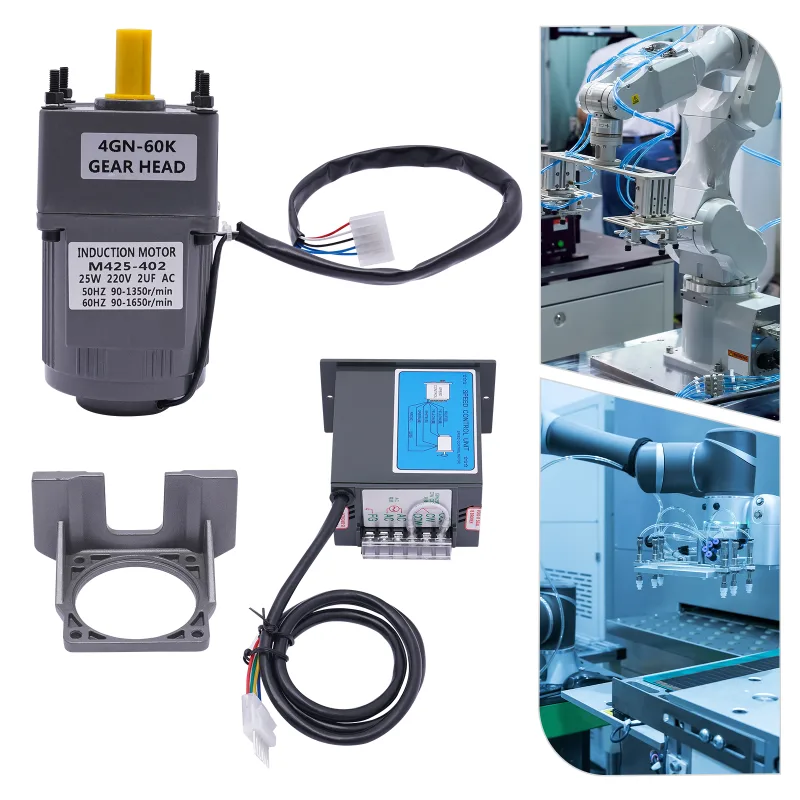

Name: 4GN-60K Gear Head
Model: M425-402
Material: Cast Aluminum
Processes: Plastic Spraying, Integration, Heat Treatment Process
Type: AC Gear Motor, Induction Motor
Shape: Square, Round
Feature: Portable
Power Phrase: Single-phrase
Motor: Pure Copper Motor
Noise: About 50db
Built-in Fan: ＞60W
Torque: About 8N.m
Voltage: AC 220V
Power: 25W
Capacitance: 2UF
Adjustable Speed: 0-100%
Assembly Required: Yes
Suitable Screw: M5 (Not Included)
Speed: 50Hz 90-1350r/mi…
