57HBS36 Stepper Motor Kit with HBS57 Driver, 3.6Nm, DC 24V

Featuring a high torque output of 3.6Nm, this stepper motor kit offers strong driving power in various settings. User-friendly programmability maintains its efficiency and stability. These characteristics make the kit suitable for precision-controlled, high-load industrial automation equipment. Its compact design and outstanding performance together render it an ideal solution for numerous industrial applications.

Specification

Material: Aluminium
Color: Blue, Black
Process: Oxidation
Style: Modern
Shape: Rectangle

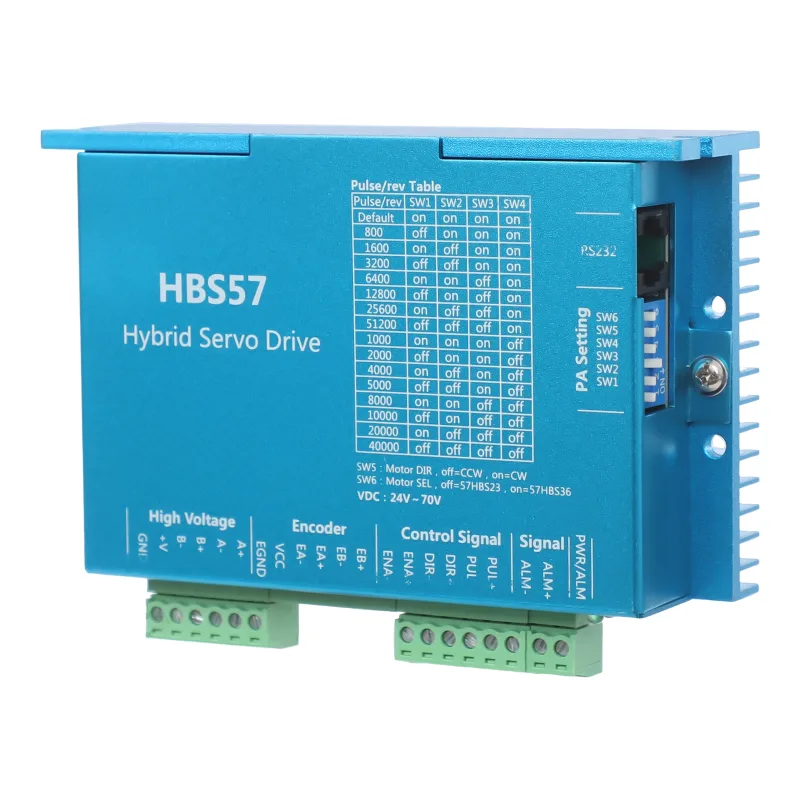

Driver
Driver Model: HBS57
Voltage: DC 24V-60V
Maximum Peak Current: 5A
Subdivision: 200-51200ppr
Pulse Response Frequency: 200 kHz
Cooling Method: Natural Cooling
Insulation Resistance: 500 MΩ
Signal Input: Pulse+Direction, Dual Pulse (Differential)
Logic Input Current: 1-16mA
Working Temperature: 0~50℃/32~122℉
Humidity: 40-90% RH
Vibration: 10-55Hz/0.15mm/0.01in
Storage Temperature: -20~65 ℃/-4~42.8℉

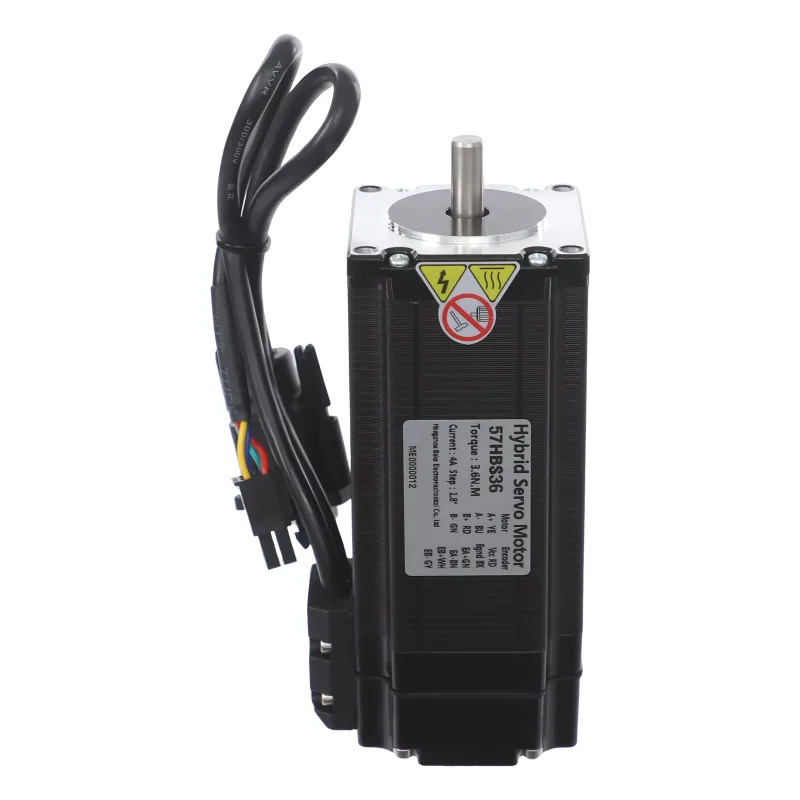

Motor
Motor Model: 57HBS36
Step Angle:1.8° ±5%
Phase: 2 Phase
Rated Current: 4.0A
Resistance: 0.86Ω±10%/Phase(At 20℃/68℉）
Inductance: 3.6mH±20%/Phase(at 1k Hz, 1Vrms)
Hold Torque: 3.6N.m
Insulation: B
Rotor Inertia:800 g.cm²

Motor Line Length: 3m/9.84ft
Encoder Line Length: 3m/9.84ft
D-axis Length: 21mm/0.82in
Driver Size: 118*75*34mm/4.65*2.95*1.34in
Motor Main Body Size: 132*56.4*56.4mm/5.2*2.22*2.22in
Package Size: 26.5*20.5*13cm/10.43*8.07*5.12in
Gross Weight: 2.6kg/5.73 lbs
Net Weight: 2.47kg/5.45 lbs

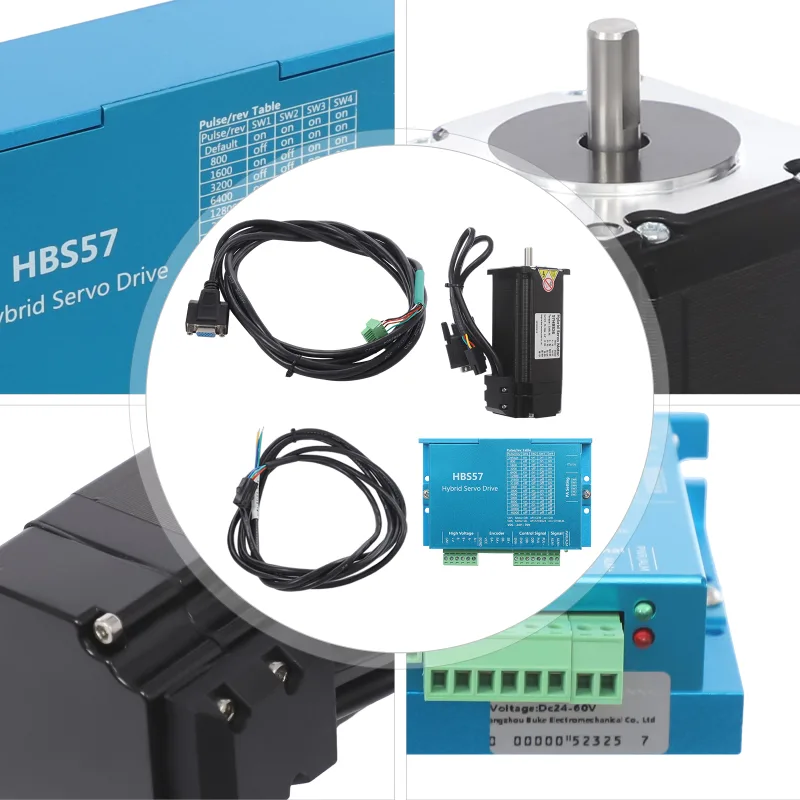

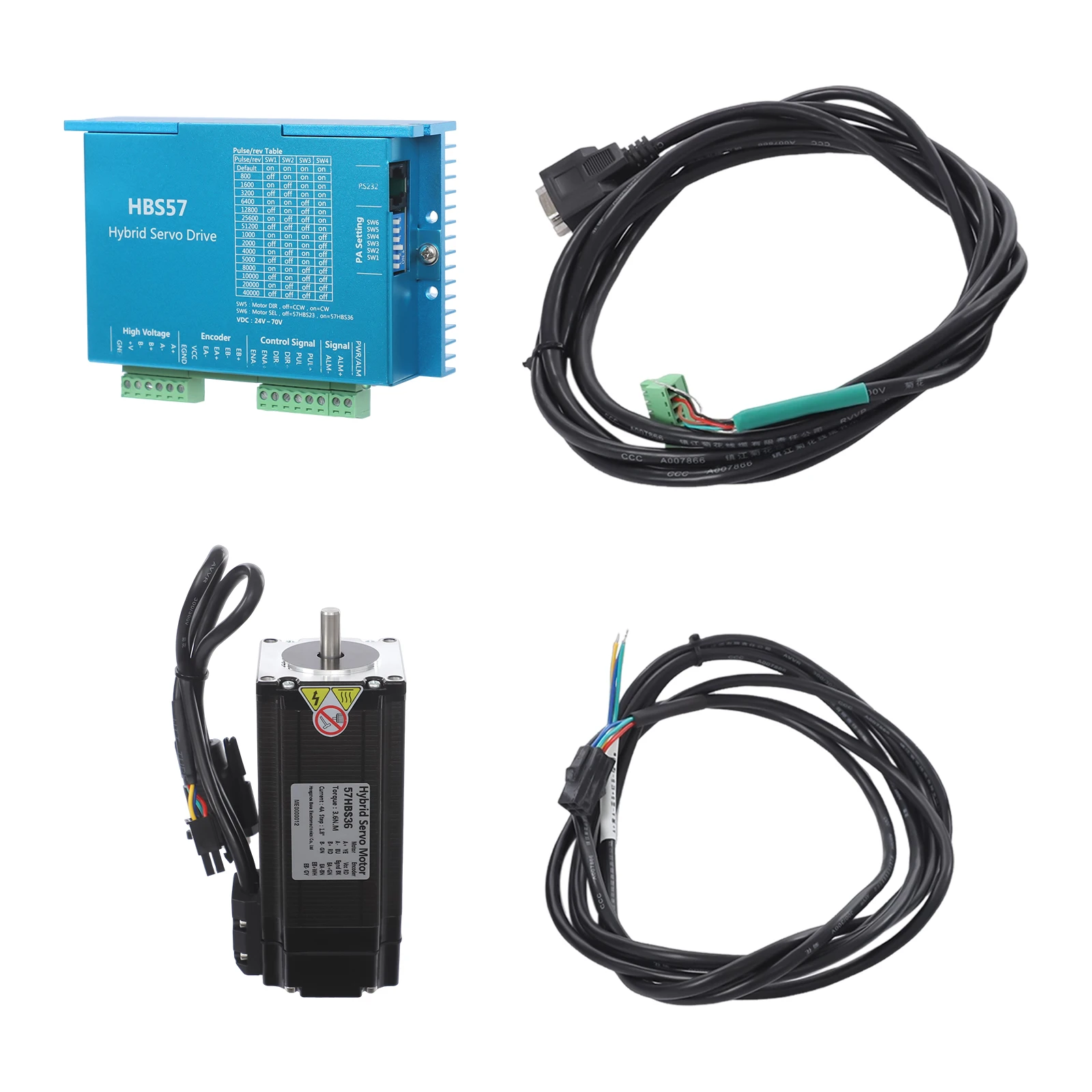

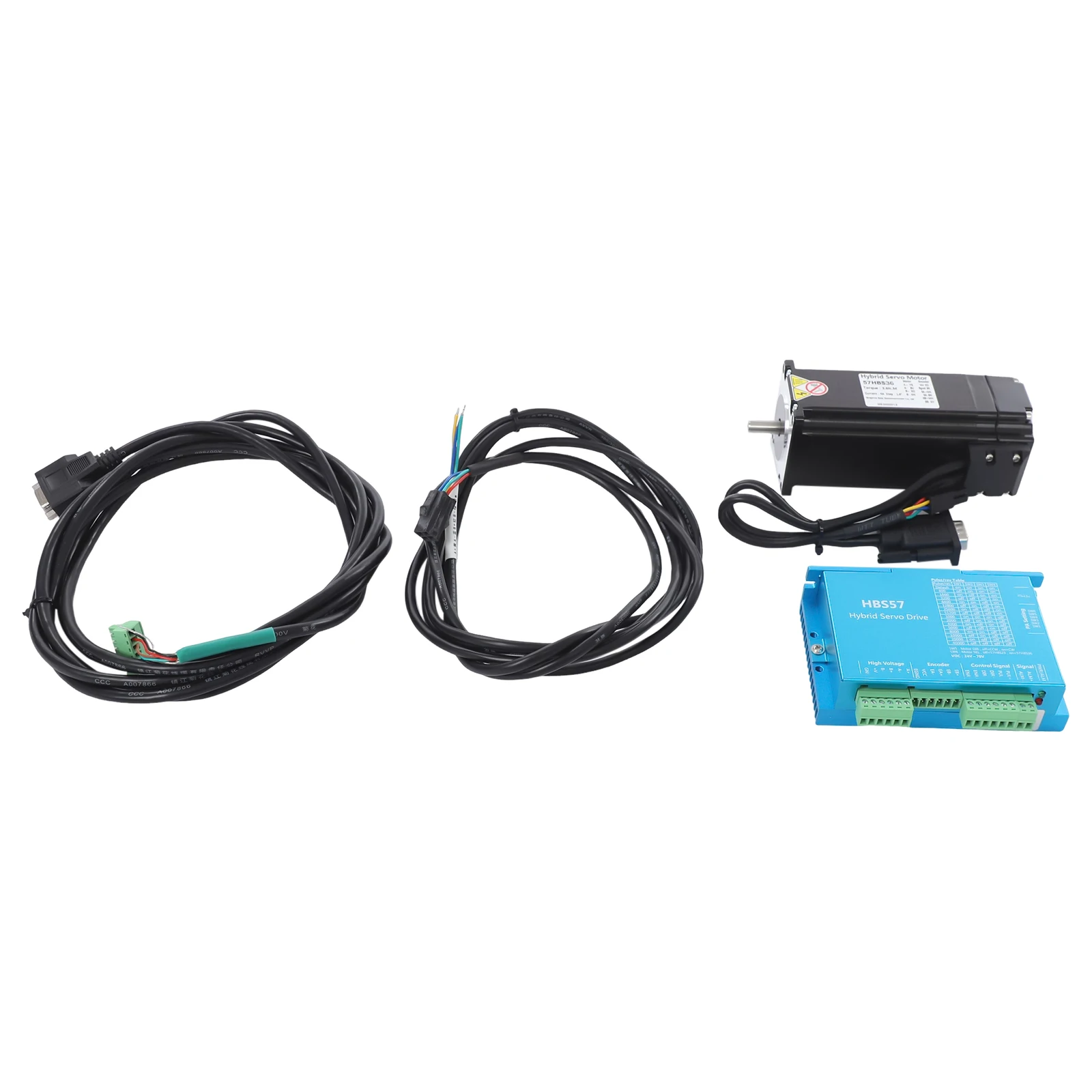

Package Included

1* Driver
1* Motor
1* Motor Line
1* Encoder Line

Key Features

Premium Material: It is made of excellent aluminium material, with an oxidation process, which is wear-resistant, rust-resistant, and not easy to deform, ensuring a long service life.

Advanced Control Performance: Incorporating a dedicated motor‑control DSP chip and vector closed‑loop technology, it eliminates step loss typical of open‑loop steppers. This significantly enhances high‑speed use, reduces motor heat and vibration, increases machining speed and precision, and lowers overall energy consumption.

Robust Reliability: In continuous overload conditions, the driver promptly outputs an alarm signal, matching the reliability of the AC servo mechanism. It also includes multiple protections against overvoltage, overcurrent, tracking error, and tolerance deviation for confident and safe use.

Powerful All-Round Functions: The driver provides high‑torque vector closed‑loop control while offering serial communication, adjustable current/subdivision, signal‑edge, and alarm‑output logic. These features enhance programmability, allowing easy adaptation to real‑world conditions and process simplification.

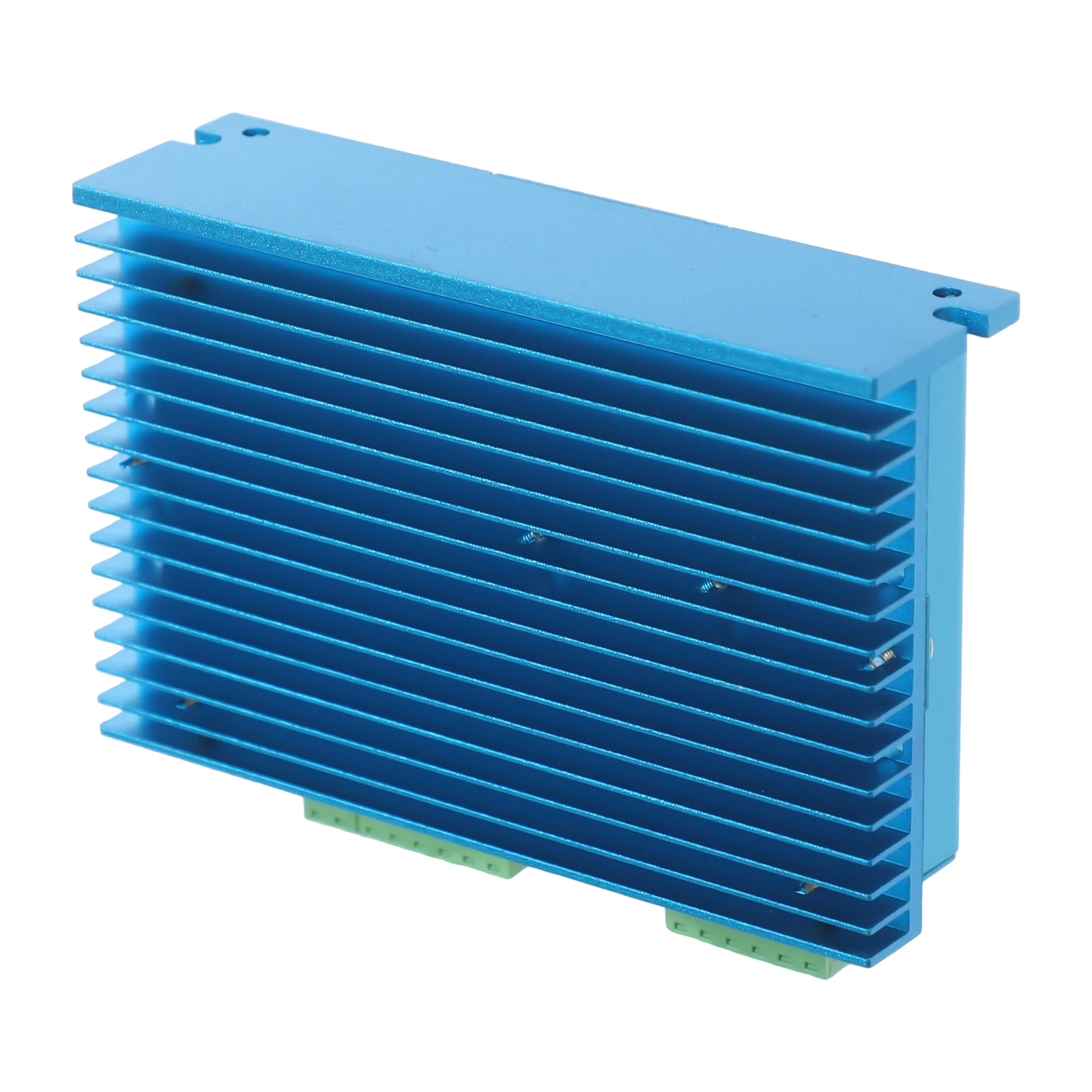

Compact and Space‑Efficient: Both motor and driver feature a small footprint and light weight, reducing workspace intrusion and improving handling convenience.

Easy to Clean: It has a smooth surface and a simple structure, so you only need to wipe the dust with a dry towel regularly.

Ideal Gift: It is an ideal gift for friends who need to work with closed-loop stepper motors and drivers, bringing convenience to their work.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

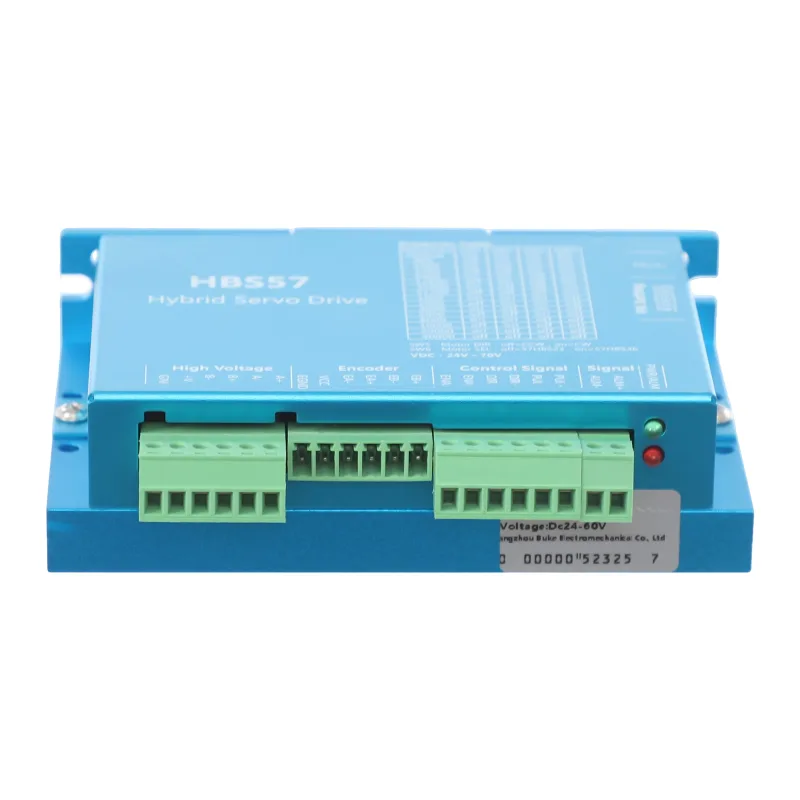

Intuitive Status LED: The green LED indicates normal use. A red light signals a fault. They enable quick status monitoring and timely response.

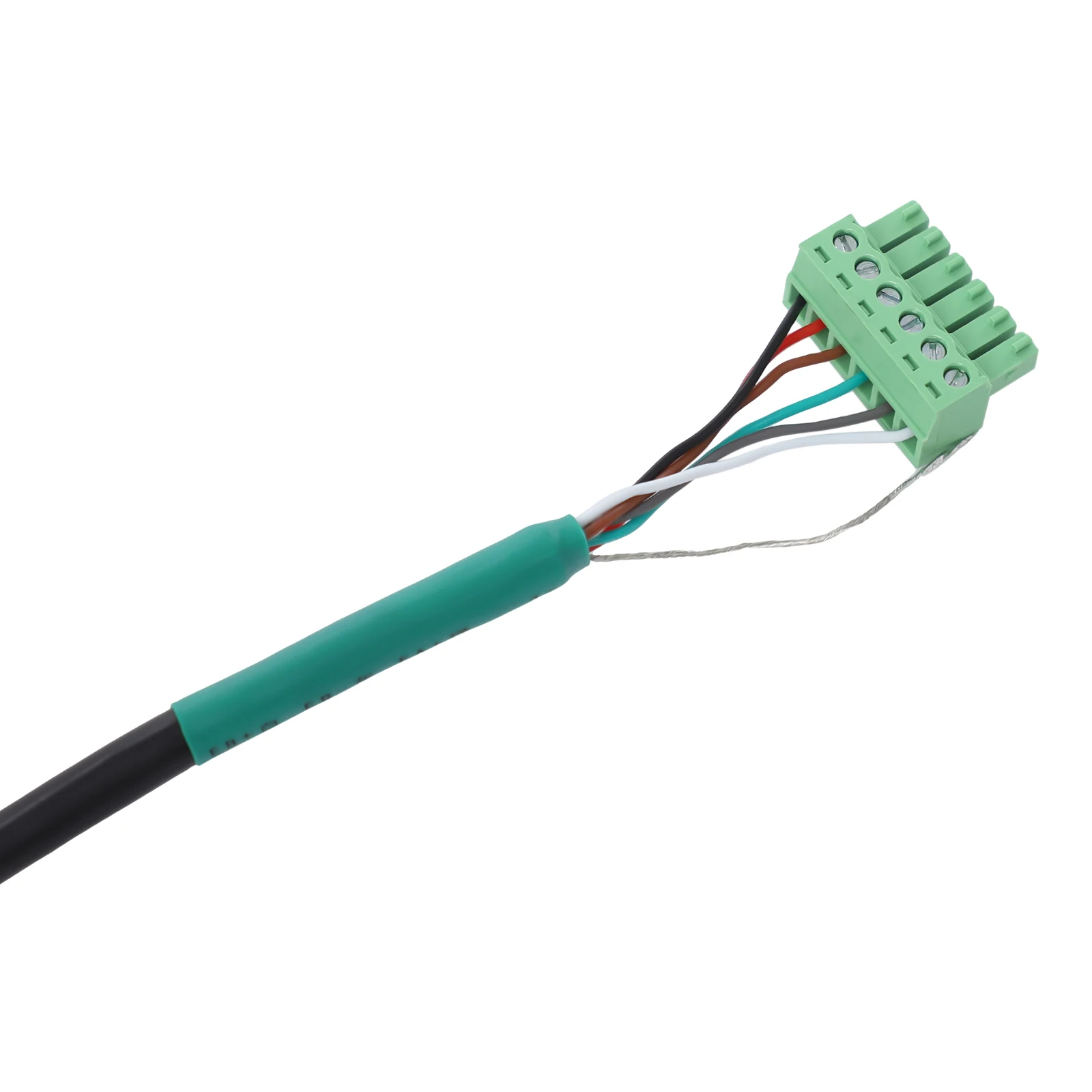

Extended Motor & Encoder Cables: The included 9.84‑ft cables offer greater placement flexibility and more convenient integration into various setups.

Application

It is suitable for electronic devices such as dispensing machines, woodworking machines, welding machines, screw machines, surface mount machines, packaging machines, engraving machines, etc.

Notes

1.Please note that this product is not waterproof, oil-resistant, or dustproof.
2.Please ensure that the power supply voltage and current meet the requirements of the driver and motor when using, to avoid overvoltage or overcurrent damage to the equipment.
3.Please connect the wiring of the motor and driver correctly to avoid faults caused by short circuits or reverse connections.
4.Please set the driver parameters reasonably according to actual application needs to achieve better performance and efficiency.
5.Please carefully check the parameters and sizes of this product before placing an order.
6.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
