Dokio 18V 100W Rigid Waterproof Solar Panel Set Controller for Home Charging 12V Car Battery Monocrystalline China

Model:DSP-100M

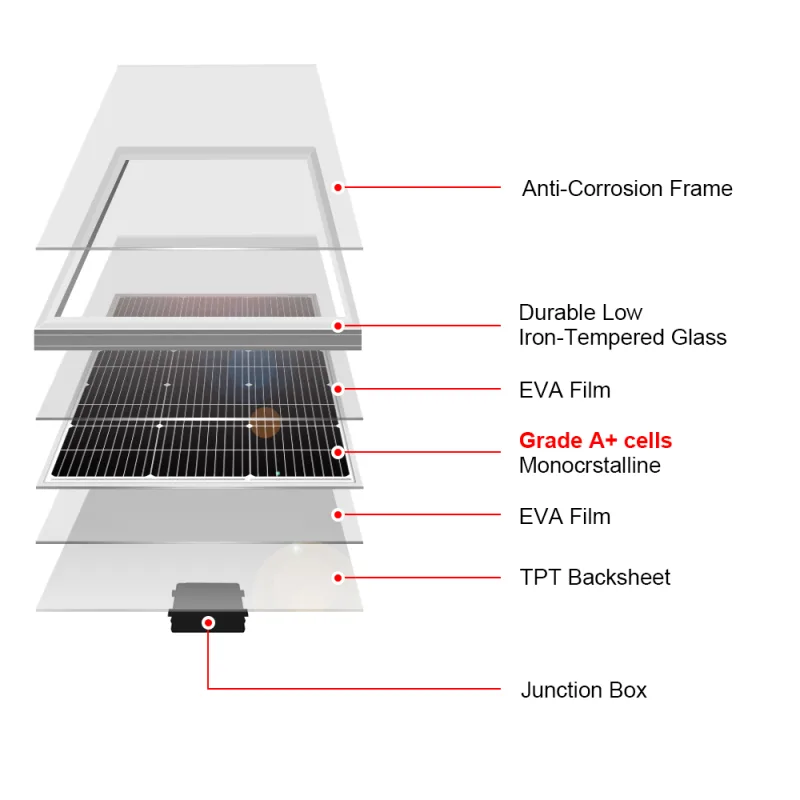

Material:Monocrystalline silicon
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 20.5V
Short-Circuit Current (Isc):6.5A
Maximum System Voltage: DC1000V
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum Series Fuse:15A

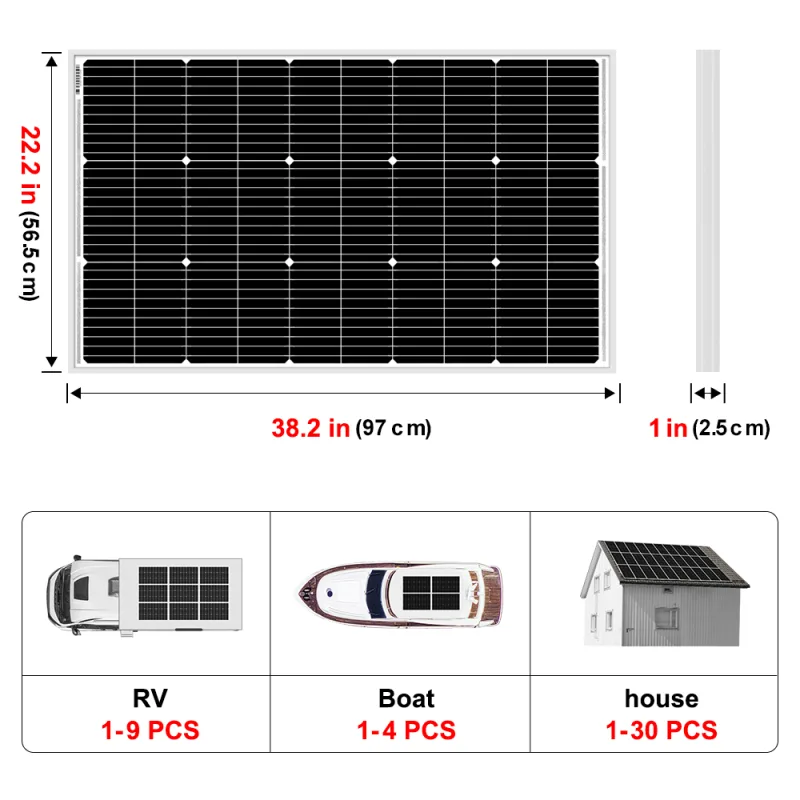

Dimension:97*56.5*2.5cm
Package Dimension:100*58*5.5cm
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
NEW  SIZE !!!

FAQ
Why did the title write 12V solar panels, and the product page wrote 18v solar panels?
Many customers will have a misunderstanding when choosing solar panels. They want to buy 12v solar panels to charge 12v batteries.
In fact, the voltage of the solar panel is affected by the light intensity.If the light is weak, the voltage of the solar panel will drop.
We set the solar panel voltage to 16v-18v to ensure that the solar panel still maintains enough voltage to charge the battery when the light is weak.
Why did I not get 100w in the actual test of the 100w solar panel I purchased?
The maximum power of this solar panel is 100w, the maximum is obtained in the laboratory.
Due to geographical constraints, most areas cannot get the maximum power of 100w.
So how do you test the maximum power of a solar panel in your-self area?
Wait for a sunny day, flatten the solar panels on the ground at 12 noon. Use a multimeter to test the metal sheets in the solar panel junction box, or directly test the MC4 connector.
