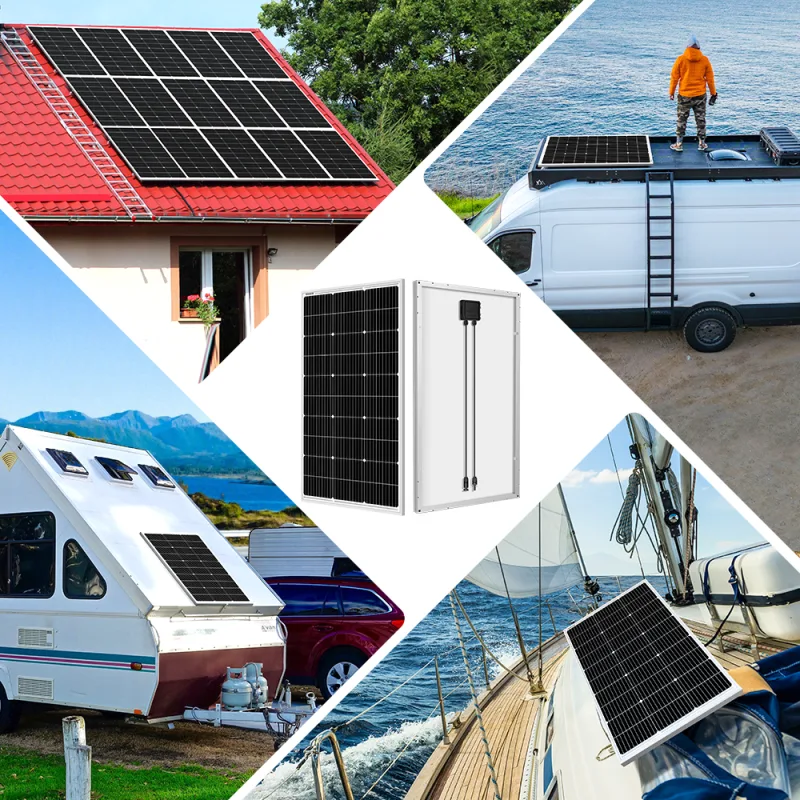

DOKIO 18V 100W Rigid Solar Panel China 18V Monocrystalline Silicon Waterproof Solar Panel Charging 12V #DSP-100M Camping/Home/RV

Product Description:
Model:DSP-100M

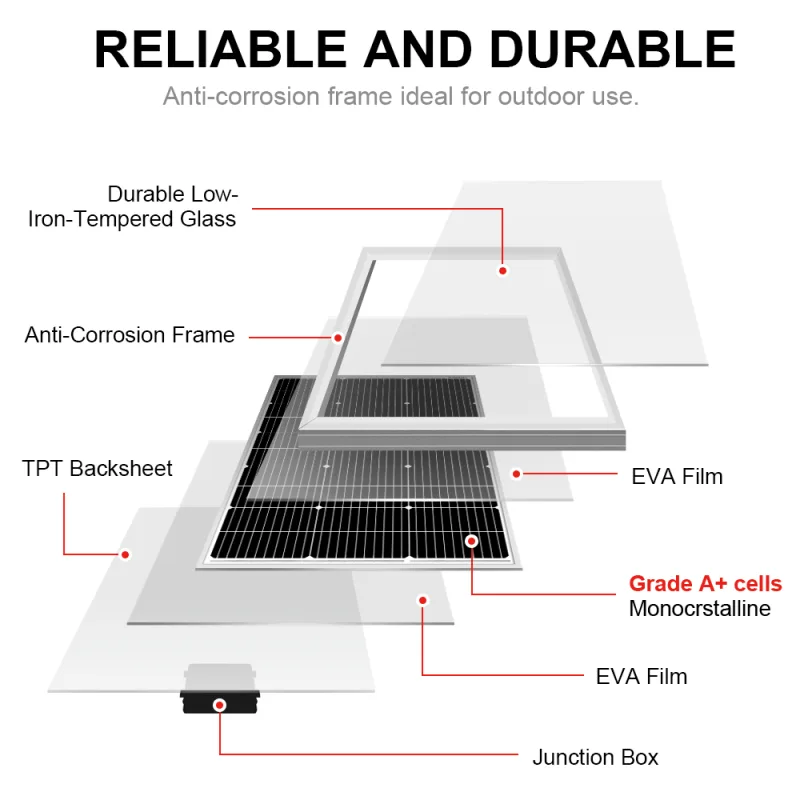

Material:Monocrystalline silicon
Maximum Power(Pmax):100W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 20.5V
Short-Circuit Current (Isc):6.5A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

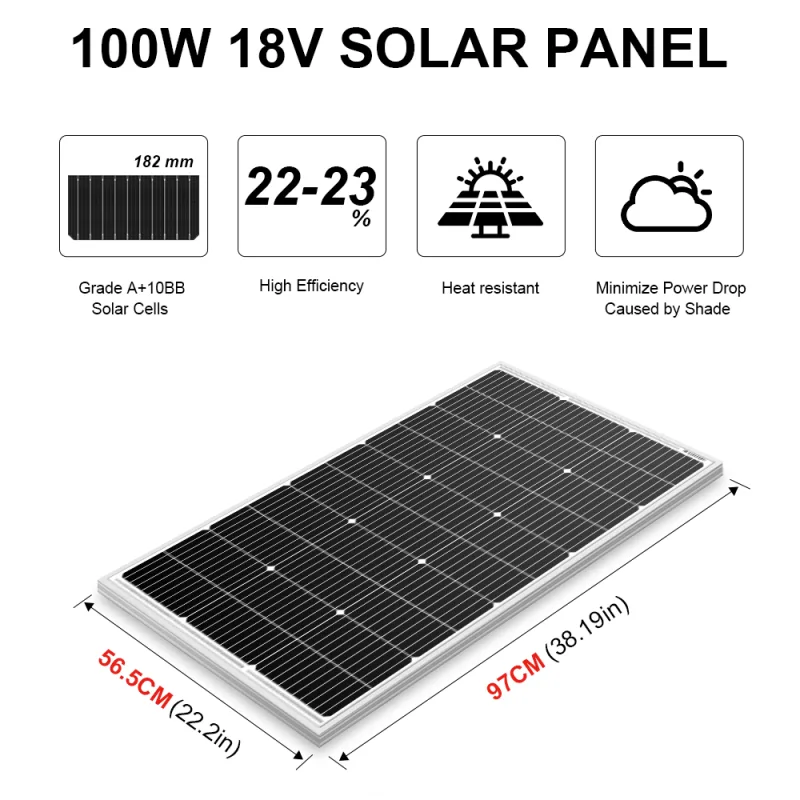

Dimension:97*56.5*2.5cm
Package Dimension:100*58*5.5cm
(The above data is based on the laboratory standard test environment)

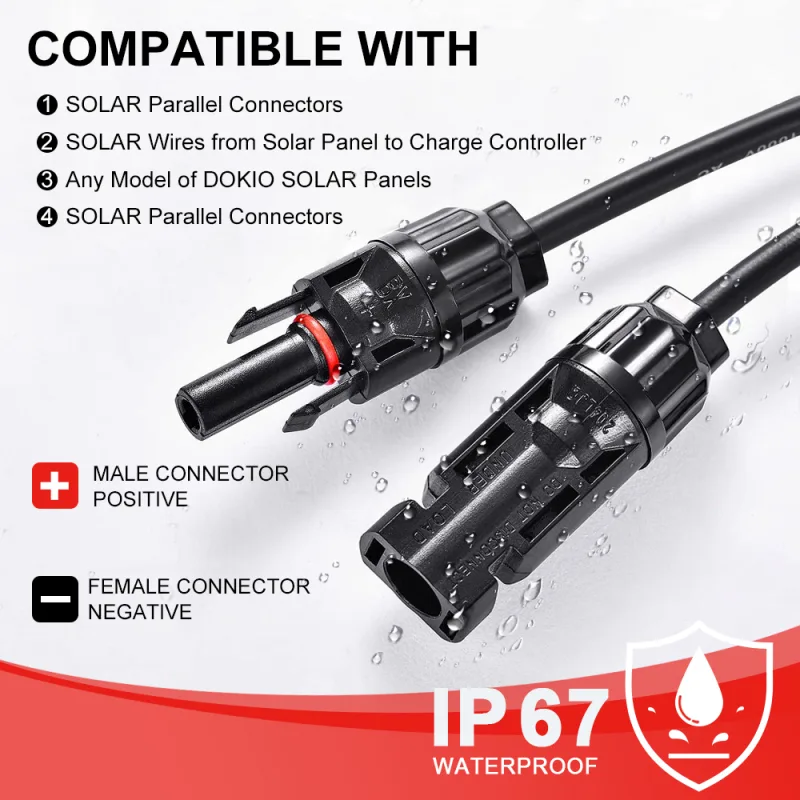

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
NEW  SIZE !!!
