ANCEL PB500 Car Battery Monitor 12V/24V Power Probe Circuit Tester Car Multi Meter Circuit Auto Battery System Diagnostic Tools

PB500 Electrical Circuit Diagnostic Tester Automotive Power Analyser
Ancel PB500 Power Scan Kit is the most revolutionary circuit tester to date, working with 12-24 volt sources and providing DC voltage, AC voltage, Frequency, Duty Cycle, Injector Circuit, Resistor and Diode detection functions. Specifically in AC voltage, Frequency, Duty Cycle and Inject mode, the user can switch between waveform display mode and digital display mode by long pressing the mode button. The PowerScan is indeed the ultimate in performance and affordability, allowing the user to check circuits in a single step. An absolute must for any technician looking for a fast and accurate solution for diagnosing electrical systems.

ANCEL PB500 Electrical System Circuit Tester Functions:
✔️ Diagnose 12 ~24V automotive electrical systems swiftly and accurately.

✔️ Show battery voltage reading and help user determine circuit polarity immediately after connecting the KM50 clips to the vehicle battery.

✔️ Test DC Voltage, AC Voltage, Frequency, Duty Cycle, Fuel Injection Circuit, Resistance, and Diode. Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button for 3 seconds to switch between Waveform Display Mode and Digital Display Mode.

✔️ Activate electrical components and test their functions without jumper leads – by depressing the rocker switch to conduct a positive or negative battery current to the tip so as to power up electrical components.

✔️ Test bad ground contacts instantly without performing voltage drop tests.

✔️ Help user to follow and locate short circuits without using external fuses.

✔️ Test continuity with the assistance of its auxiliary ground lead.

✔️ The tool is short-circuit protected. If it becomes overloaded, Its internal circuit breaker will trip to protect the instrument from overload.

✔️ When the circuit breaker is tripped, the tool will NOT be able to conduct battery current to the tip even when the rocker switch is pressed; however, all other functions of the tool are still active, which means you can still probe a circuit and observe the voltage reading.

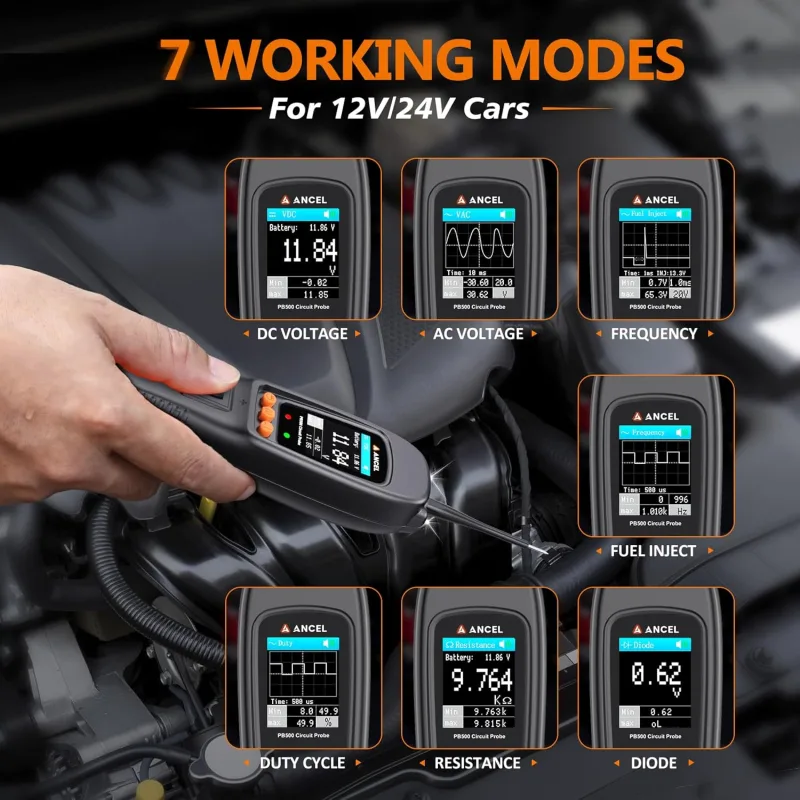

ANCEL PB500 has 7 test modes:
DC Voltage,
AC Voltage,
Frequency,
Duty Cycle,
Fuel Injection Circuit Detection,
Resistance,
Diode.

Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button to switch between Waveform Display Mode and Digital Display Mode.

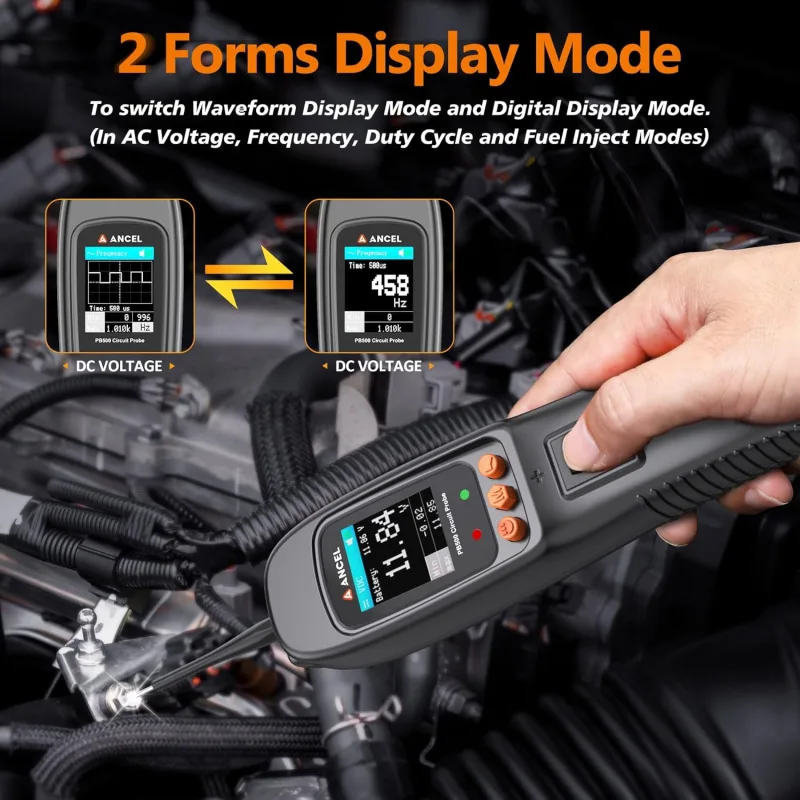

2 Forms Display Mode
To switch Waveform Display Mode and Digital Display Mode. (In AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes)

ANCEL PB500 Description:
Ancel PB500 has 7 test modes: DC Voltage, AC Voltage, Frequency, Duty Cycle, Fuel Injection Circuit Detection, Resistance, and Diode. Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button to switch between Waveform Display Mode and Digital Display Mode. After the power is turned on, short press the mode button to enter the menu, select the test mode by pressing the up and down K~ys, and then press the mode button to enter the desired test mode.

ANCEL PB500 Features
DC voltage range : 0-65V +1 digit;  Resistance range : 0–200 KΩ;  Frequency response of tone passage: 0Hz to 10Khz.

Performs multi-service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation

Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip

Component activation with a flip of the power switch,

Instantly identifies positive, negative and open circuits

Test bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses

Instantly checks continuity of switches, relays and diodes

Circuit breaker protected

Extra 20ft (extendable) cable provides excellent accessibility to test along the vehicle

Built-in Flashlight, work in the dark

Simple button design

More Useful Features
