ANCEL BA101 12V Car Battery Tester Analyzer Automotive Battery Load Tester 100-2000CCA Charging Circuit load Diagnostic Tools

ANCEL BA101 12V Automotive Car Battery Tester Battery Load Tester for Car Motorcycle 100-2000CCA Digital Analyzer Tester Tools

ANCEL BA101 Battery Tester adopts currently the world's most advanced conductance testing technology to easily， quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery， healthy state of the battery itself， and common fault of the vehicle starting system and charging system， which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.

Wide Range of Application of ANCEL BA101 Battery Tester
ANCEL BA101 can test 12V batteries, suitable for a variety of common models and equipment.

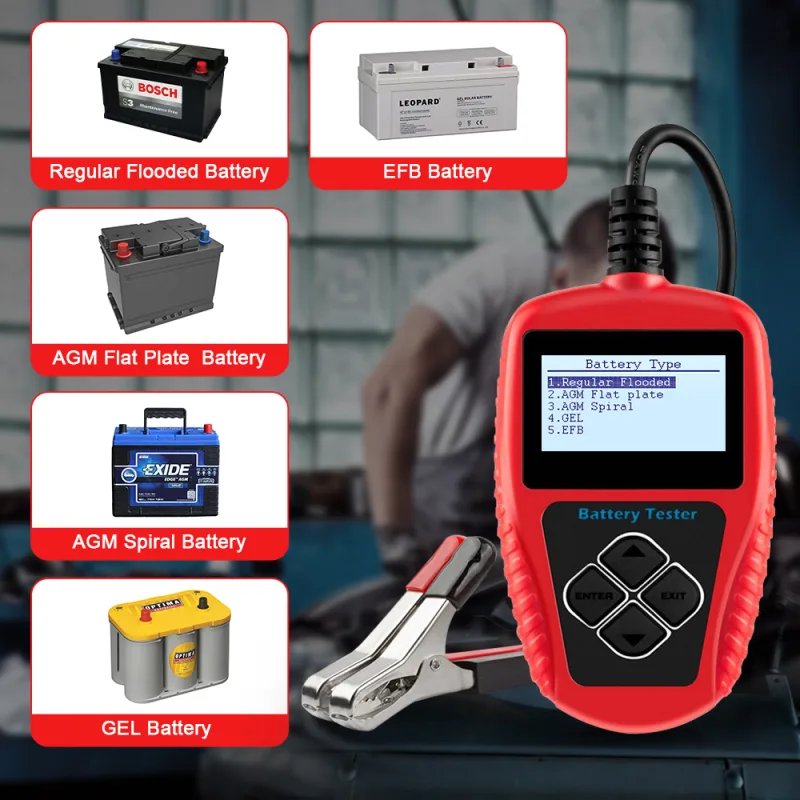

ANCEL BA101 supports test all automotive cranking lead acid battery， including ordinary lead acid battery， AGM flat plate battery， AGM spiral battery，and Gel battery， EFB battery， etc.

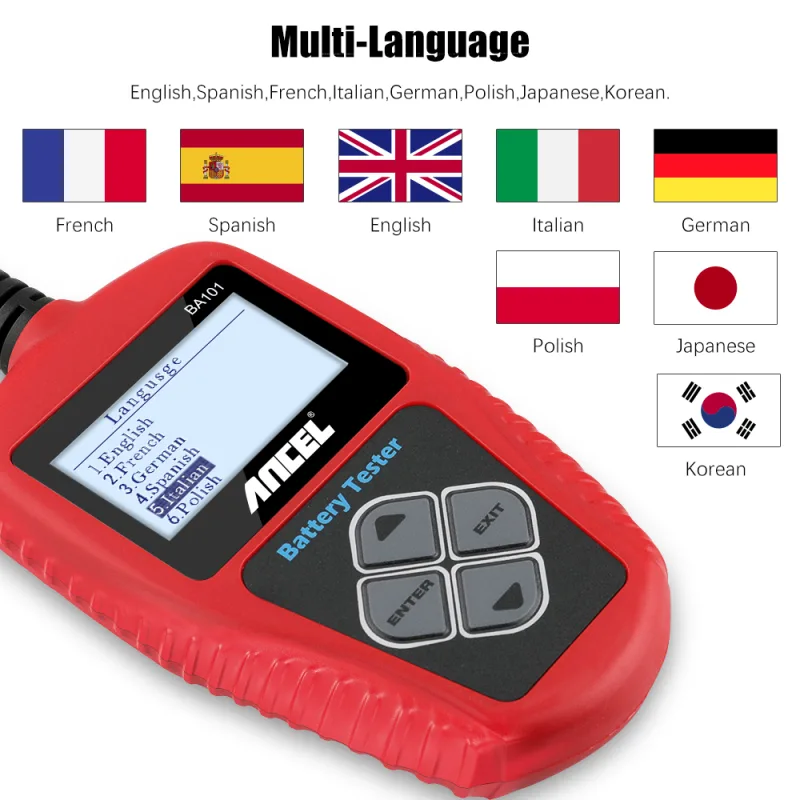

Ancel BA101 has Two Multi-Language Version
1.European Version: English, Spanish, French, German, Italian, Polish

2.Asian Version: English,Japanese, Korean, Chinese

Top Reason to Chose ANCEL BA101 Car Battery Tester
1. Accurate tester result in miliseconds (tolerance ±15)

2. BA101 can test CCA 100-2000, 30-220Ah, which is the highest CCA in the market

3. Test batterues on and off the vehicle

4. Battery life analysis, Life in percentage (%),Internal resistance value (m),Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

5. Testing standards include currently the world's majority of battery standards，CCA， BCI， CA， MCA， JIS， DIN， IEC，EN，SAE，GB.

6. Easily read LCD screen display

7. Quick test - input battery volume (AH), then it can show the battery status.

8. vehicle cranking system test - cranking time, voltage and status.

9. vehicle charging system test - load voltage, unloaded voltage, ripple status and charging system status.

10. Store the testing result, print function

Notice:
the device don't need charge.The USB port is only for printed data, when you connect the USB port, the device screen is in white color, it's normal, not quality problem.

ANCEL BA101 Functions:
1. Test Results: Good or Replace

2. Internal resistance value (m)

3. Life in percentage (%)

4. Cranking system

5. Charging system

6. Operating Parameters:

7. System voltage: 12 Volts

8. Input voltage range: 9V~15V

9. Power requirements: No internal batteries required

10.Capacity: Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating

ANCEL BA101 Function:

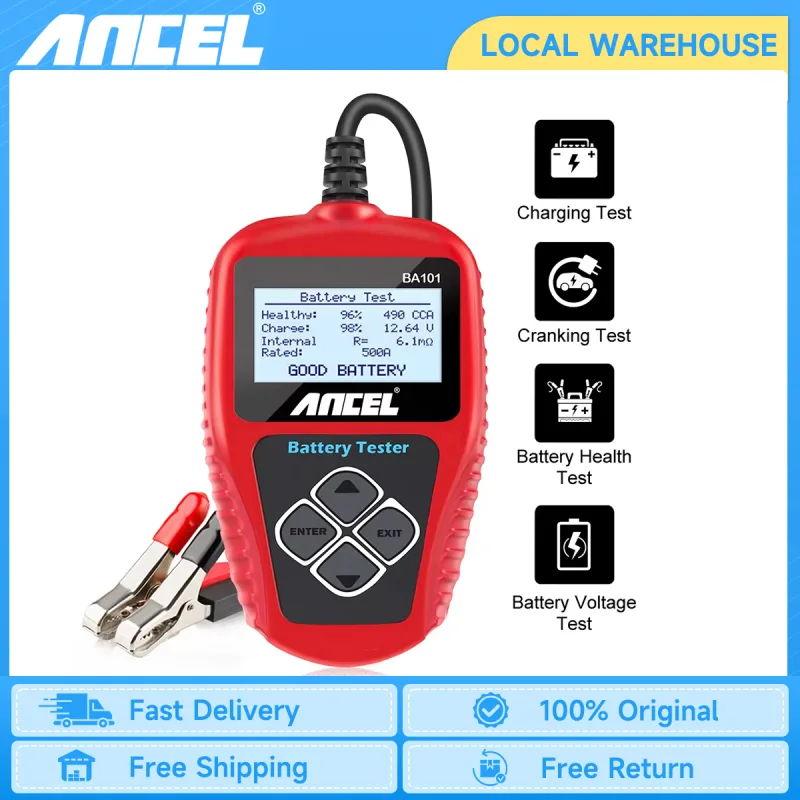

Main functions of BA101 battery tester include： battery test，cranking test，charging test and other additional functions.

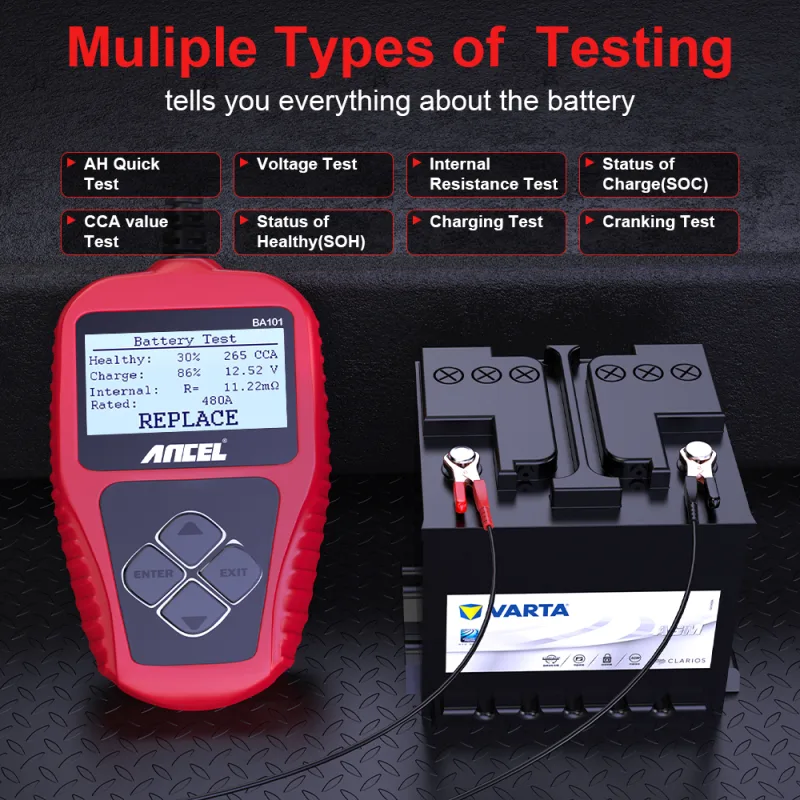

Battery Test
is mainly targeted to analyzethe battery healthy status to calculate the actual cold cranking capability of the battery and the
aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. It notifies the user to replace battery in advance when the battery getting aged.

Cranking Test
is mainly to test and analyze the starting motor. Through testing the actual required cranking current and cranking voltage of the starting motor，it can find out whether the starting motor works fine. There are several reasons why the starting motor is abnotmal: lubricating system fault causing the starting loaded torque increasing or rotor friction of the starting motor causing the in creasing friction of the starting motor itself.

Charging Test
is to check and analyze the charging system， including generator，rectifier，rectifier diode， etc.， thus to find out whether the output voltage of the generator is normal， the rectifier diode works fine and the charging current is normal. Suppose one of the above mentioned parts is not in normal situation， it will lead to over charge or incomplete charge of the battery， thus the battery will be quickly damaged and also greatly shorten the using life of other loaded electrical appliance.

ONE-CLICK QUICK TEST

It can make sure the battery stat…
