7Pcs Timing Chain Lock Turbo Tool Kit For Vauxhall Opel Astra J Corsa D 1.2 1.4

Control Chain Tool Camshafts for Opel Astra J Corsa D Meriva Mokka Adam

Introduction:
Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain.
Fitted to the for Vauxhall for Opel twin Cam engines below.
Removal of the timing chain will require the removal of the sump.
Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held.
In the retracted position using a suitable pin. Remove the crankshaft pulley using an appropriate pulley holding tool.

Application:
For Vauxhall / for Opel Adam 1.2 1.4 (2012- 2020),
For Vauxhall / for Opel Ampera 1.4 (2011- 2020)
For Vauxhall / for Opel Astra-J 1.4 (2009-2020)
For Vauxhall / for Opel Corsa-D 1.0 1.2 1.4 (2009-2020)
For Vauxhall / for Opel Cascada 1.4 (2013-2020)
For Vauxhall / for Opel Insignia 1.4 (2011-2020)
For Vauxhall / for Opel Meriva-B 1.4 (2010-2020)
For Vauxhall / for Opel Mokka 1.4 (2012-)
For Vauxhall / for Opel Zafira-C Tourer  1.4 (2011-2020)
For Chevrolet Aveo1.2 1.4 (2011-2020)
For Chevrolet Cruze 1.4 (2011-2020)
For Chevrolet Orlando 1.4 (2012-2020)

Fit for:
For Vauxhall / for Opel :
Model            Engine code                Year
Adam                   1.2 /1.4                    2012-
Ampera                1.4                           2011-
Astra-J                 1.4                           2009
Corsa-D               1.0 /1.2/ 1.4             2009-
Cascada                1.4                          2013-
Insignia                1.4                          2011-
Meriva-B              1.4                          2010-
Mokka                  1.4                          2012-
Zafira-C Tourer    1.4                           2011-

For Chevrolet:
Aveo                    1.2/ 1.4                     2011-
Cruze                   1.4                            2011-
Orlando               1.4                             2012-

Reference OE/Part Number
KM-952
KM-953-A
EN-499-78
EN-49977-100
EN-49977-200
KM-955-2
KM-955-1

Engine Code:
1.0: A10XEP (LDB)
1.2: A12XEL (LWD), A12XER (LDC)
1.4: A14XEL (L2Z), A14XER (LDD), LDU
1.4(T): A14NEL (LUH), A14NET (LUJ), Twinport / ecoFLEX engines

Engine Codes:
LWD, L2Z, LDD, LUU/A14XFL, LDD/A14XER, LDD/A14XEL, LUJ/114NET, LUJ/A14NEL, A10XEP, A12XEL, A12XER, A14XEL, A14XER, A14NEL, LUJ/A14NET, LDD/A14XER, LUJ/A14NET, LUH/A14NEL, LUJ/A14NET, LUJ/A14NEL, L2Q/A12XEL, LDC/A12XER, LWD/A12XEL, LDD/A14XEL, LDD/A14XER

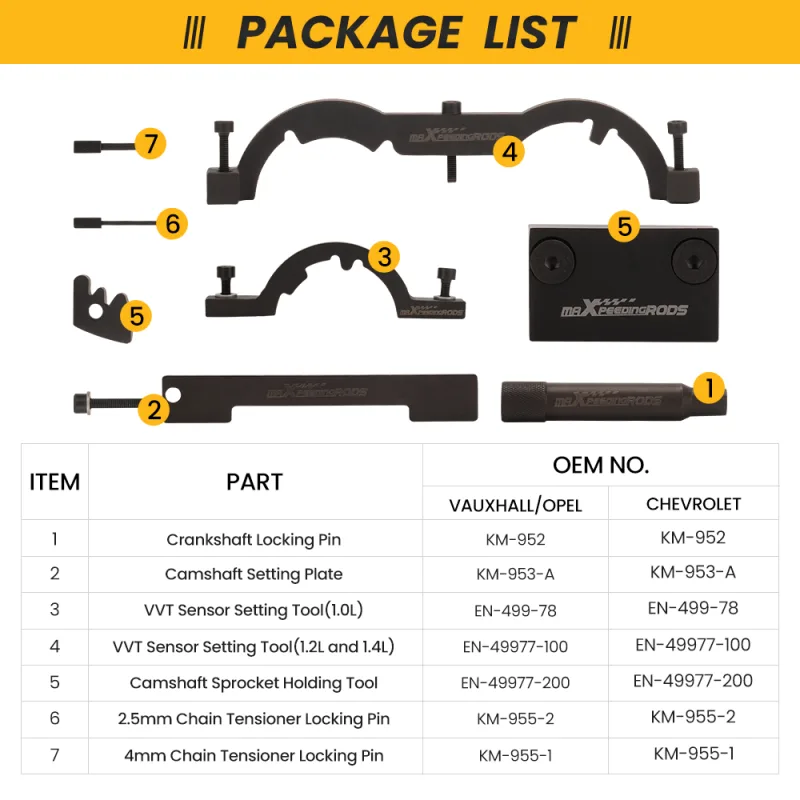

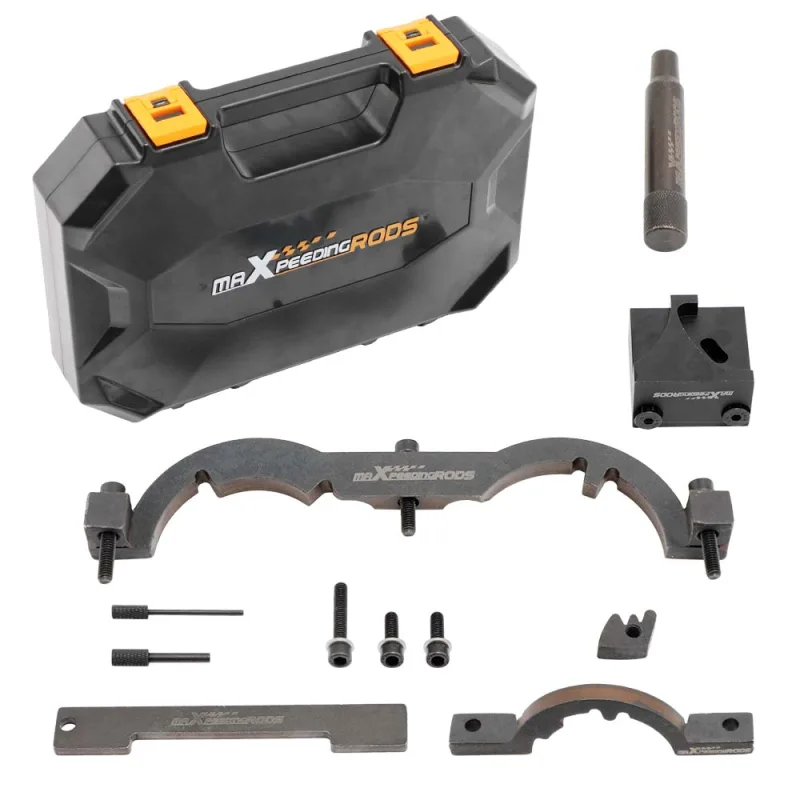

Parcel Inlcluding:
Crankshaft Locking Pin
Camshaft Setting Plate
VVT Sensor Setting Tool (1.0L)
VVT Sensor Setting Tool (1.2 & 1.4L)
Camshaft Sprocket Holding Tool
4mm Chain Tensioner Locking Pin
2.5mm Chain Tensioner Locking Pin
Gross weight: 2.32kg
Package size: 36*29*11cm

Function:
Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain
fitted to the for Vauxhall for Opel twin Cam engines below.
Removal of the timing chain will require the removal of the sump.
Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held
in the retracted position using a suitable pin. Remove the crankshaft pulley using an appropriate pulley holding tool.

Feature:

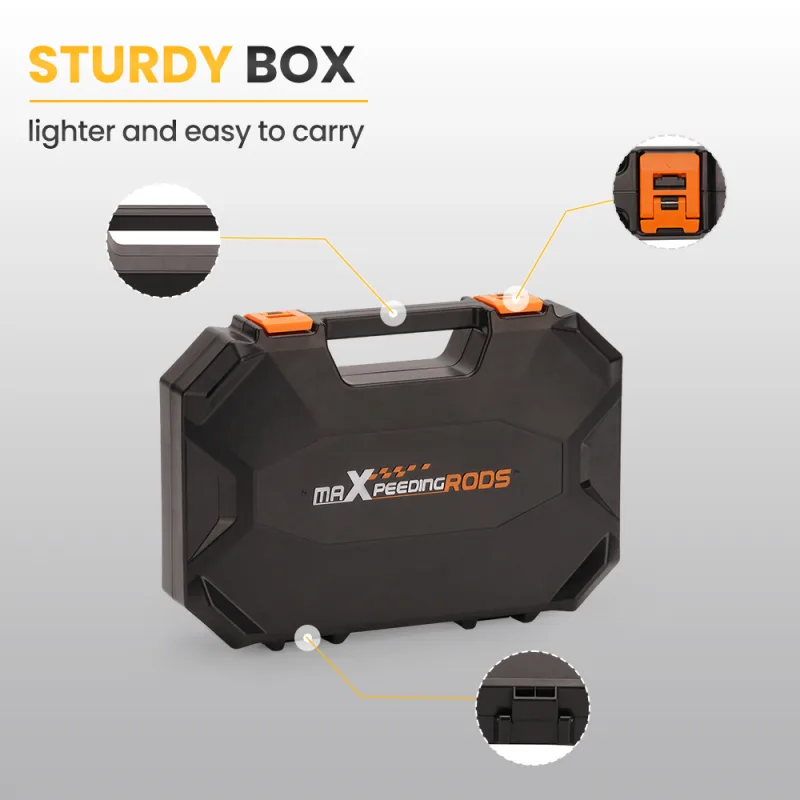

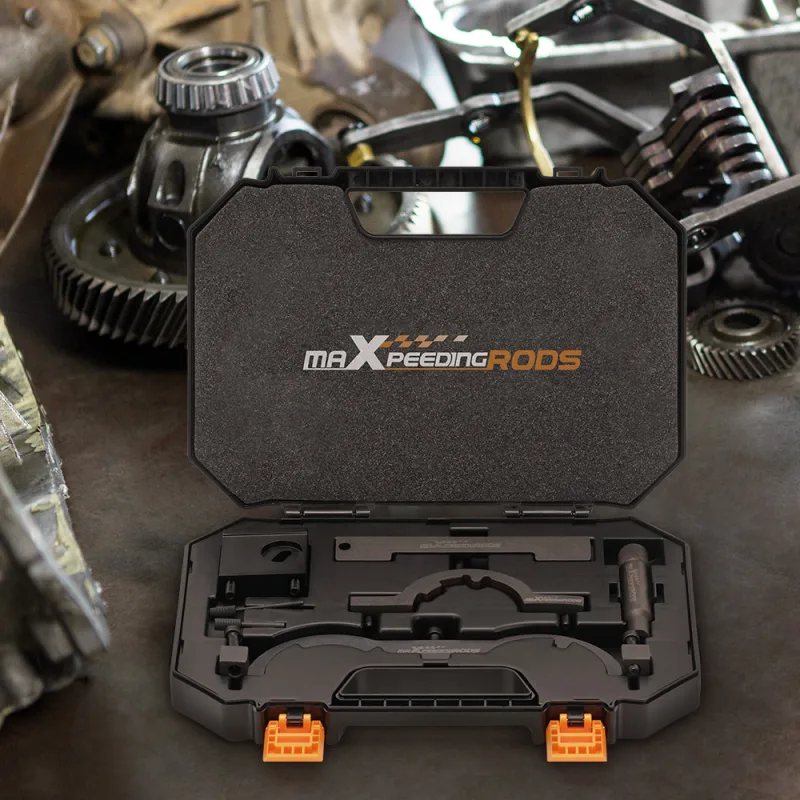

1.The product is stored in a plastic toolbox, which is lighter and easy to carry.
2.Shorten repair time.
3.Save maintenance costs.
4. Professional instruction included.

Notice:
It is an aftermarket tool, it serves as a replacement of the original tool.
If you have any questions, please feel free to contact us at any time.

Box Color: The color of the box is random
