Manual Hydraulic Jack 10000psi

Description

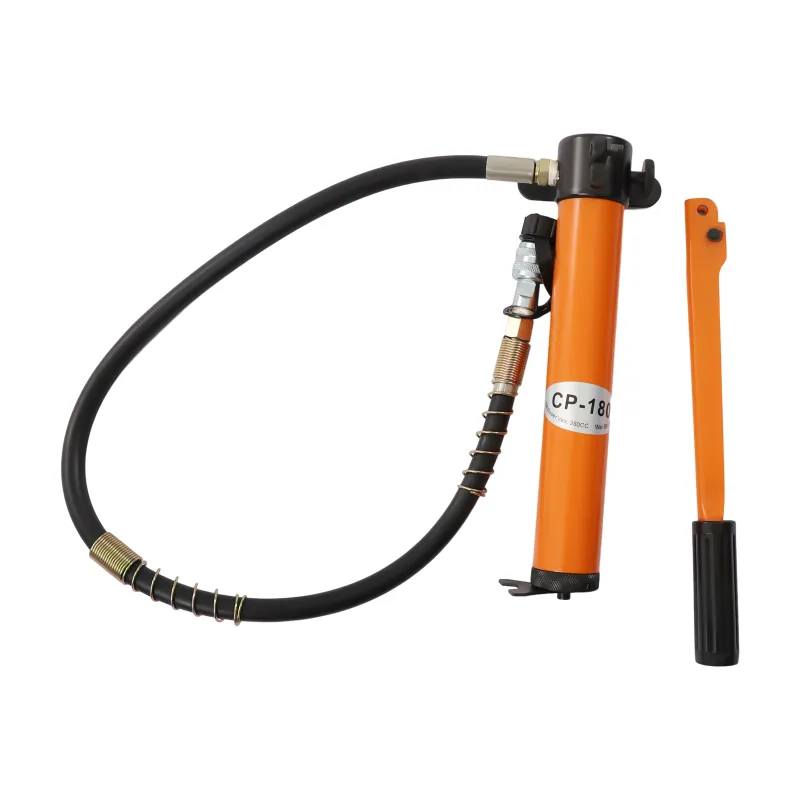

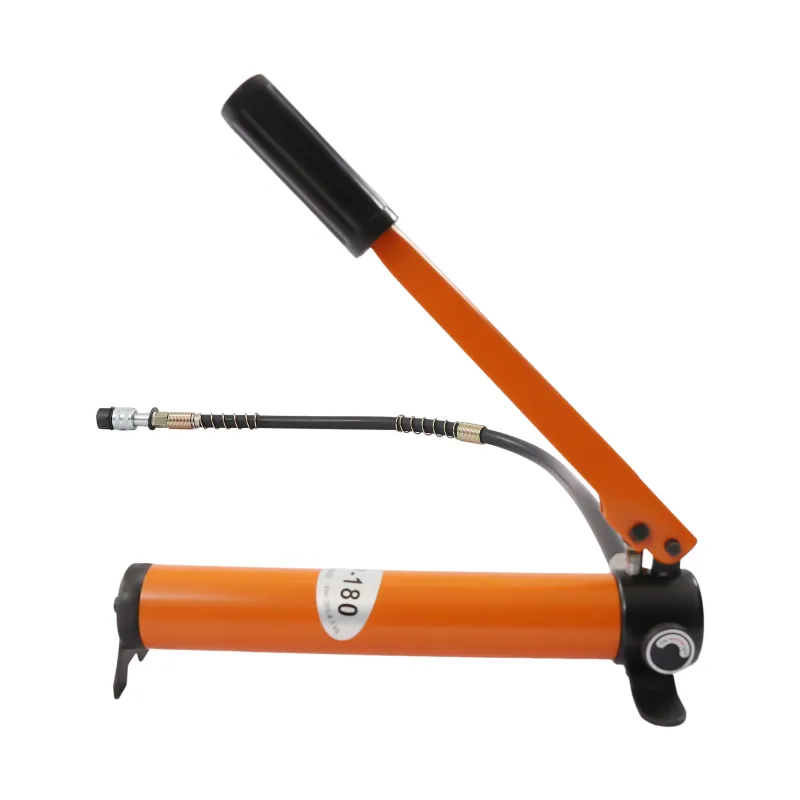

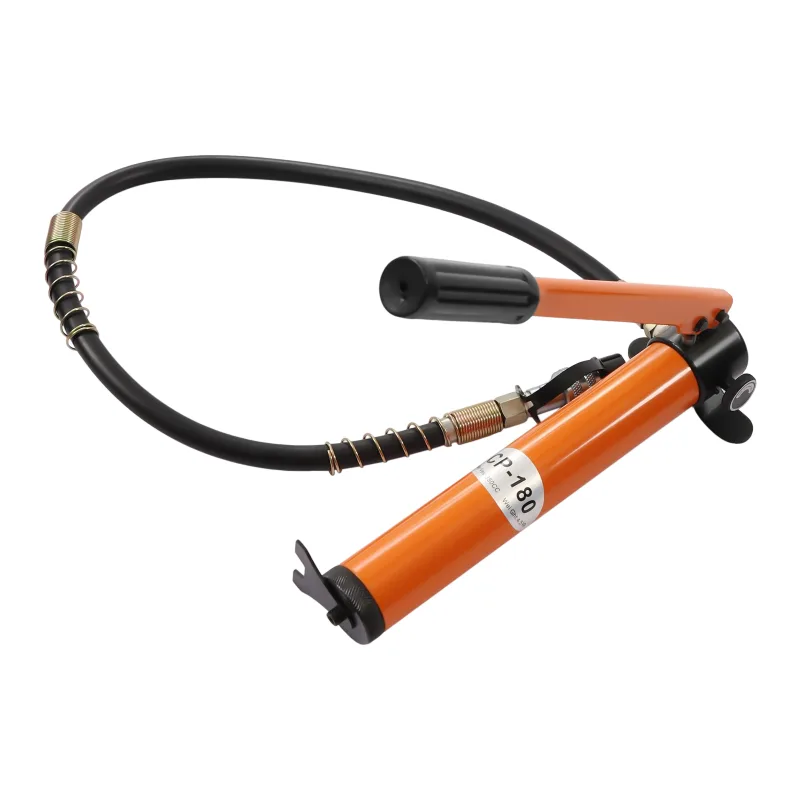

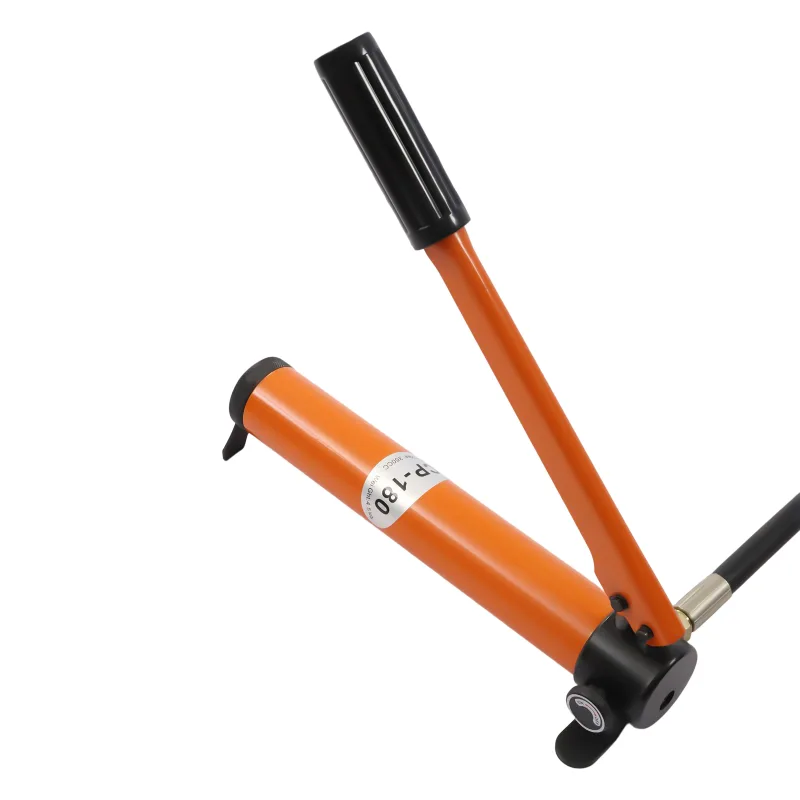

A CP-180 manual hydraulic pump is a small hydraulic pump that converts manual mechanical energy into hydraulic energy. This manual hydraulic pump is made of high-end steel, which is corrosion-resistant and makes the whole body smooth and easy to clean. In addition, it has a strong anti-strike ability, so it has high strength and is not easy to deform. And it's very powerful, so you can use it easily.

Key Features

Large Reservoir Capacity: It has a reservoir capacity of 350cc, so you can use it easily without frequent refilling.

User-friendly: The manual hydraulic pump has a long ergonomic operating handle for a smoother, more comfortable grip during use. Its thickened insulation feature also provides non-slip protection for long-term use.

Easy to Operate: Its structure is not complicated and does not require tedious operation steps, so you can easily master it. And it does not need to be plugged in and can be used with a variety of split products, making it easier to use.

Strong Power: Its maximum operating pressure can reach 70Mpa, making it more powerful than other similar machines, and making it easier for you to use. It not only has a smooth surface, but also has good sealing and no oil leakage.

Compact and Lightweight: Its proper size and weight (3.5kg/7.72lbs) allow it to follow you through various operations.

Durable Material: The item is made of steel, which is relatively strong and stable. It is also not easy to damage or rust under proper use and is very durable.

Smooth Surface: Its steel surface with plastic spraying can resist corrosion and does not rust. The smooth surface greatly reduces the friction between machines.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Steel Wire Joint Sheath: Its joint is equipped with steel wire protection, which can effectively avoid damage caused by excessive bending of the joint oil pipe so that it can be used for a long time.

Thickened Plunger: The thickened design of the plunger increases its wear resistance, which can effectively increase the service life of the manual hydraulic pump.

Dust Cover: The joint is equipped with a dust cover for you to prevent dust from entering and damaging the pump when you are not using it.

High-pressure Oil Pipe: It adopts a high-pressure oil pipe (1m/ 3.3ft) and attaches a quick joint（ZG3/8''）, which makes it convenient and fast for you to use.

Application

It can be used with hydraulic punches, hydraulic cutting machines, hydraulic cylinders, hydraulic tongs, etc. to perform various operations, such as lifting, bending, straightening, shearing, riveting, assembly, disassembly, etc.

How to Use

1. Open the dust cover and connect it to the male connector of other tools.

2. Connect the connectors tightly to avoid leakage.

3. Tighten the pressure relief valve switch clockwise before use.

4. Press the handle back and forth.

5. Then the piston of the cylinder will rise.

6. Loosen the pressure relief valve switch counterclockwise.

Specifications

Name: Manual Hydraulic Pump

Model: CP-180

Color: Orange

Material: Steel

Surface Treatment: Plastic Spraying

Condition: Brand New

Type: Manual

Oil Reserves: 350CC

Maximum Pressure: 70Mpa（700kg/ cm²）

Low-Pressure Speed: 2L/ s (0.44Gal/ s)

High-Pressure Speed: 0.2L/ s (0.044Gal/ s)

Tubing Connector: ZG3/8''

Pump Body Length: 33cm/ 13in

Pump Body Height: 11cm/ 4.3in

Handle Length: 34cm/ 13.4in

Hose Length: 1m/ 3.3ft

Package Size: 37.5*22.5*16cm/ 14.76*8.86*6.3in

Net Weight: 3.5kg/ 7.72lbs

Gross Weight: 4kg/ 8.82lbs

Package Included

1* Manual Hydraulic Pump

1* 1m Hose

1* Handle

Notes

1. Please note that there is a pressure-reducing valve on the cylinder head, which should be loosened during use to avoid sealing the hydraulic cylinder.

2. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
