Nobsound VU102 2(1)-IN-1(2)-OUT Audio Selector Speaker Splitter Amplifier Switcher VU Meter with Remote Control



Features

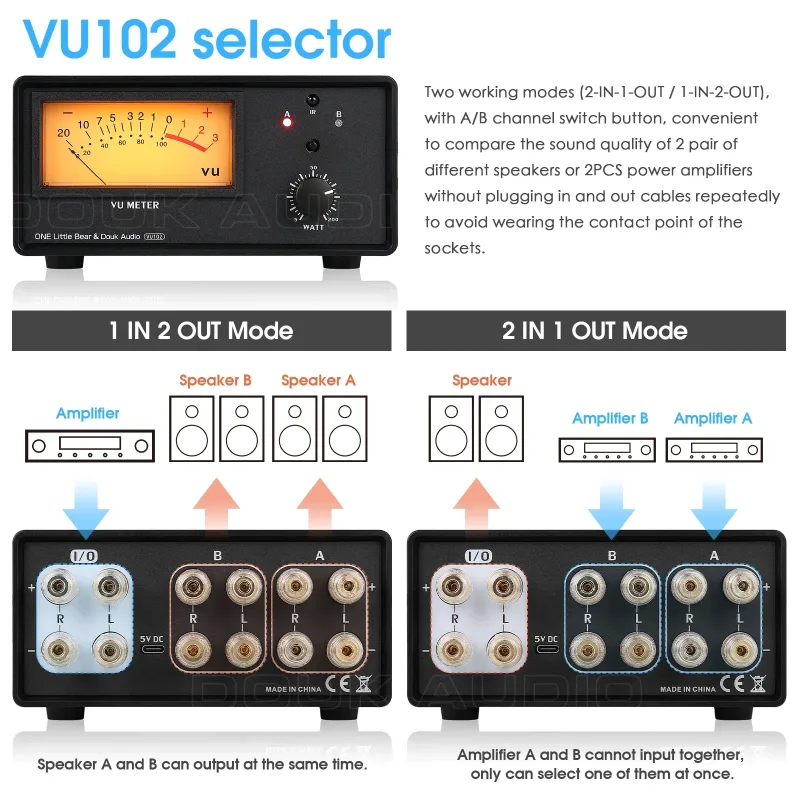

VU102 amplifier / speaker selector: two working modes (2-IN-1-OUT / 1-IN-2-OUT), with A/B channel switch button, convenient to compare the sound quality of 2 pair of different speakers or 2PCS power amplifiers without plugging in and out cables repeatedly to avoid wearing the contact point of the sockets.

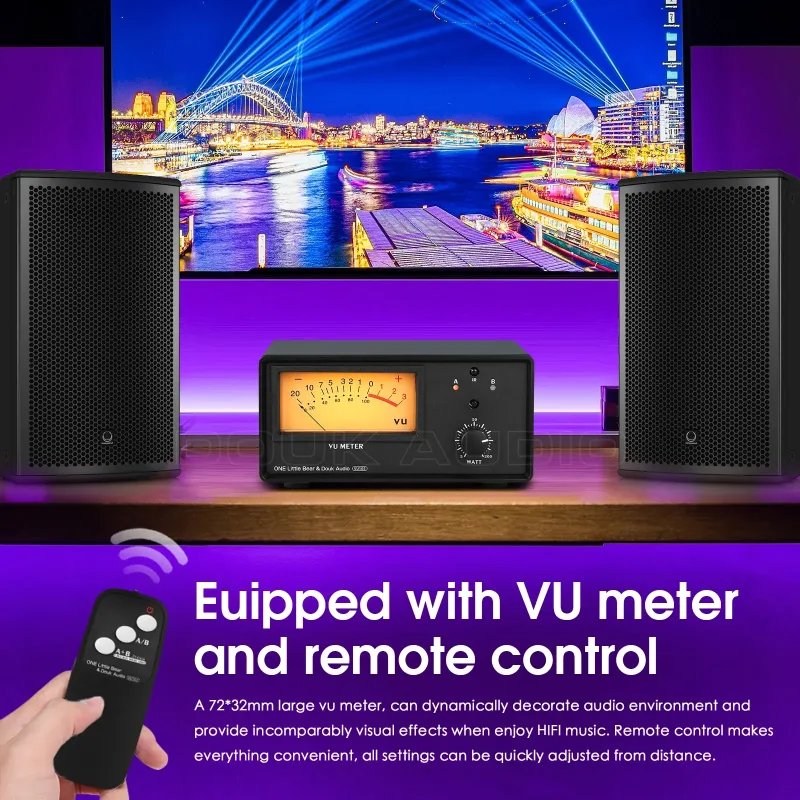

Euipped with VU meter and remote control: a 72*32mm large vu meter, can dynamically decorate audio environment and provide incomparably visual effects when enjoy HIFI music. Remote control makes everything convenient, all settings can be quickly adjusted from distance.

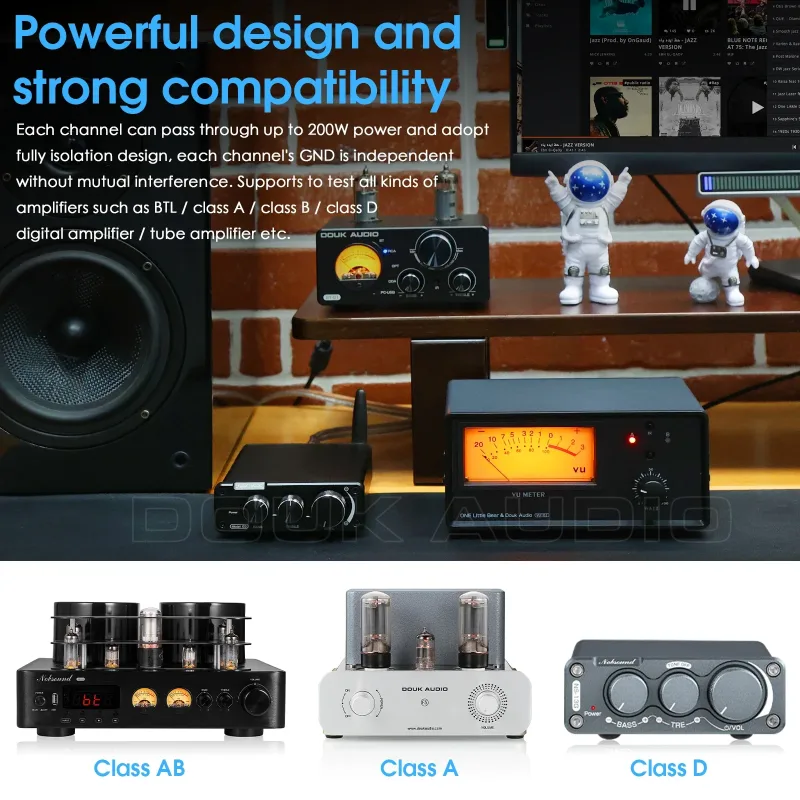

Powerful design and strong compatibility: each channel can pass through up to 200W power and adopt fully isolation design, each channel's GND is independent without mutual interference. Supports to test all kinds of amplifiers such as BTL / class A / class B / class D digital amplifier / tube amplifier etc.

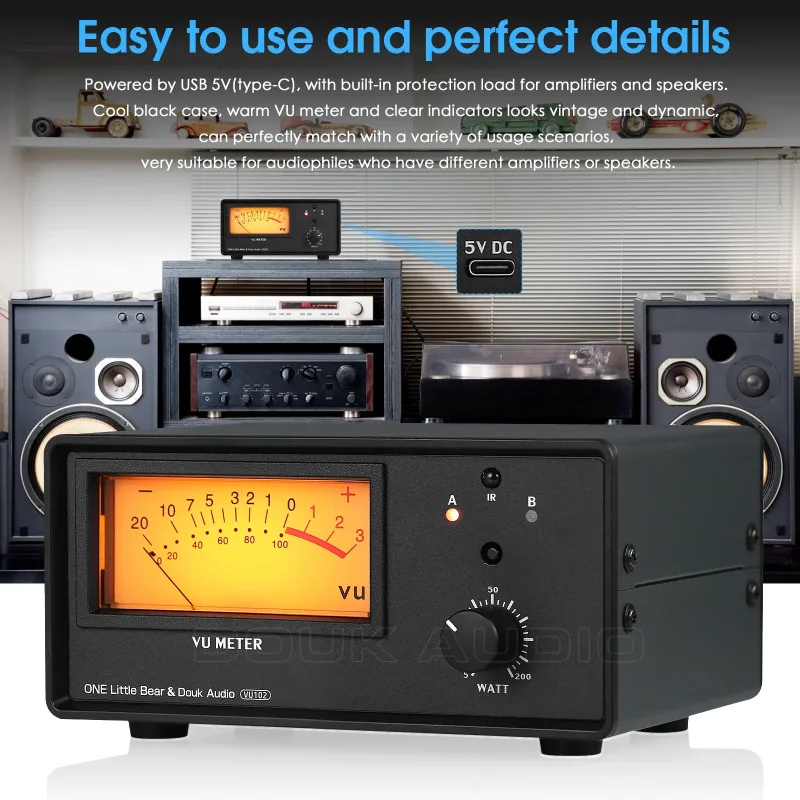

Easy to use and perfect details: powered by USB 5V(type-C), with built-in protection load for amplifiers and speakers. Cool black case, warm VU meter and clear indicators looks vintage and dynamic, can perfectly match with a variety of usage scenarios, very suitable for audiophiles who have different amplifiers or speakers.

Warm Tips:
1. For safer and faster delivery, the remote control may not include batteries (2*AAA), also without DC 5V power adapter, please prepare by yourself.
2. When in 1-IN-2-OUT mode, A/B channel (two pairs of speakers) can work at the same time. But in 2-IN-1-OUT mode, not support 2 amplifiers working at the same time otherwise the amplifiers may be damaged.
3. There will be relatively loud noise when switching A/B channel, this is normal, no worries.

Parameters
Audio input/output: 3 groups of banana female

Working mode: 2-IN-1-OUT / 1-IN-2-OUT

Amplifier type supported: all kinds of type (BTL /Class A /Class AB /Class B / Class D digital amp / tube amp etc.)

Max. through power of each channel: 200W

Amplifier no-load protection: support

Remote control function: support

Settings saved after shutdown: support

Working voltage: DC 5V (above 1A)

Power interface: Type-C

Diameter of VU meter: 73*32mm / 2.87*1.26

Dimensions(W*D*H): 149*105*75mm / 5.87*4.13*2.95in

Package dimensions(W*D*H): 8.27*7.28*3.94in

Net weight: 664g / 1.46lb

Package weight: 900g / 1.98lb

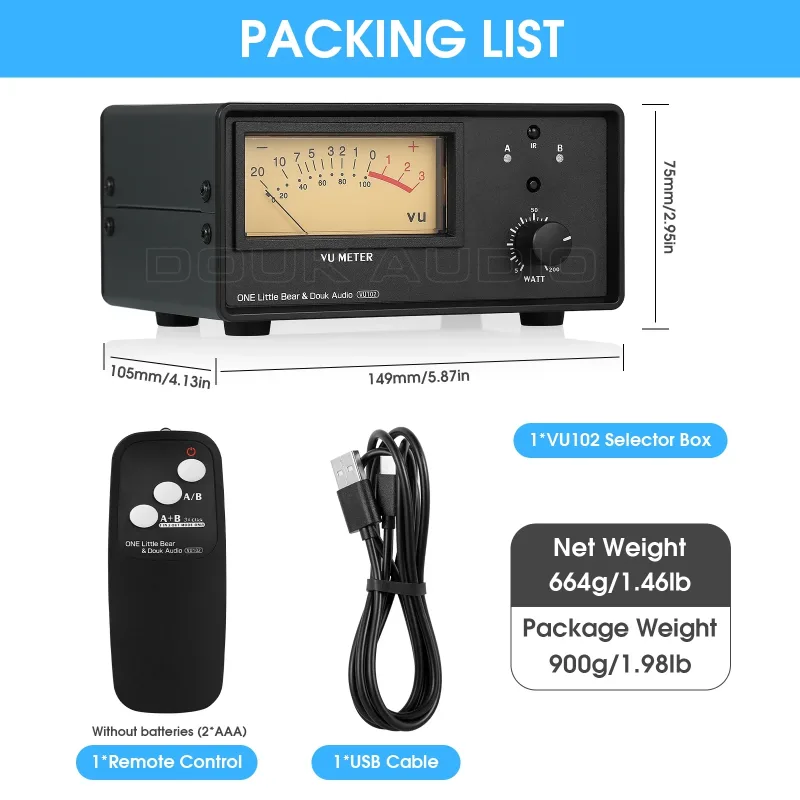

Packing List
1*VU102 Selector

1*Remote Control (without battery)

1*USB Cable

1*User Manual
