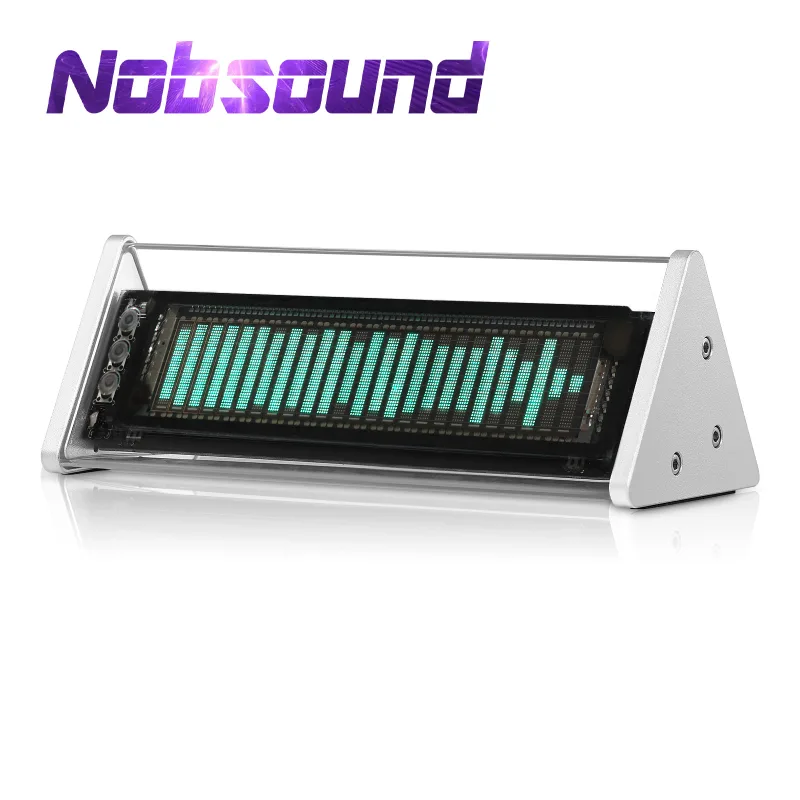

Nobsound Bluetooth 5.0 VFD Clock Music Spectrum Display Screen Sound Level Meter 3.5mm AUX Audio Switcher Box



Features

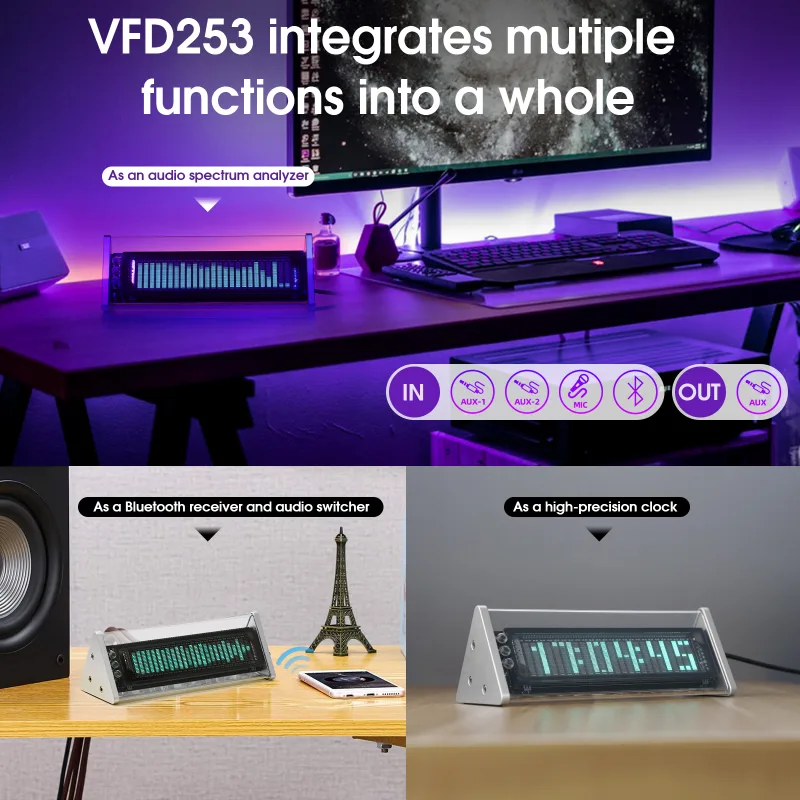

VFD253 integrates mutiple functions into a whole:
As an audio spectrum analyzer: adopts dedicated green VFD display screen with 25 × 15 high resolution, guarantee the accuracy of each frequency band.
As a Bluetooth receiver and audio switcher: besides microphone pickup, also with Bluetooth 5.0 and 2 groups of 3.5mm AUX input, works perfectly with your phone/PC/game player/amplifier/speaker etc.
As a high-precision clock: using RX8025T built-in crystal oscillator whose clock accuracy is ±3ppm, year error within 1 minutes, very cool and interesting.

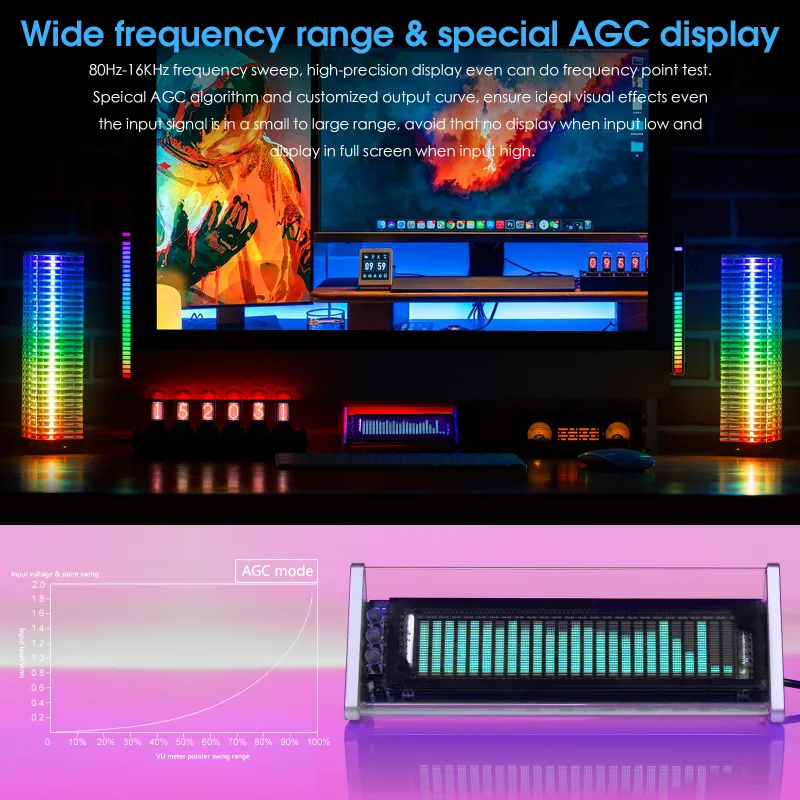

Wide frequency range & special AGC display: 80Hz-16KHz frequency sweep, high-precision display even can do frequency point test. Speical AGC algorithm and customized output curve, ensure ideal visual effects even the input signal is in a small to large range, avoid that no display when input low and display in full screen when input high.

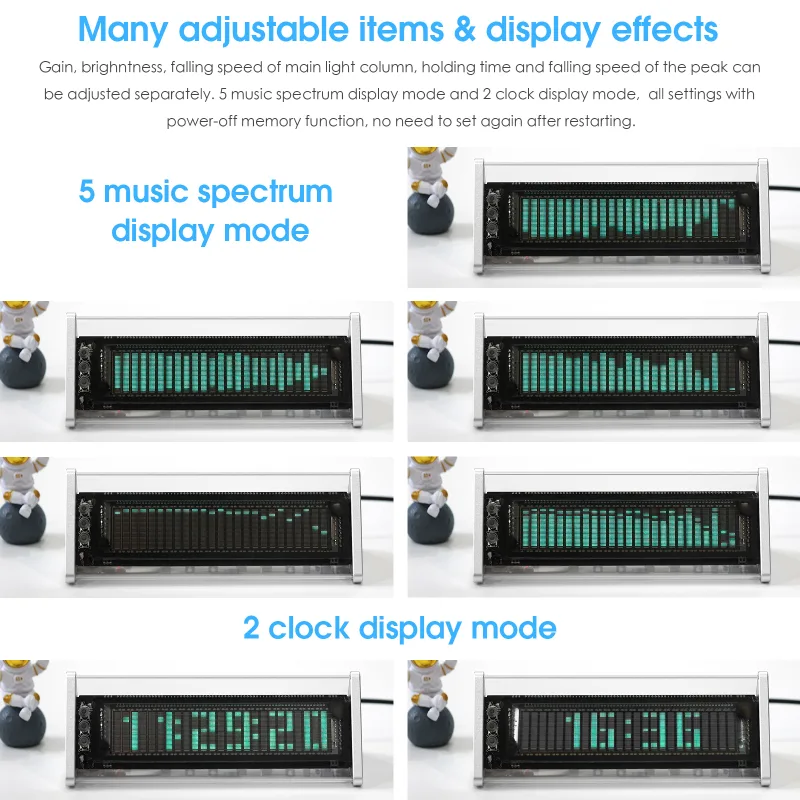

Many adjustable items & display effects: gain, brighntness, falling speed of main light column, holding time and falling speed of the peak can be adjusted separately. 5 music spectrum display mode and 2 clock display mode,  all settings with power-off memory function, no need to set again after restarting.

Attractive looking and convenient use: with remote control, easy to adjsut all settings and see the music level status in real time and every slight change of sound.CNC machined aluminum and transparent acrylic case, both solid and beautiful, compact design not occupy your desktop space.

Warm tips:
1. For safe shipping, the remote control may not include batteries (2*AAA), please prepare by yourself.
2. 3.5mm AUX1 and 3.5mm AUX2 cannot input at the same time, only one audio source channel (MIC / Bluetooth /  IN1 / IN2) can input at a time.
Parameters
Display screen: VFD (Vacuum Fluorescent Display)

Resolution: 25 × 15

Frequency range supported: 80Hz-16KHz

Display item: music spectrum / clock

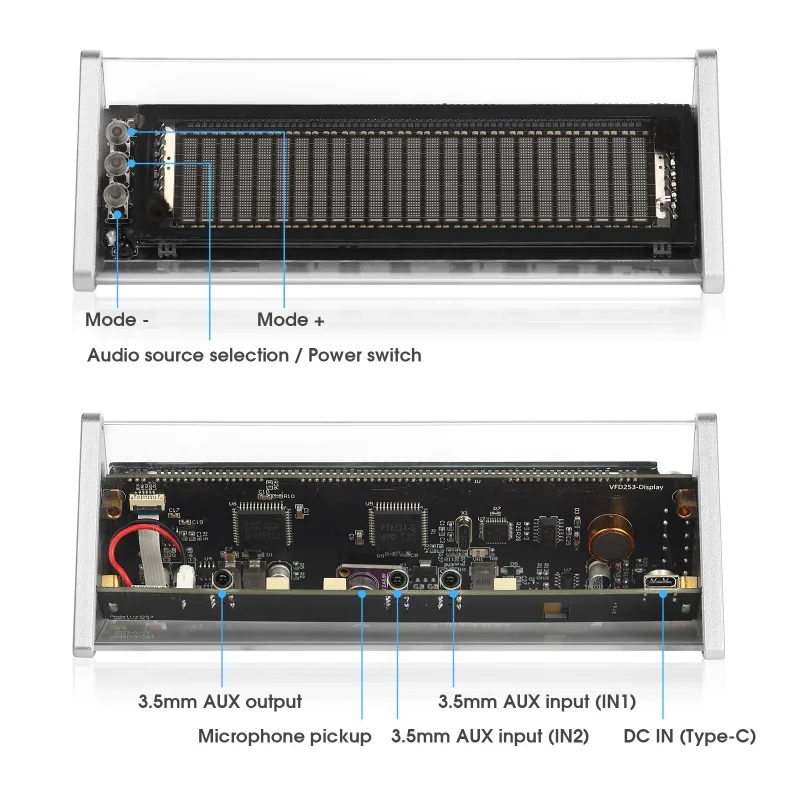

Audio signal input:  MIC / Bluetooth 5.0 / 2 groups of 3.5mm AUX

Audio signal output: 1 group of 3.5mm AUX

Work mode:
1. Auto mode (display music spectrum when music input, display clock mode when no music input)
2. Clock display mode (always)

Clock display: 2 kinds

Music spectrum display : 5 kinds

Music display mode: AGC+customized output curve (Real output / Smooth output)

Adjustable items: main light column falling speed / peak holding time / peak falling speed

Brightness adjustment: 5 levels+auto adjustment

Gain adjustment: 5 levels

Power-off memory function: support

Remote control: support

Working voltage: DC 5V

Dimensions(W*D*H): 184*75*66mm / 7.24*2.95*2.60in

Net weight: 322g / 0.71lb

Package weight: 500g / 1.10lb

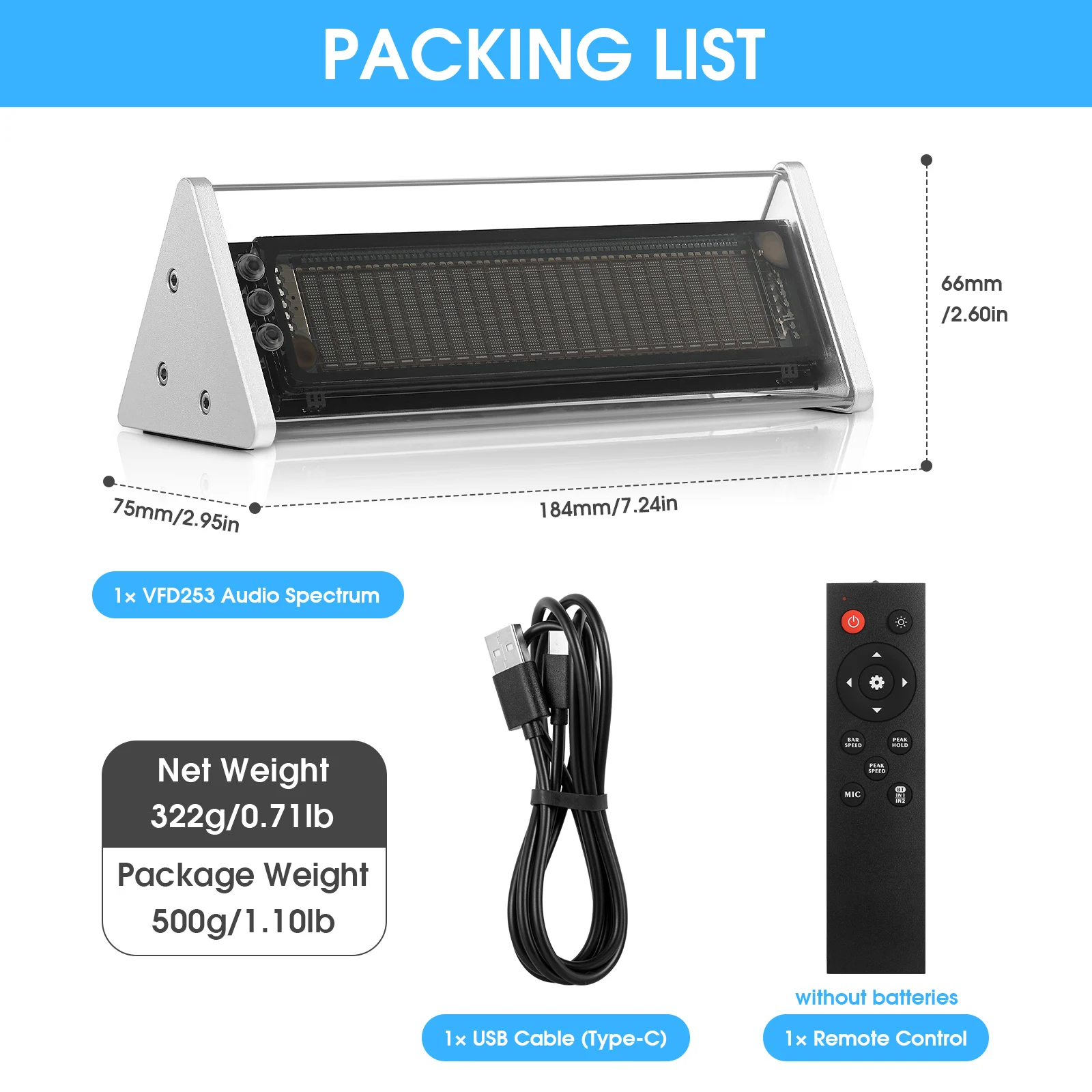

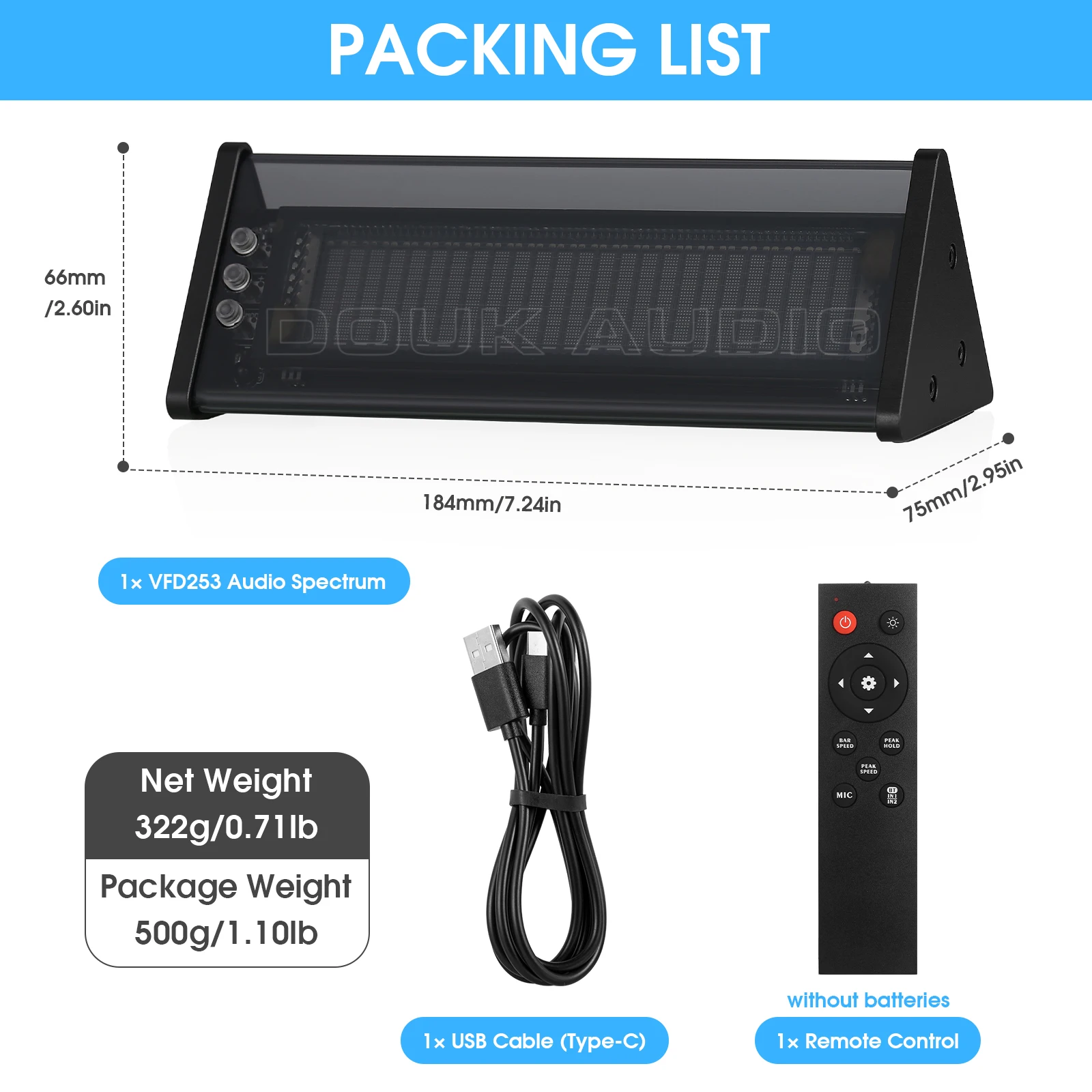

Packing List
1× VFD253 Audio Spectrum(optional)

1× USB Cable (Type-C)

1× Remote Control (without batteries)

2× Pad (stick to the bottom)

1× User Manual
