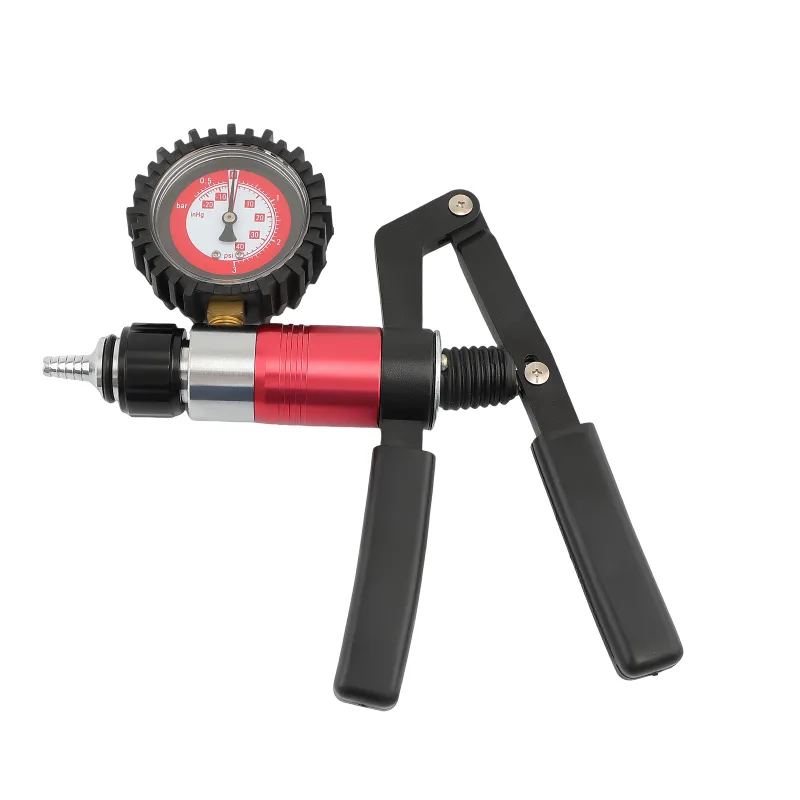

Hand Held Vacuum Pump Brake Bleeder Set Bleed Tester Tool Kit Car Bike 22pc Tool for Car Motorbike

22pcs Brake Bleeder Tester Tool Kit Vacuum Pump Motorcycle Bleeding Hand Pump

Application:
universally applicable for almost all cars
Suitable for checking pressure and vacuum systems such as: Checking charging pressure, vacuum solenoid valves, tank ventilation, MAP sensors, etc.
Thanks to extensive accessories (accessory caps and inserts) can also be used as brake vents
Print display range: +0 to +3 bar
Vacuum display range: -0 to -0.8 bar

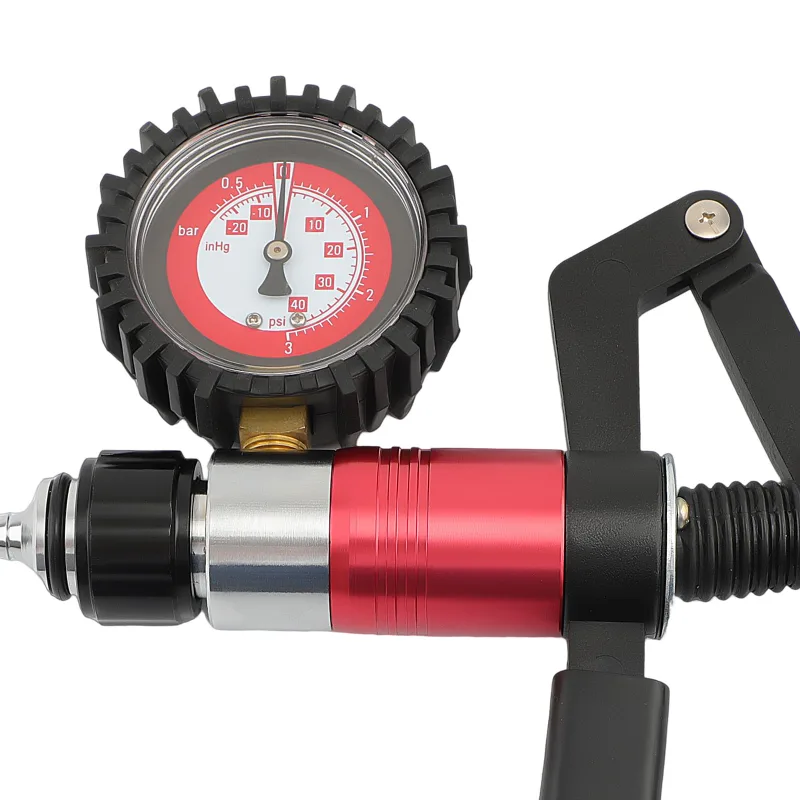

63.5 mm pressure/ vacuum manometer

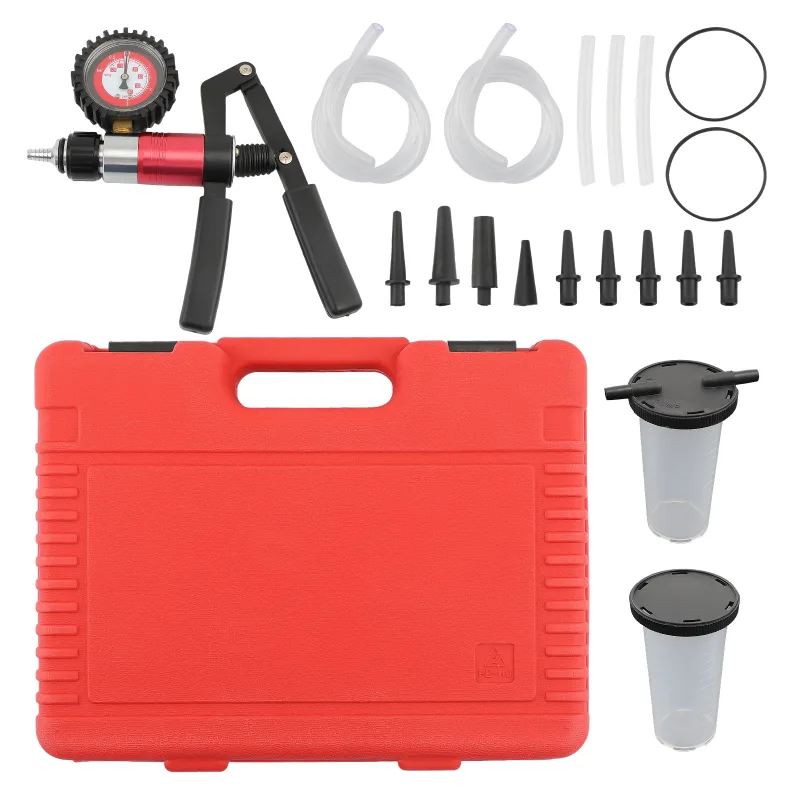

Included in the scope of delivery:
long hose: outer diameter: 9.5mm, inner diameter: 6mm, length: 60cm

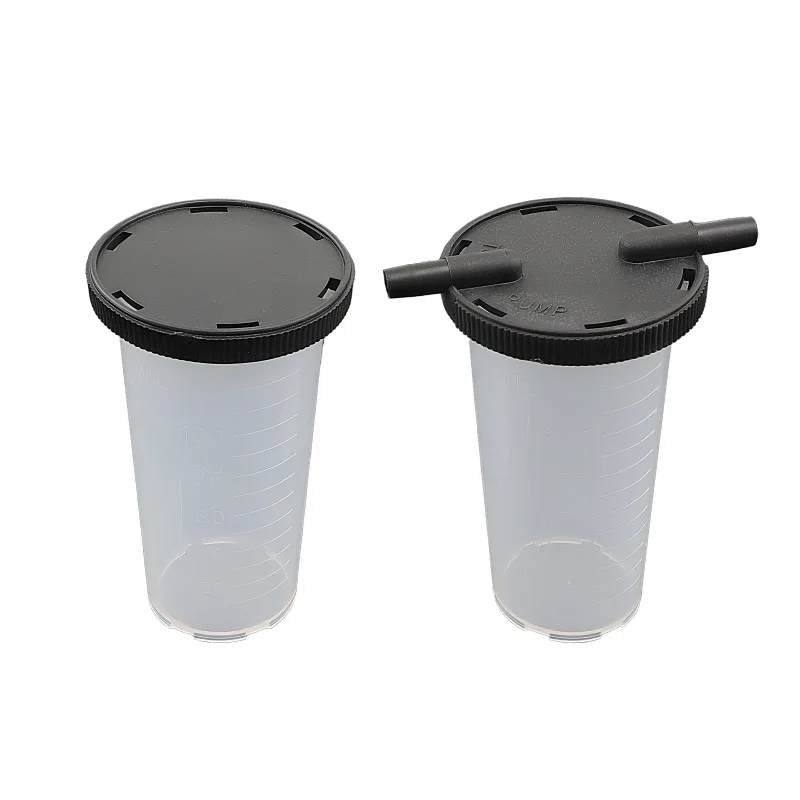

including 2 pieces 120 ml vent container

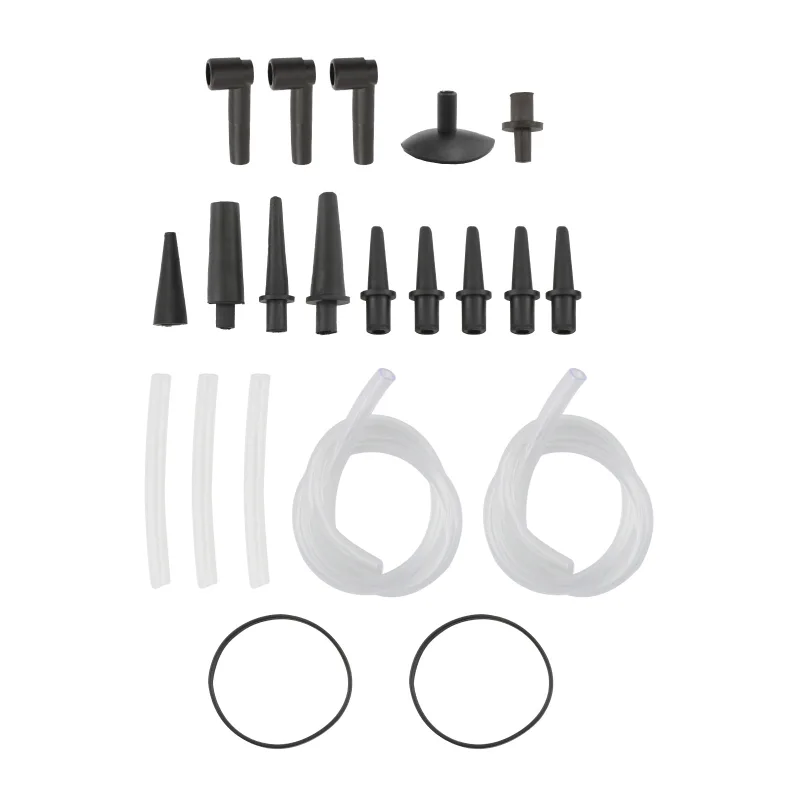

Hoses each with a length of 90, 75, 60 mm and 2 pieces 550 mm
Adapter 90° Vent nipple 2 pieces 7.5 mm, 1 piece 6 mm inner diameter
Adapter cone 8 pieces in different diameters and lengths
Adapter 1 piece from 7 to 5 mm diameter
Adapter 1 piece diameter 35 mm

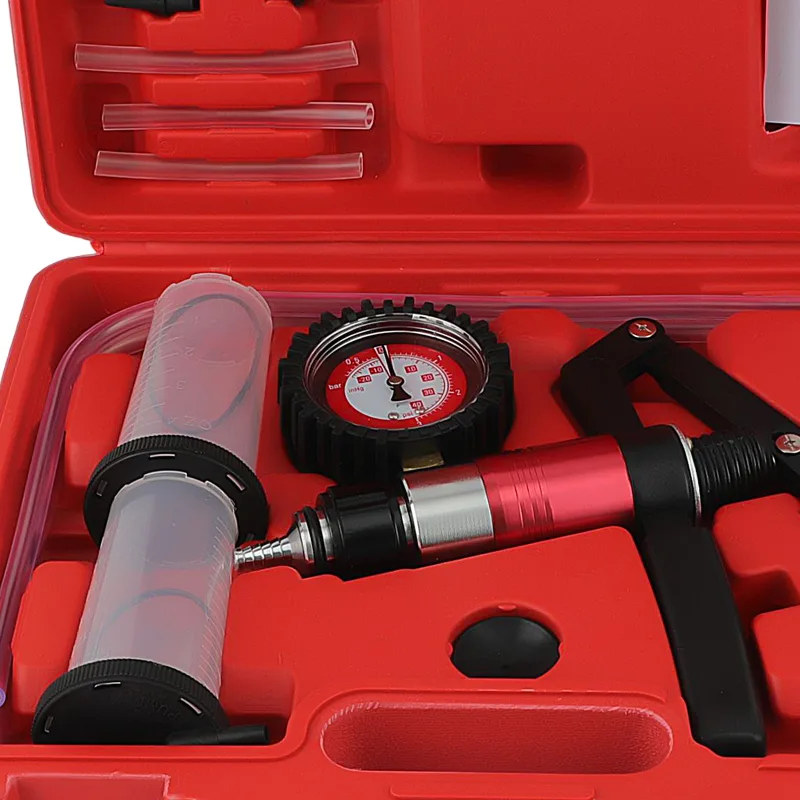

1x Plastic storage case

Specifications:
1xBrake vent pressure pump vacuum pump brake vent pressure tester hand car
Product type: Car brake vent
Material: plastic, metal
Installation: universal for most cars

Venting:
1. Make sure that the storage tank from the main brake cylinder is full and the container is open.
2. Connect the 50 mm long plastic hose to the lid of the vent container and place the lid on the vent container,
the short hose must now be in the container.
3. Connect the other 50 mm long hose
4. Connect one end of the long hose to the vent container and the other end with a matching "pipe" for the brake caliper vent nipple.
5. When venting, follow these manufacturer's guidelines. Generally, venting is in the following order:
A. Start with the wheel cylinder located the farthest away from the main brake cylinder, then the one at 2 farthest away, etc. For left-hand-driving vehicles
the order is usually: rear right, back left, front right and last front left.
B. Place the vent pipe on the vent nipple of the wheel brake cylinder or brake caliper.
C. Pump 10-15 times until a vacuum is created.
D. Open the vent nipple until the brake fluid flows through the hose without bubbles. NOTE: Operation C and D may repeat several times
must be made.
6. Check the brake fluid level in the reservoir before venting the next wheel brake cylinder or caliper.
7. Important: Finally check the brake fluid level, fill it up if necessary.

Benefits:
- Condition: brand new
- Withdrawal Guaranteed
- Manufacturer's warranty:24 months warranty
- ready to ship

Notes:
- It is an aftermarket tool, it serves as a replacement of the original tool.
- Instructions are not encased. We recommend a professional installation.
