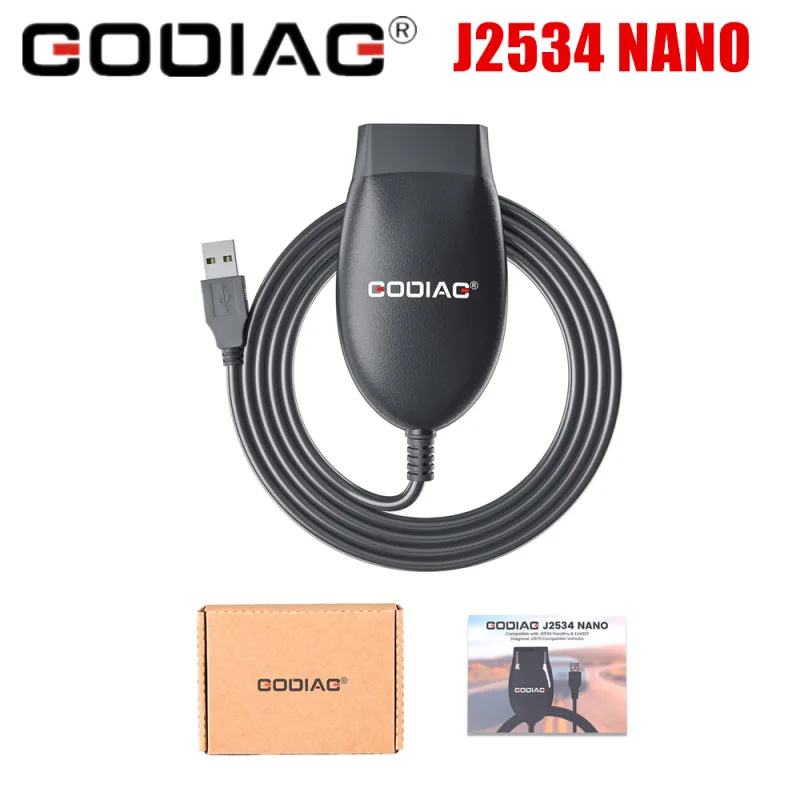

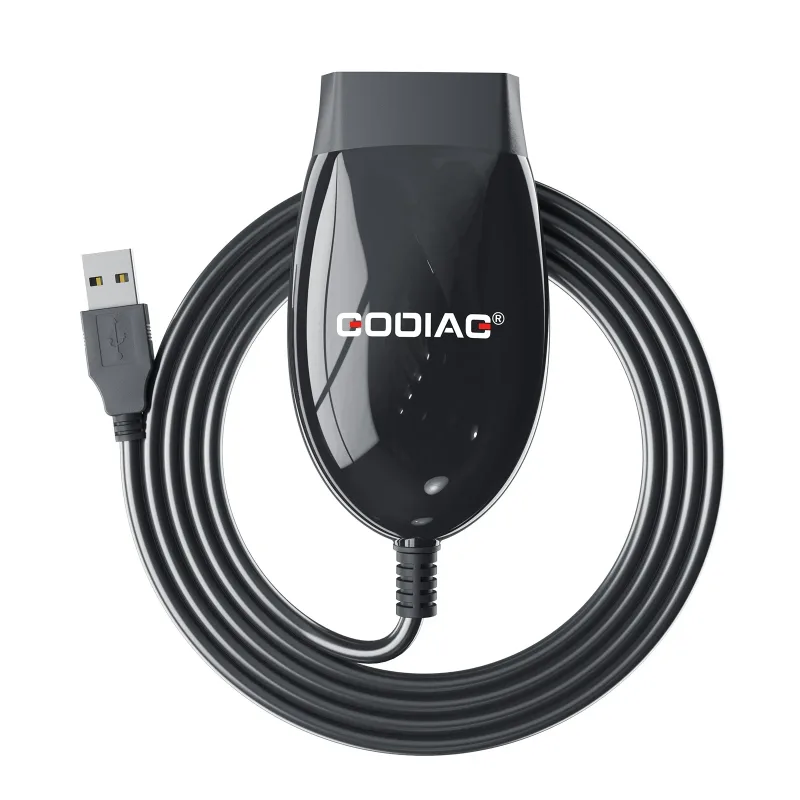

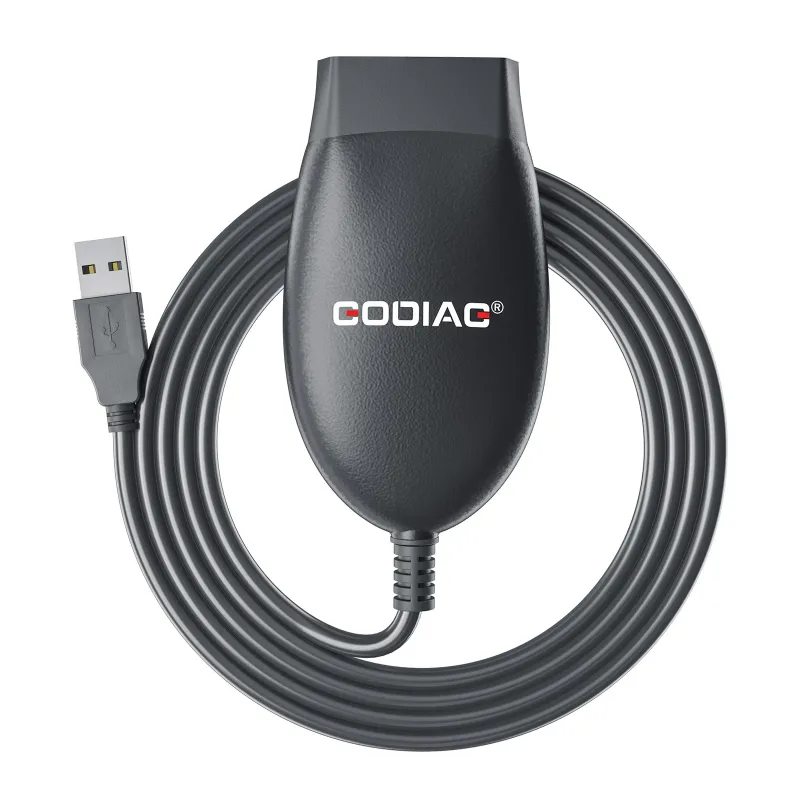

GODIAG GD101 J2534 Passthru Diagnostic Cable for FordMazda/Honda/Toyota/Renault/Forscan/ScanMaster/SDD/PCM-Flash/ELM327/J1979

GODIAG GD101 J2534 Diagnostic Cable Support J2534 & ELM327 Diagnose J1979
Compatible Vehicles for Toyota/ Honda Acura/ ODIS/ Ford Mazda etc

GODIAG GD101 J2534 Highlights:

1. Compatible with for Honda 3.104.024, for Toyota V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0 and for Renault Clip V227,for Renault Clip V230
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.

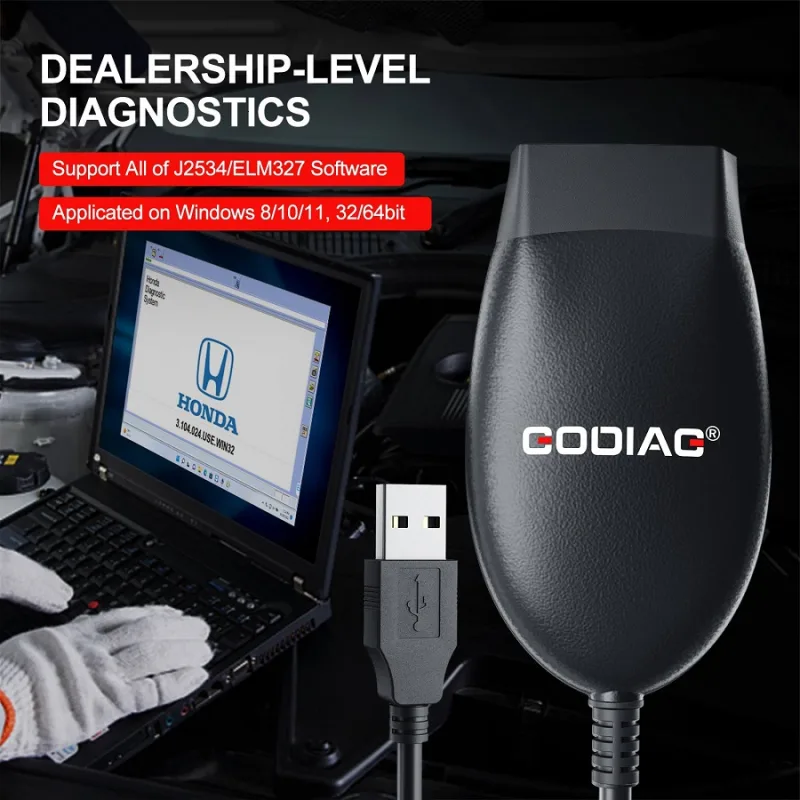

5. Wok on Windows 8/10/11, 32/64bit

GODIAG GD101 J2534 Features:

1. Support most all of J2534 compatible software
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.

Notice:
1. Software Free Download:
Free Download Godiag J2534 V2.3 Software
For Honda 3.104.024, Techsteam V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1, PCM-flash 1.2.0 and VAG ODIS 9.1.0, Renault Clip V227/V230, please contact online customer service on Whatsapp: +86 13995696053.
2. Not Support Win7 System

Supported languages:
for ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese
for Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
for Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
for JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
for Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
for Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

GODIAG GD101 J2534 Protocol Configuration:

1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.5a

GODIAG GD101 J2534 Hardware Configuration:

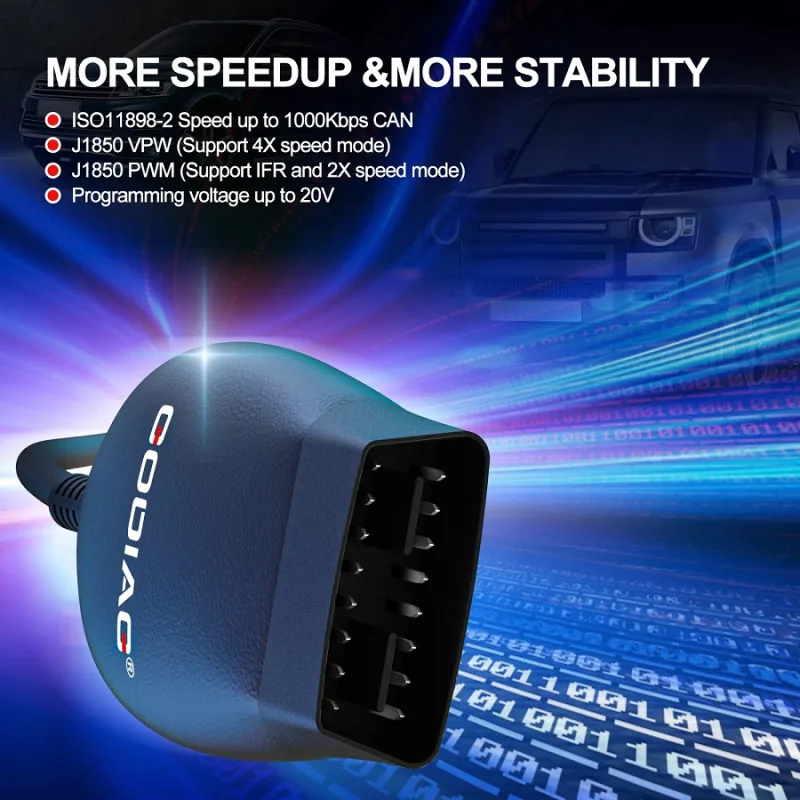

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).

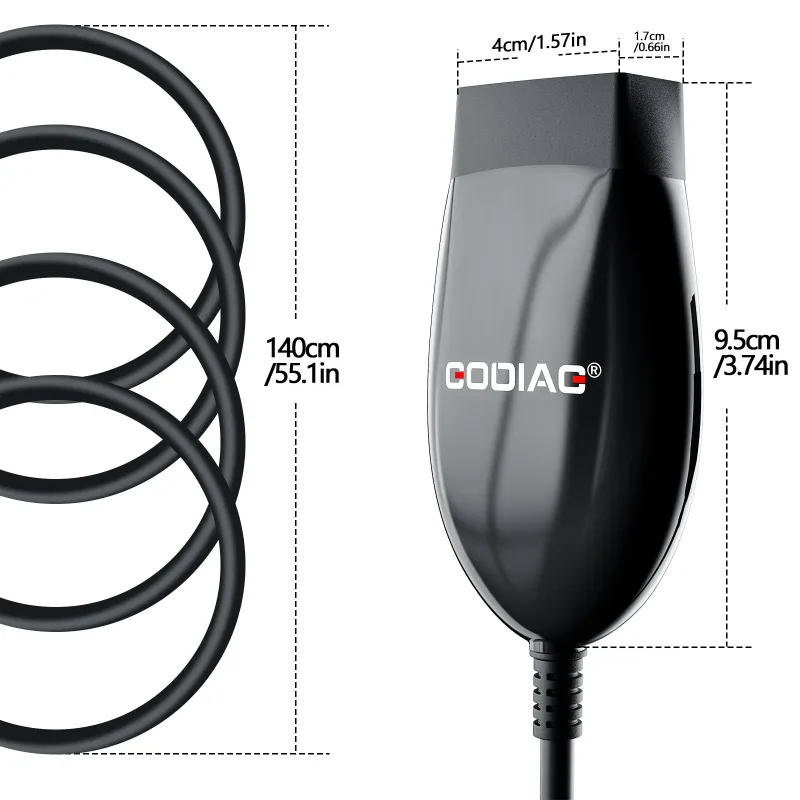

7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0

GODIAG GD101 J2534 Function List:

Software
Brand
Year
NOTE

for Toyota TIS Techstream
for Toyota, Lexus
1995-2022
Free download and activate software, update by link

for Honda HDS 3.102
for Honda Acura
1995-2022
Does not support non-#7 K-line, update by link

for ODIS-S, ODIS -E
for VW Audi Skoda Seat
1995-2022
For J2534 VAG only. Don’t support CAN FD protocol, Don’t support Ignition switch voltage detection

for Forscan 2.3.48
for Ford Mazda Lincoln
1996-2022
Cannot do 3, 11 medium speed CAN

Scanmaster V2.0

1996-2022
Free download and activate software

PCM V1.2.0
67 modules
1996-2022
Yes, test by your side

J1979Tester

1996-2022
Free Honda immo code calculation

ELMConfig

1996-2022
Yes, test by your side

for Volvo VI-DA
for Volvo
1996-2022
Yes, test by your side

for JLR SDD2
for Jaguar Land rover
2006-2016
Yes, test by your side

GDS2
for GM Buick Cadilac Chevlert
1995-2022
Yes, test by your side

for Xentry Passthru
for Benz, Smart
1995-2022
Yes, test by your side

for ISTA-D, ISTA-P
for BMW,…
