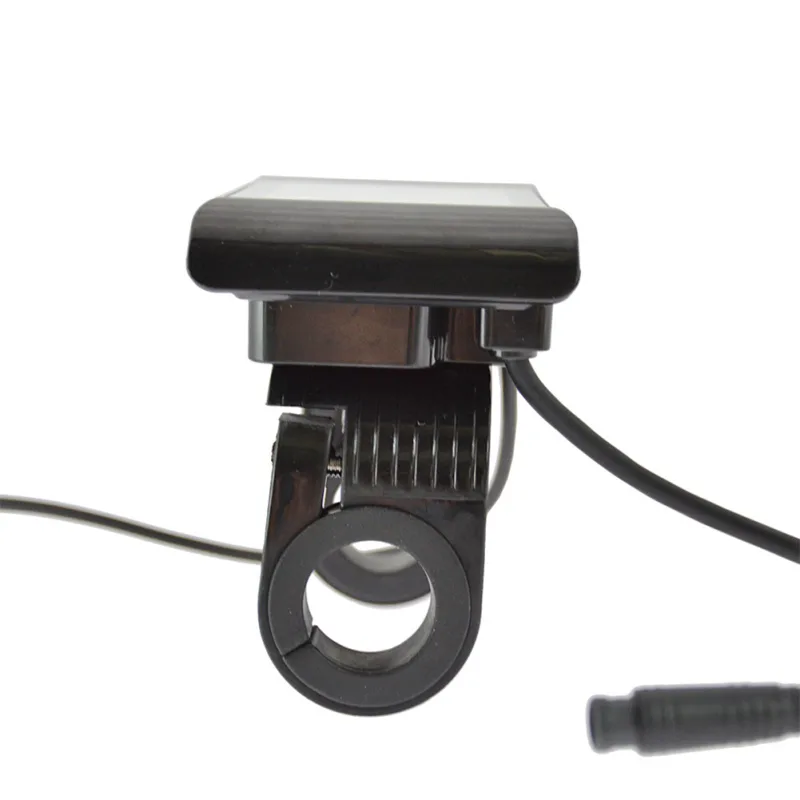

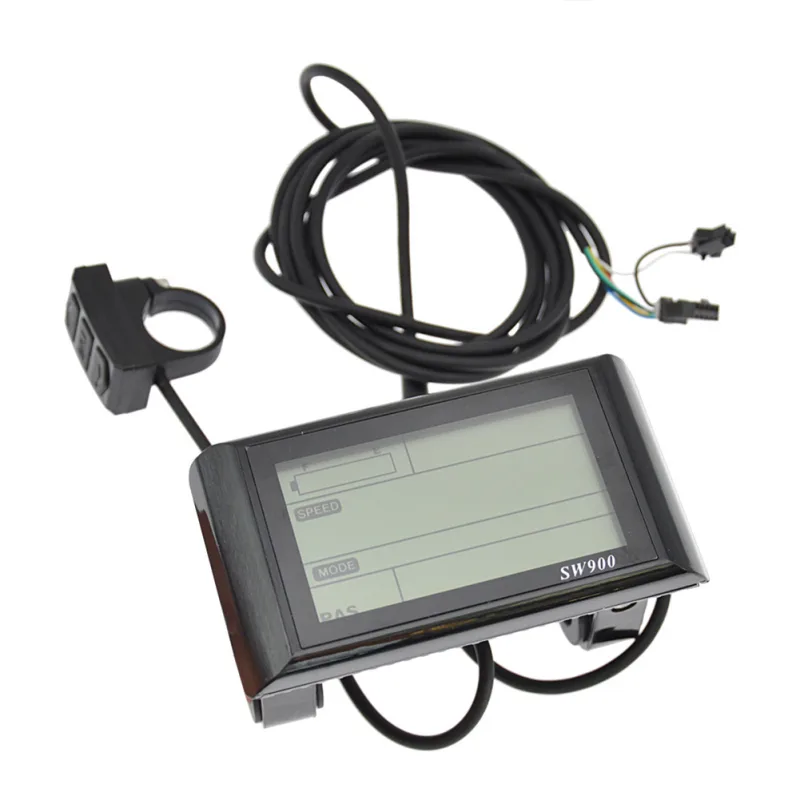

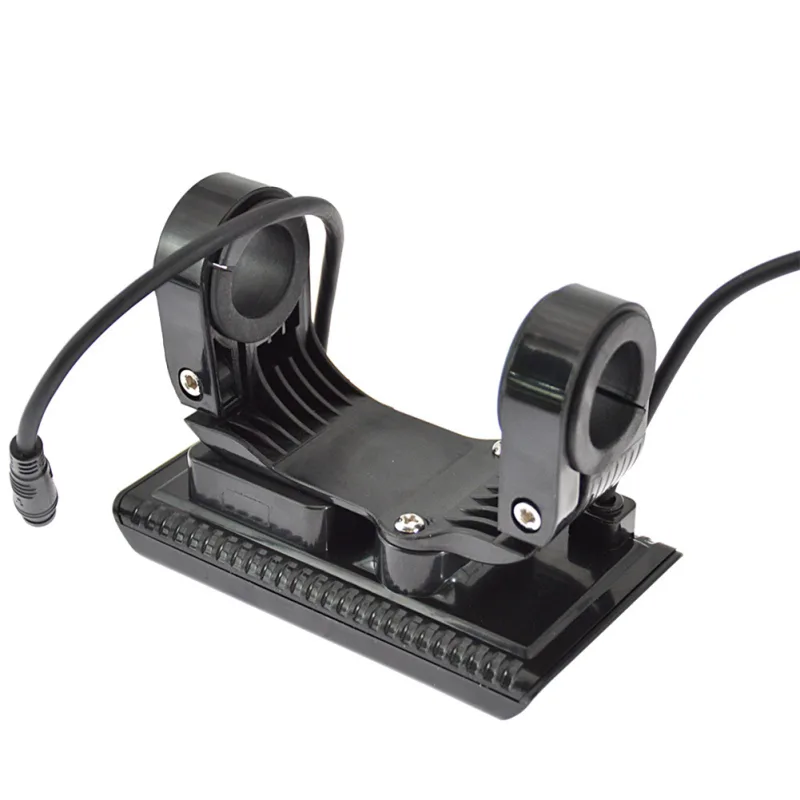

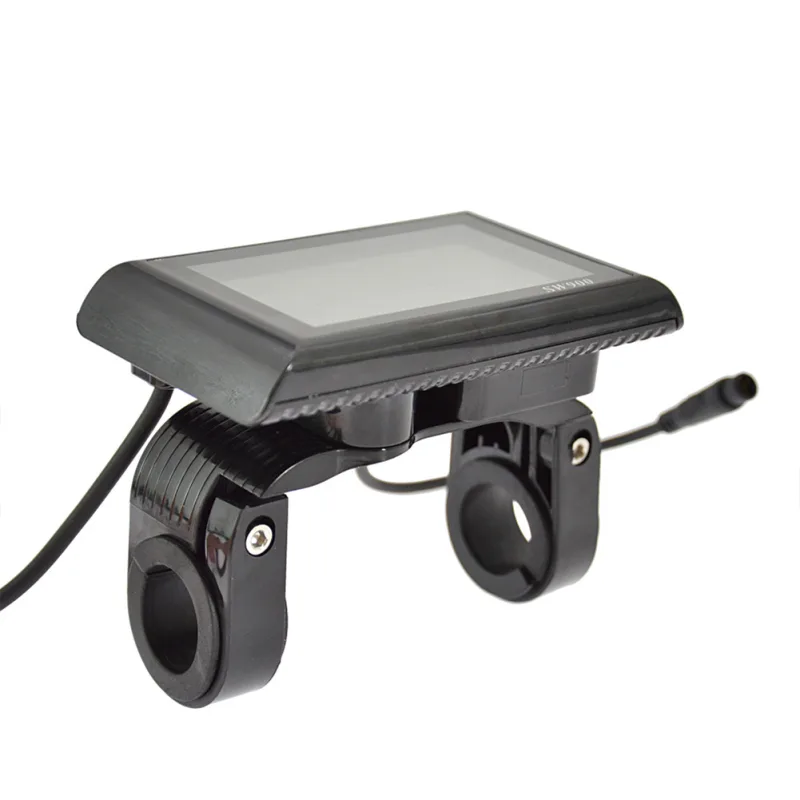

Electric Bicycle Speed Meter Lcd Display Speed Control Meter Bicycle Modification Accessories

Description:
Name: Speed Meter
[Model] SL-SW900YB
[Material]_ ABS+LCD liquid crystal instrument
[Voltage]_ 24V/36V/48V/52V/60V

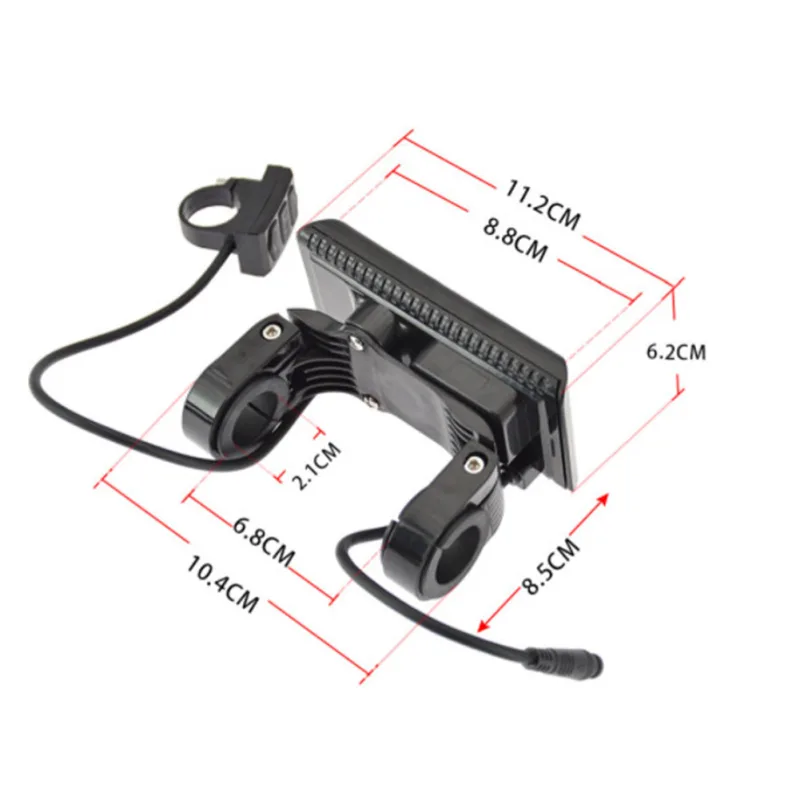

[Specification]. As shown in the figure below (the line length is about 2 meters)
[Weight]_235G
[Packaging] Bubble bag
Color: Black (As picture show)
Material: ABS + LCD
Voltage: 24V, 36V, 48V, 52V, 60V
Plug: Waterproof Plug
Mode: SL-SW900YB
Application: E-Bike Motor Conversion Kit



Features:
(1) Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.

(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

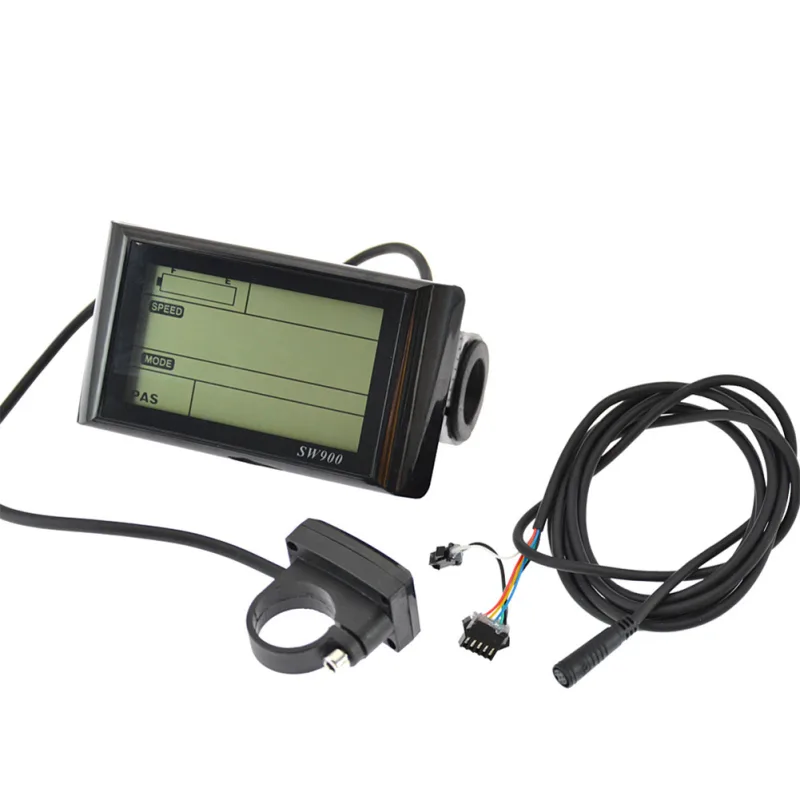

(3) Harness Description:
Red (P+) meter power cord
Blue (VCC) electric door lock wire
Black (GND) negative wire
Green (RX) Meter data receiving
Yellow (TX) Meter data transmission

(4) Meter Setting Function:
①Long press the up and down buttons of the meter to enter the meter settings.
P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.
P02: Mileage unit, 0: KM; 1: MILE.
P03: Voltage level: 24V, 36V, 48V.
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes.
P05: Power assist gear 1-9
P06: Wheel diameter: unit, inch; precision: 0.1.
P07: Number of speed magnets: range: 1-100.
P08: Speed limit: speed percentage range 0-100%, 100 means speed 100%.
P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start.
P10: Drive mode setting 0: power-assisted drive (the handle is invalid).
1: Electric drive (by turning the handle to drive, the power gear is invalid at this time).
2: Power-assisted drive and electric drive coexist at the same time.
P11: Assist sensitivity setting range: 1-24.
P12: Assist start intensity setting range: 0-5.
P13: Power-assisted magnet type setting There are three types of 5, 8, and 12 magnets, of which 5 and 8 are single Hall power-assisted sensors.

②Setting 12 is used for dual Hall assist sensors.
P14: This function is not available yet.
P15: This function is not available yet.
P16: ODO reset setting, Long press the up button for 5 seconds ODO reset



Packing list:
1 x Speed Meter



Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
Manual measuring,please allow 1~3mm error,thank you.

this smart meter communication protocol is No. 2 communication protocol, which must be matched with the controller of No. 2 communication protocol. If you are not sure about it, it is not recommended to purchase it
