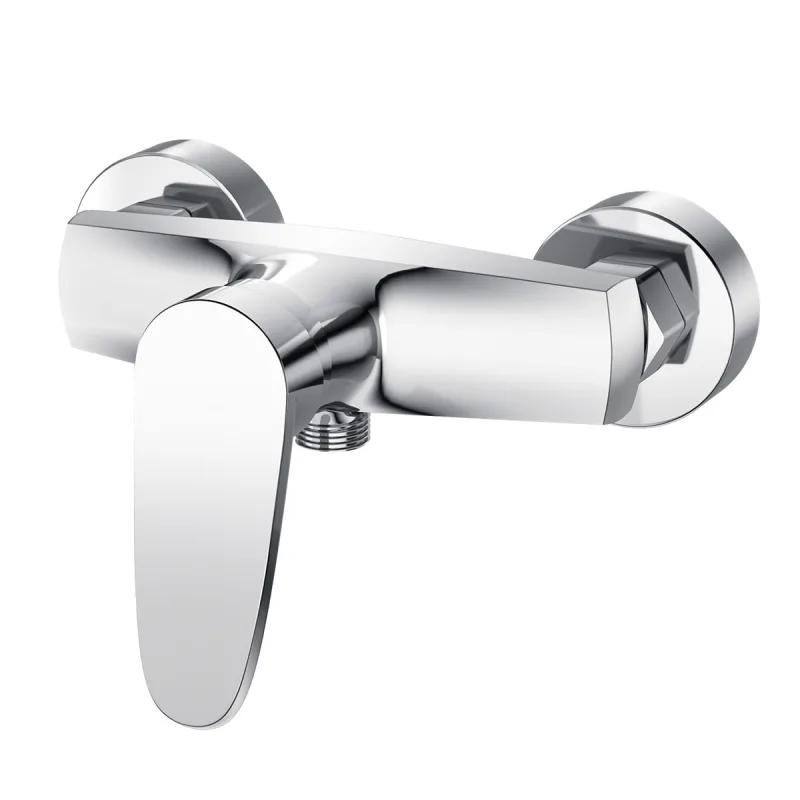

Bathroom Shower Faucet Stainless Steel Single Lever Mixer Valve Tap Hot and Cold Mixing Wall Mounted Bathtub Faucet Brass Chrome

Description:
Equipped with ceramic spool and built-in rubber sealing ring, it has good waterproof structure and is not easy to leakage.
Single Lever: Single lever kitchen taps integrate to control water temperature and flow volume easily.

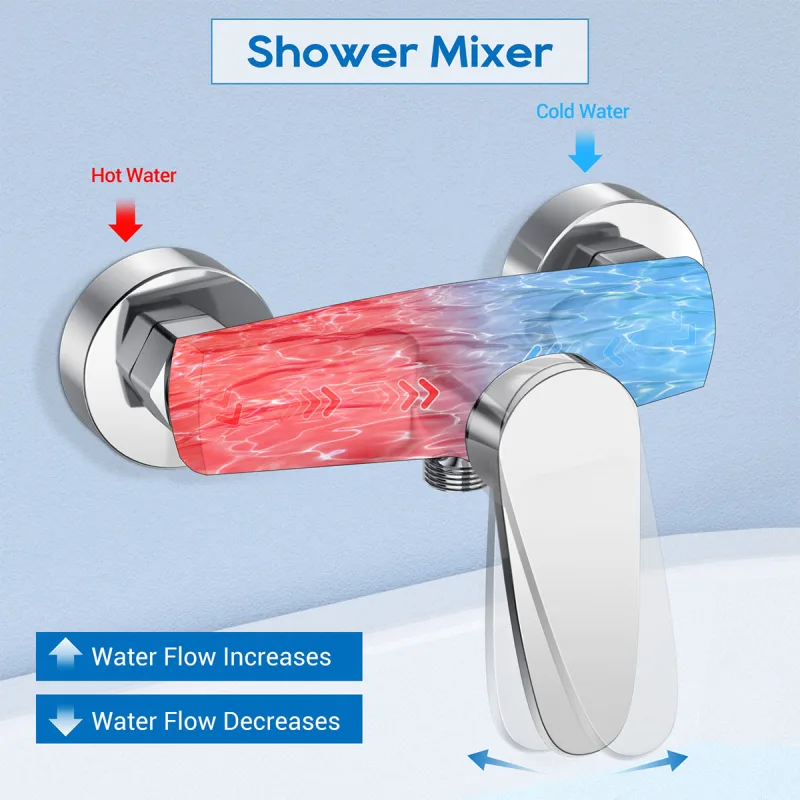

The handle is pulled up to control the water output, and the left and right swings to control the refrigeration water or hot water.
Universal Size: Size of inlet: G 3/4", Size of outlet: G 1/2", Variable Pipe Centres: Adjustable between 135 to 165mm. The shower mixer taps are suitable for most UK bathrooms.
Easy to Install: The package comes with fitting kits, You can install it independently according to the instruction.

Parameters:

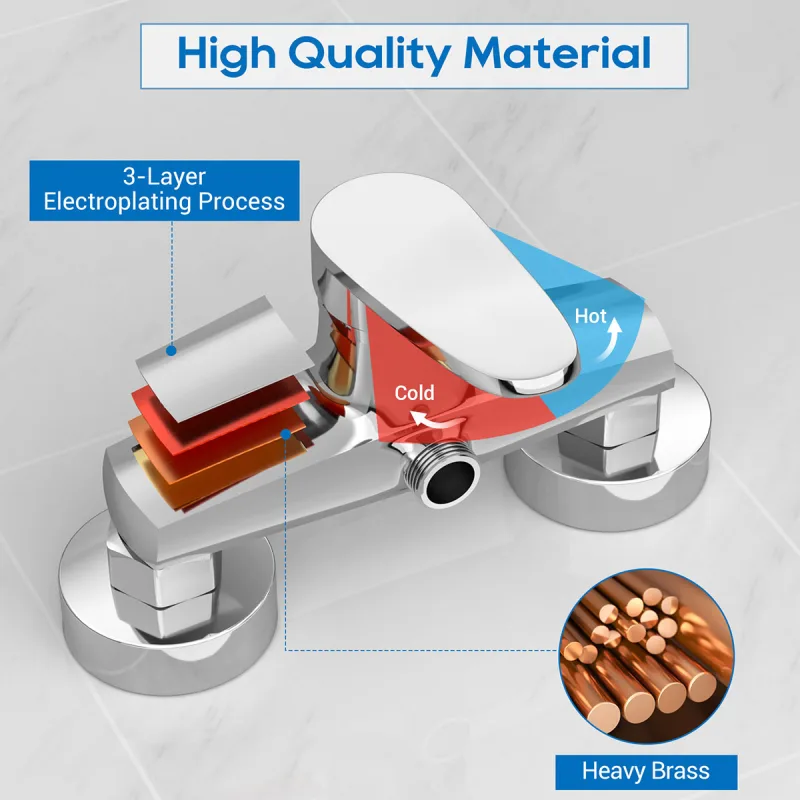

Main body material: brass
Surface treatment: electroplating
Spool type: hot and cold ceramic spool
Water pressure about 1.6Mpa
Lift to switch the outlet: lift the shower outlet, left pull red hot water, right pull blue cold water
Water inlet connected to 6 points (diameter 30mm, that is, the corresponding 3/4 pipe)
Water outlet connected to 4 points (20mm, that is, the corresponding 1/2 pipe)

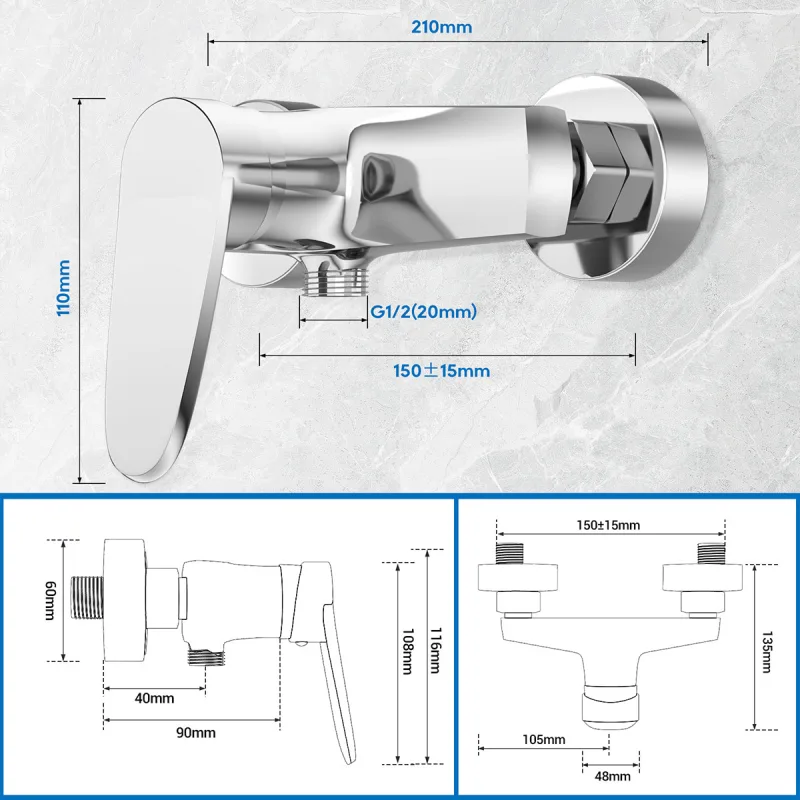

Product size: 18cm * 11cm * 12cm; weight: 695g
Stainless steel decorative cover size: 6cm * 6cm * 2cm; weight: 14g
Single elbow size: 4.3cm*3cm*2.5cm; weight: 40g
Hole distance between water inlet and water inlet: 15cm

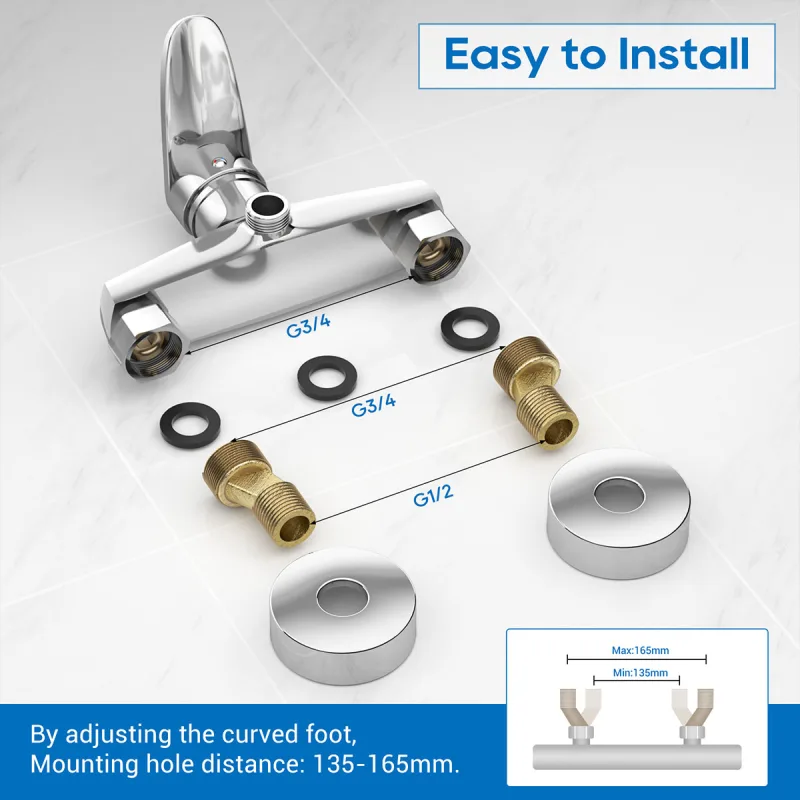

Installation method:
First fix the elbow on the wall;
and then connect the tap body to the wall elbow;
And then connect the connected faucet to the 4-minute mouth of the shower;
Finally, just tighten the fittings;

Packing list:
1 X Bathtub shower facing down faucet
3 X black washers
2 X Stainless steel decorative cover
2 X S elbow
2 X Bag
1 X Instruction manual
