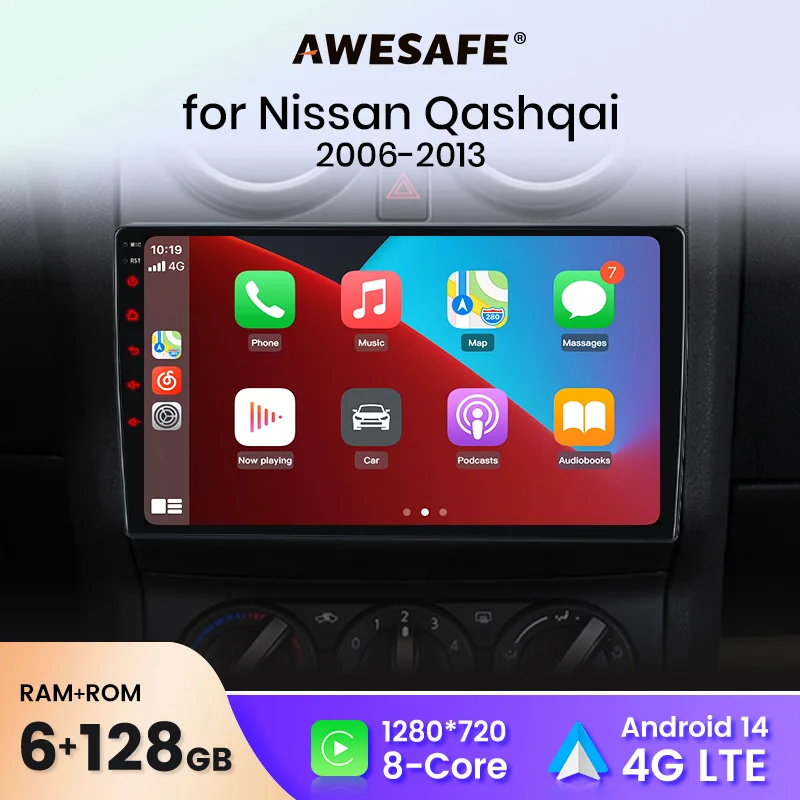

AWESAFE Wireless CarPlay Android Auto Car Radio Stereo For Nissan Qashqai 2006 2007 2008-2013 Car Intelligent Systems BT FM RDS Plug & Play SWC UK Shipped

Attention ！

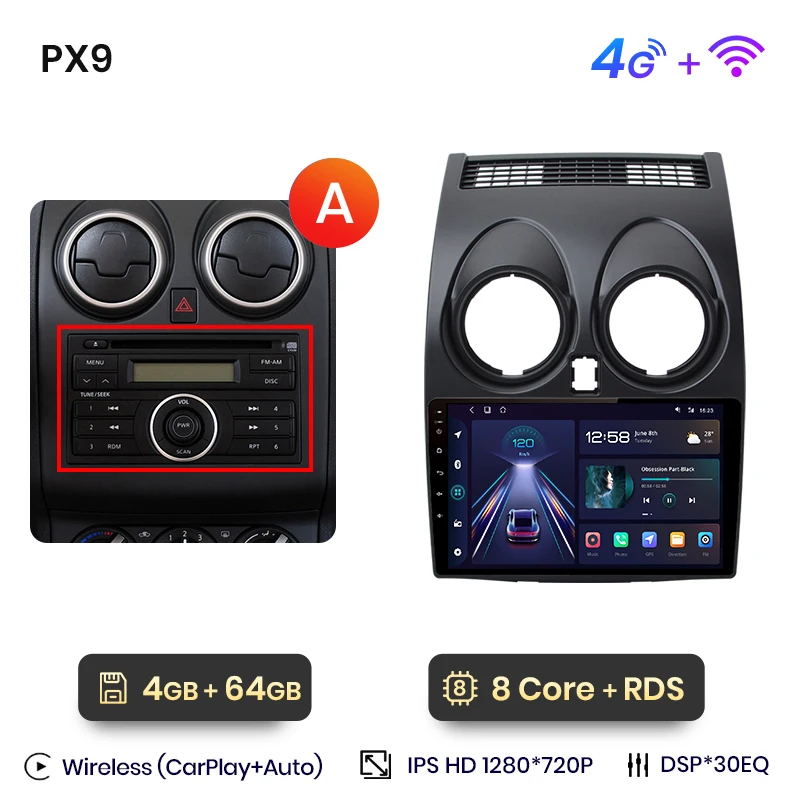

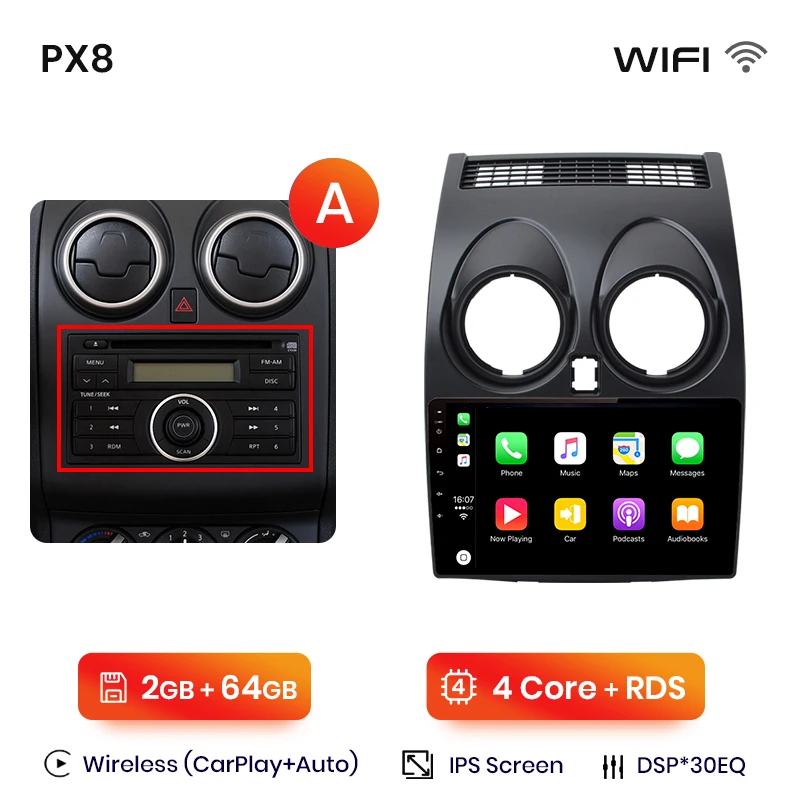

1.if your original radio with small screen as the picture, then choose "A";

2. if your original radio with big screen and come with navigator, amplifiers,rear view cameras, etc, choose "B" version,

AWESAFE radio Function for Nissan Qashqai 2006-2013
>> Basic functions:

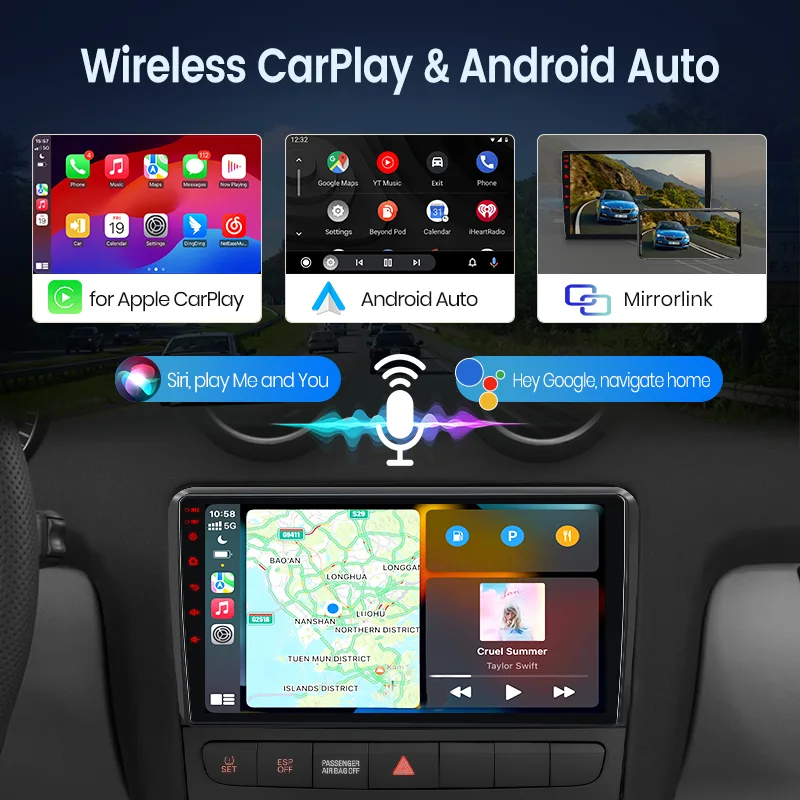

1, Android 12 + Built-in Wireless Carplay/ Android Auto ;
2, IPS HD 1280*720P Screen, deliver a clearer and more vibrant picture;
3, Octa Core 1.6GHZ + DDR3 (1GB/2GB/4GB/6GB) Flash + (16GB/32GB/64GB/128GB) Memory ;

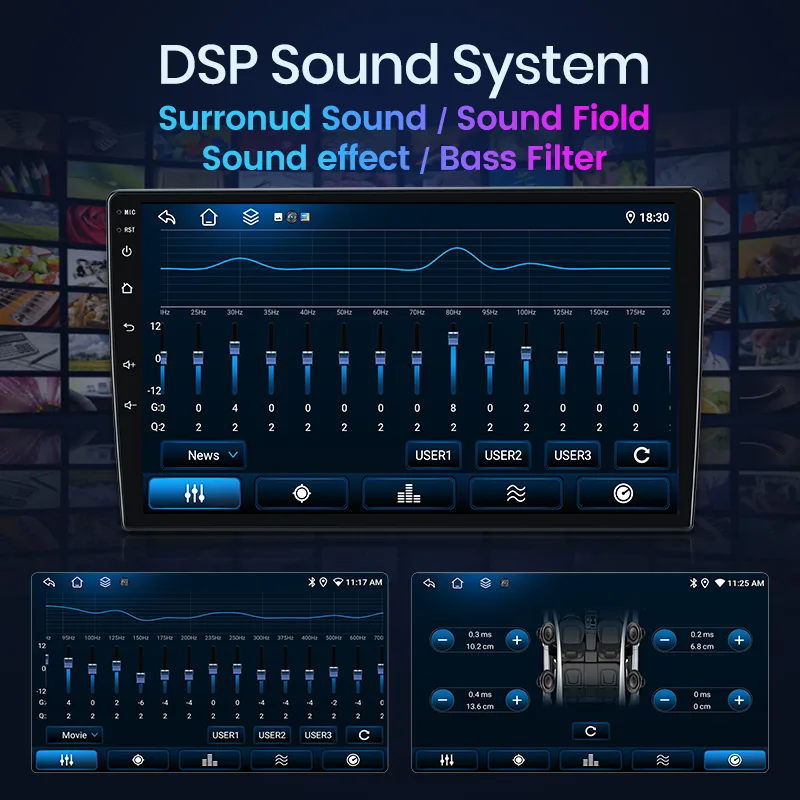

4, 4G Network + Steering Wheel Control + RDS +Built-in Navigation Offline Maps + High-quality DSP chip makes the sound quality playback even better;
5, AWESAFE radios' power cable is pin to pin, can be directly connected to the car power interface, easy to install.

>> Optional accessories:
1, AHD Rear Camera: Higher video resolution and stable transmission;
2, ADAS & GPS Tracer DVR: You can check tracking information and parking location on your phone;
3, Tire Pressure Monitoring: Automatically update tire pressure and temperature to ensure your driving safety;
4, OBD2: More accurate detection and repair of vehicle problems;
5, External Microphone: Support for connecting microphones with 3.5mm port;
6, DAB+: Using digital signal transmission, it can provide more stable and clear audio effect.

Reduce manual screen touchin during driving,
interesting interaction

YouTube, VK, Twitter, Skype, Facebook, Messenger, Linkedln,
Navitel, IGO Navigation, Spotify, Yandex, Yandex Map,
Waze, Google, Google Map, Netflix, Instagram

When the car shifts into reverse, the screen will switch to the rear view with parking lines automatically, help you to back up or park the car.
(The rear camera in the picture below is optional and better than normal.)

You can use navigate and other applications at the same time, such as listening to music or turning on ADAS functions ect.

Support up to 2TB hard-disk

Promotes Safe Driving
ADAS System Distance warning
lane departure warning

Warm and important tips:
1). The device need to search satellite success first time, then it will update time,

1. How to use Carplay and Android Auto?

Carplay ：
Both of them are wired, and only can be connected with the 4Pin (with 4 small hole ) USB port, then click the APP ""Phonelink"" or ""Tlink"" in the radio;
Android Auto：
After purchasing the activation code, the customer service staff will send you the operation method and the activation code

2. How to set steering wheel controls?

1) If there is no canbus, please follow the steps below
①1+16GB：Clik Settings Control icon,as the picture shows
https://ae01.alicdn.com/kf/Hdd515243bc65428b89fec0f2f27828ccc.jpg

②2+32GB：Clik Control icon,as the picture shows
https://ae01.alicdn.com/kf/H5d52012903cb4a58a6d8347cbb76d2efE.jpg

2)if there is canbus in the package,please connect canbus first
（⚠Please note that the Canbus cable needs to be connected, not only to connect to Canbus, but also to connect to the back of the machine with another 8pin cable.）
then follow the steps below
①1+16GB：
Settings →factory→3368→Car Model→choose right car information→reboot
As the picture shows：
https://ae01.alicdn.com/kf/H6a1a227be2cf4e248dd1a0a5e274caf0F.jpg

②2+32GB：
Settings →system→Car Settings→8888→Model choose→choose right car information→reboot
As the picture shows：
https://ae01.alicdn.com/kf/He3da309960684f91b1ecbb192b7cde9c6.jpg

3.How to change the Boot Logo ?

1+16GB：: Click System Settings----Extended Settings----Enter the password 3368

2+32GB: Click System Settings----Factory Settings----Enter the password 8888

4.How to connect the rear camera ?

1)Red cable ① is connected to the backup light ""+""

2)black cable ② is connected to the backup light ""-""

3)The reversing detection cable ④（Brown color and pink）is connected to the red cable ③ which extending from the video input cable

4)⑤ cable does not need to be connected
