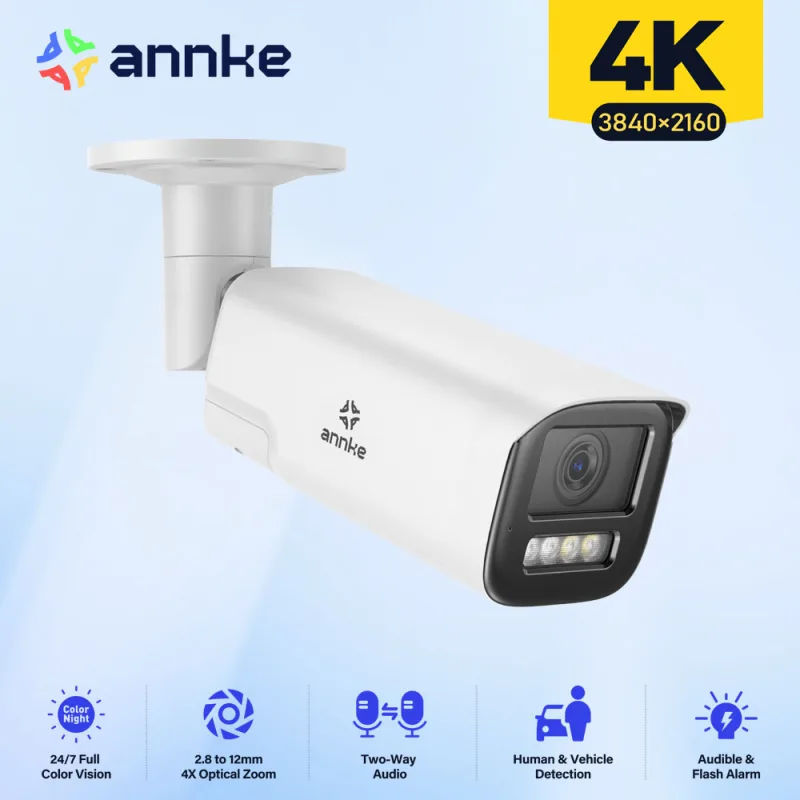

ANNKE 4K 4X ZOOM Smart Dual Light Varifocal Network Camera IP Camera IP67 Human Vehicle Detection 8MP Smart Home Cam

★ 4K smart dual light varifocal bullet network camera
★ 2.8 to 12mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Night vision up to 50m
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Provide real-time security via built-in two-way audio
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V

IP Camera

Camera
Image Sensor
1/2.4" Progressive Scan CMOS

Max resolution
3840*2160(8MP)

Main Stream
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Substream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate
32 Kbps - 16 Mbps

Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC

Built-in Microphone
Record with audio, environment noise filtering

Built-in Speaker
Max. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB.

Lens
2.8 to 12 mm motorized varifocal

DORI
D: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m

Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of View
Horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°

Supplement Light Type
Smart Dual-Light, IR, White Light

Supplement Light Range
Up to 50 m

Motion detection 2.0
Supoort, include Human & Vehicle detection

Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light

Image Enhancement
BLC, HLC, 3D DNR

Wide Dynamic Range
120 dB WDR

Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

API
Open Network Video Interface Version (Profile S, Profile T, Profile G),ISAPI

Region of Interest (ROI)
1 fixed region for main stream

Privacy Mask
4 programmable polygon privacy masks

General Function
Rotate mode, mirror, password protection, remote access

Web Browser
Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

APP
PC: Windows, Mac OS; Smartphone: iOS, Android

Ethernet
1 RJ45 10 M/100 M self-adaptive Ethernet port

General
Housing
Metal & Plastic

Color
White

Storage
Built-in microSD/SDHC/SDXC Slot, up to 512 GB

Hardware Reset
Yes

Operating Power
12 VDC ± 25%, 0.9 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W

Operating Conditions
-22 °F – 140 °F/-30 °C – 60 °C.Humidity 95% or less (non-condensing)

Indoor/Outdoor Use
Indoor/Outdoor

Interface Protection
IP67

Dimension (L X W X H)
105 mm × 285.8 mm (Ø4.13" × 11.25")

Weight
Approx. 805 g (1.8 lb.)
