About this item
Product Description

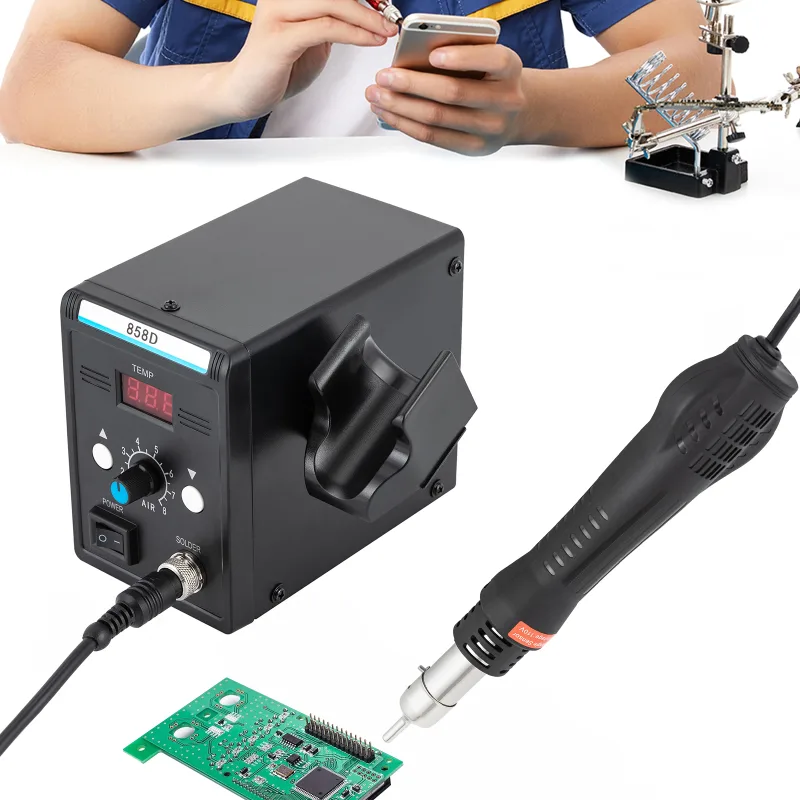

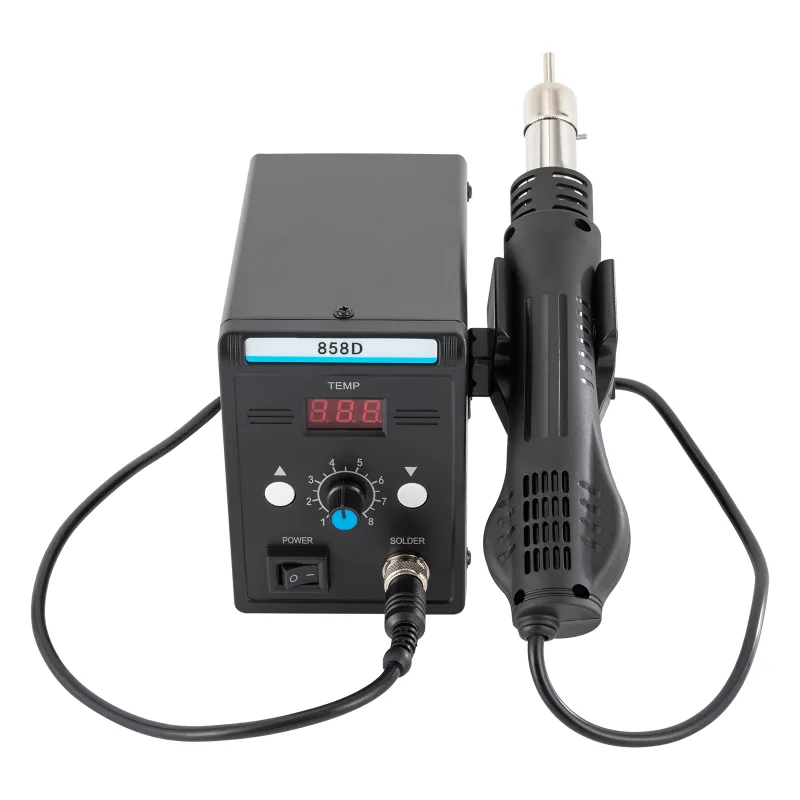

SMD welding technology is one of the essential technologies in the field of modern electronic component production and maintenance, and our 858D powerful hot air rework station with a hot air gun, 3 hot air nozzles, and power supply is an ideal choice. It features precise control, simple operation, an LED digital display, high quality, stable performance, and powerful accessories, bringing you a professional soldering experience.
Key Features
Premium Hot Air Gun——Soft air design allows for hot-sensitive SMD work or reflow soldering, and the surrounding plastic parts will not be deformed. The inner overheat protector protects the SMD components and hot air gun from high temperatures (212~932°F) )damaging and makes the device handle a variety of tasks.
Adjustable Design——You can adjust the air speed in 1-8 gears by rotating the adjustment knob and adjust the temperature by pressing the white buttons to meet different needs.
Fast Heating——The PID temperature control technology quickly detects&corrects the actual temperature and maintains a rapid heat temperature rising within 3-5s, making the temperature compensation fast with small error(33.8°F), ensuring efficient work, and bringing you a better soldering experience.
Stable Performance——With the superior high-power transformer that adopts thickened wires and high-quality silicon steel sheets, this machine has stable output performance. Additionally, the advanced microcomputer processors and SMD technology allow for more consistent use.
Strong Air Volume——It adopts a brushless turbine fan with a PTC ceramic heating core and 31.7GPM air volume, making the heating and cooling process faster and more efficient. The spiral air outlet allows for soft&even air-out and even heating.
Intelligent Temperature Memory——Return to the working mode, turn on the hot air station, and pick up the hot air gun, and you can work directly without selecting the appropriate working temperature again.
Built-in Angle Sensor——The built-in induction switch of the hot air gun allows for automatically entering a standby mode when the air outlet is facing up and rapid reheating when it is facing down.
Efficient Heat Dissipation——The heat-sink holes on the machine ensure the heat during operation can be discharged at a faster speed to protect the motor from being burned out due to long-term use.

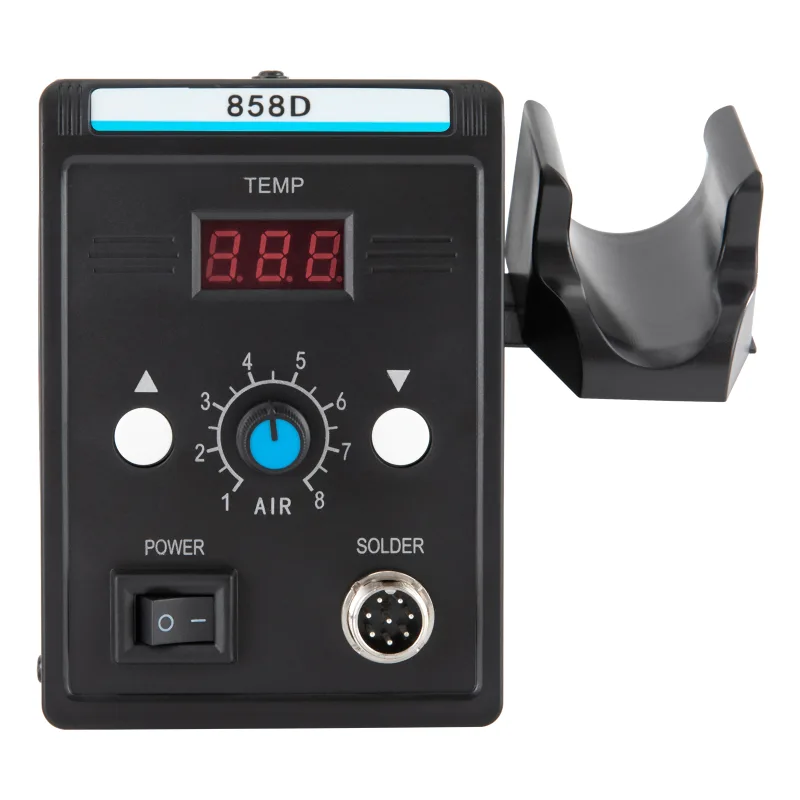

Simple Operation——The large LED microcomputer digital display clearly shows temperature information, along with the easy-to-control knob, switch button, convenient plug, complete accessories, and an English manual, so that you can easily operate the machine.
Specifications
Model: 858D
Color: Black
Material: Steel
Style: Modern
Shape: Rectangular
Power Source: Corded Electric
Plug: EU Standard
Temperature Display: LED Microcomputer Digital Display
Fan Type: Brushless Turbine Fan with Gentle Wind
Heat Element: PTC Ceramic Heating Core
Input: 220V
Power: 700W
Noise: <45db
Tip to Ground Resistance: ＜2Ω
Tip to Ground Voltage: ＜2mV
Fuse: 5*20mm/0.2*0.78inch 5A
Max. Air Volume: 120L/min, 31.7GPM
Temperature Stability: ± 1°C/33.8°F
Adjustable Temperature Range: 100~500°C/212~932°F
Nozzle Diameter: 5mm/0.2inch, 8mm/0.3inch, 10mm/0.4inch
Hot Air Gun Length(Line Included): 1.2m/3.9ft
Multi-Station Size: 15.3*9.6*13.8cm/6*3.78*5.4inch
Package Size: 27*18*20cm/10.6*7*7.8inch
Net Weight: 1.6kg/3.5 lbs
Gross Weight: 2kg/4.4 lbs

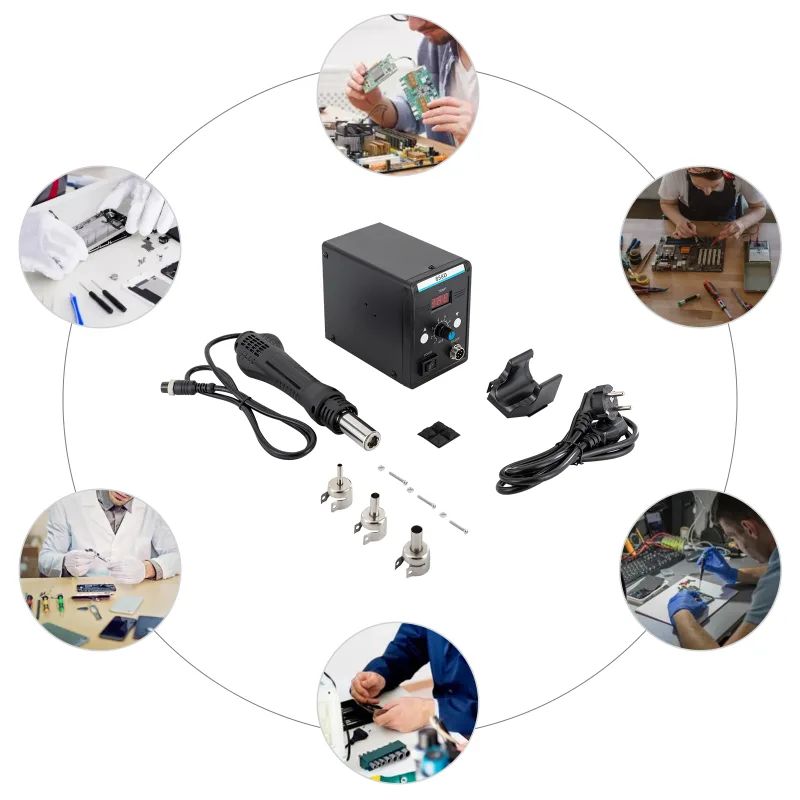

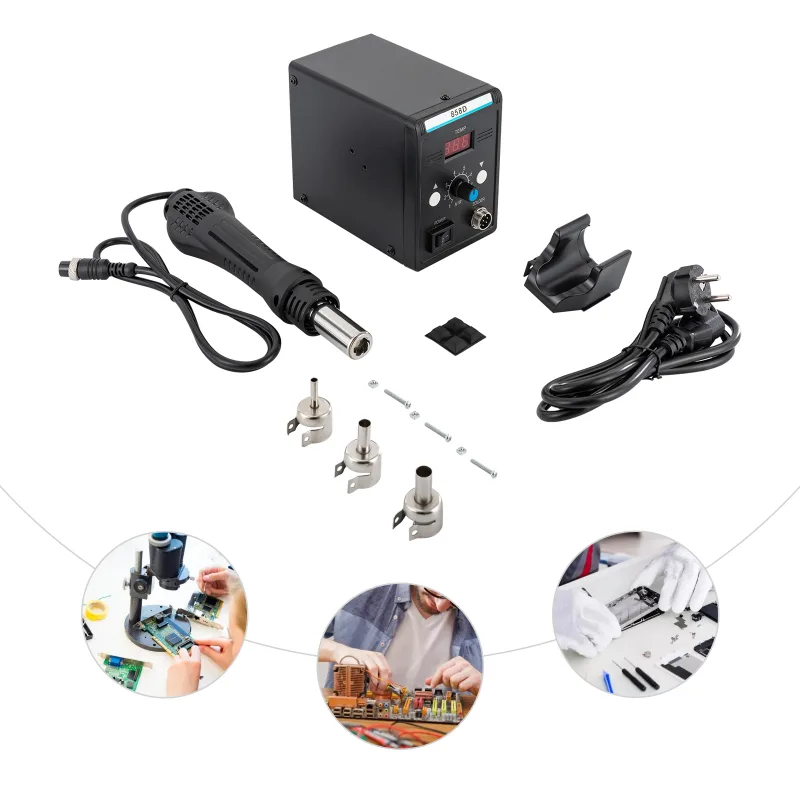

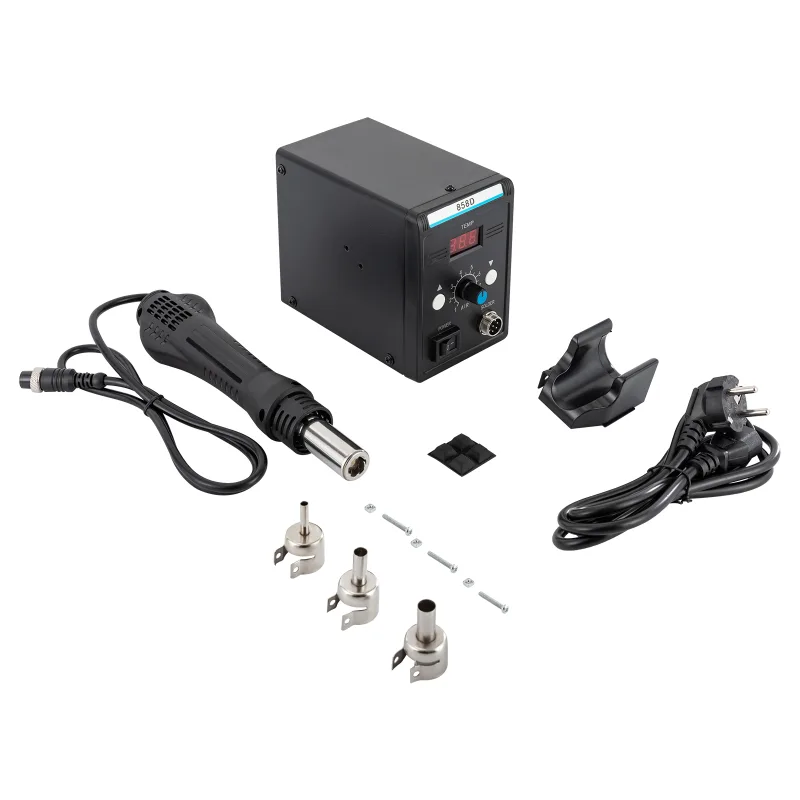

Package Included
1* Hot Air Rework Station
1* Hot Air Gun
1* Gun Holder
3* Hot Air Nozzles
1* Power Cable
1* English Manual
Other Accessories for Installation
Details
Ergonomic Handle: The flame retardant handle of the hot air gun will give you a comfortable grip, reduce the chance of slipping&dropping, provide insulation, and reduce hand fatigue.
Three Air Nozzles: The 3 equipped air nozzles(0.2"/0.3"/0.4" in diameter) allow for convenient replacement, ensure wider usage, and save you money without additional purchase.
Anti-skid Foot Mats: The anti-skid foot mats effectivel…
